Wheel Hub: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. NOTE: The inner wheel hub seal surface should be clean of all foreign material before installation.

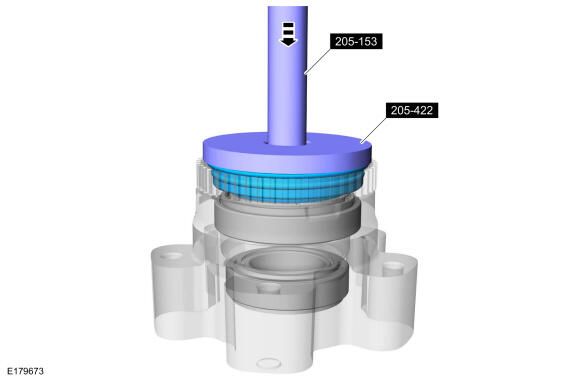

    Using the special tools, install the new inner wheel hub seal.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-422 Installer, Wheel Hub Oil Seal (10 1/2).

    GFD836868Courtesy of FORD MOTOR COMPANY

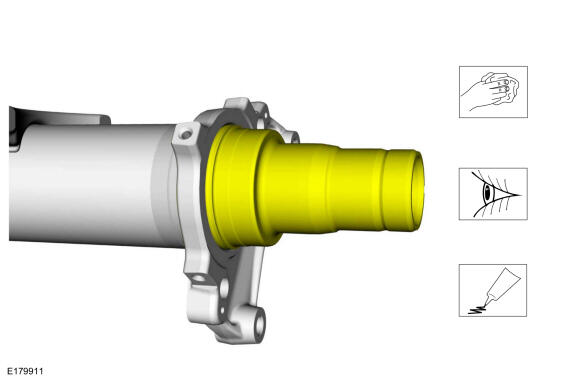

  2. Clean and inspect the hub spindle. Coat the hub spindle with clean axle lubricant.

    Material: Gear/Transmission Fluid - 75W85 (WSS-M2C942-A)

    GFD836875Courtesy of FORD MOTOR COMPANY

    Vehicles with Drum In Hat Parking Brake

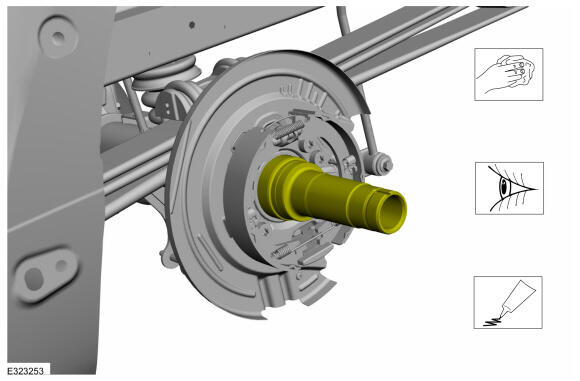

  3. Clean and inspect the hub spindle. Coat the hub spindle with clean axle lubricant.

    Material: Gear/Transmission Fluid - 75W85 (WSS-M2C942-A)

    GFD836876Courtesy of FORD MOTOR COMPANY

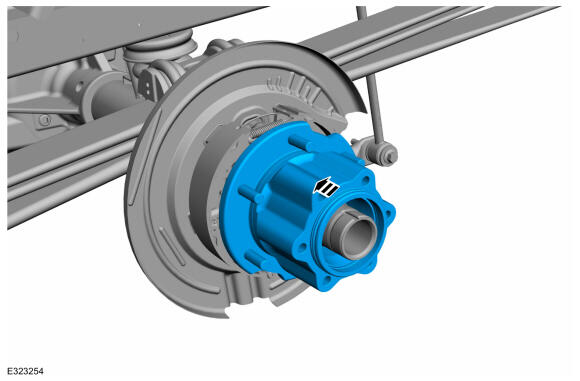

  4. Install the wheel hub.
    GFD836877Courtesy of FORD MOTOR COMPANY

    All vehicles

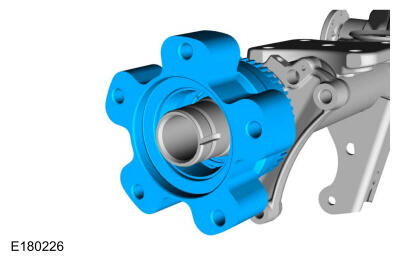

  5. Install the wheel hub.
    GFD836878Courtesy of FORD MOTOR COMPANY
  6. NOTE: The wheel hub bearings must be prelubricated with grease prior to installation. Pack each bearing with a bearing packing tool. Also apply grease to the thrust surface of the bearing.

    Install the outer wheel hub bearing.

    GFD836872Courtesy of FORD MOTOR COMPANY
  7. NOTE: SRW shown, others similar.
    NOTE: The wheel hub nuts are RH thread (right hub), and LH thread (left hub).

    LH shown RH similar.

    NOTE: Always apply inward pressure when tightening or loosening the hub nut.
    NOTE: Rotate the wheel hub occasionally while tightening the hub nut.

    Using the special tool, install the hub nut.Use Special Service Tool: 205-1007 Socket, Axle Nut.

    Torque: Stage 1: 95 Nm Stage 2: Loosen: 180deg. Stage 3: 34 Nm

    GFD836871Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with Drum in Hat

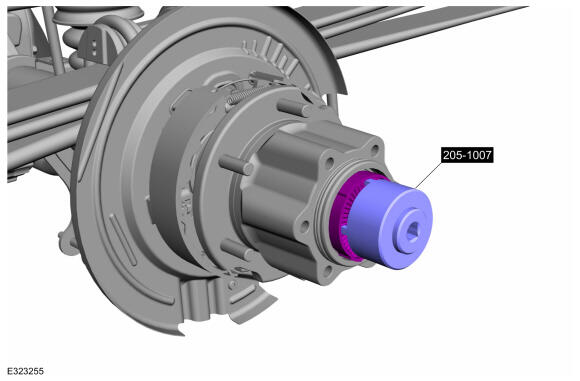

  8. Using the special tool, install the wheel hub nut.Use Special Service Tool: 205-1007 Socket, Axle Nut.

    Torque: Stage 1: 88 Nm Stage 2: Loosen: 180deg. Stage 3: 34 Nm

    GFD836879Courtesy of FORD MOTOR COMPANY

    All vehicles

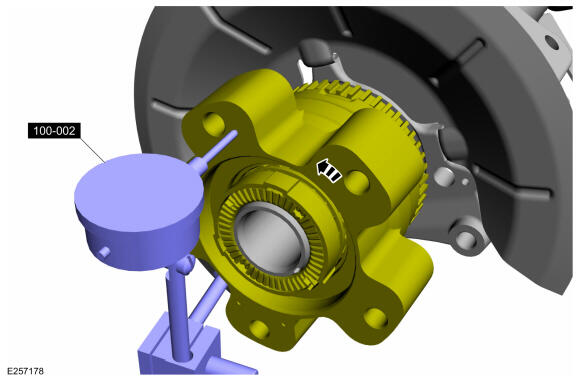

    • Zero the Dial Indicator Gauge with Holding Fixture.

    • Place the dial indicator tip on the outboard surface of the wheel hub and verify there is no side-to-side end play.

    GFD836880Courtesy of FORD MOTOR COMPANY
  10. Install the brake disc. Refer to: REMOVAL AND INSTALLATION
  11. Check the differential fluid level. Refer to: Differential Fluid Level Check .
