Differential Fluid Level Check
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Gear/Transmission Fluid - 75W85 | WSS-M2C942-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING .
- Remove the differential fluid fill plug.

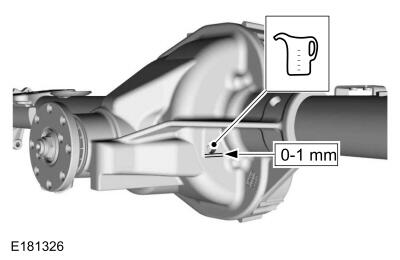

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 0-1 mm from the fluid level fill plug opening (bottom edge). Refer to: Specifications
Material : Gear/Transmission Fluid - 75W85 (WSS-M2C942-A)
- Install the differential fluid fill plug.
Torque : 51 Nm
