Differential Housing Cover: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

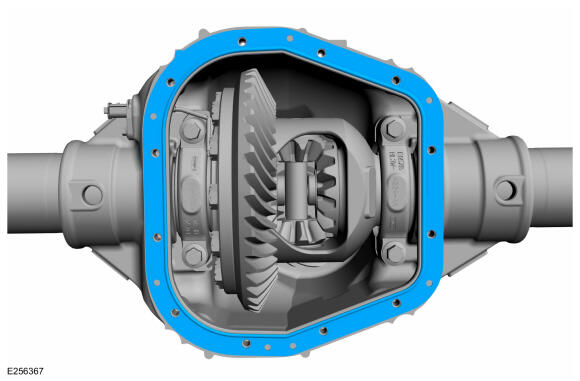

  1. NOTE: Make sure that a new component is installed.

    Install the new gasket between the axle housing and the differential housing cover mating surface.

    GFD836772Courtesy of FORD MOTOR COMPANY
  2. Install the differential housing cover, the differential housing cover bolts and the differential housing cover stud bolts.

    Torque : 45 Nm

    GFD836769Courtesy of FORD MOTOR COMPANY
  3. Attach the wheel speed sensor wire harness retainers to the differential cover stud bolts.
    GFD836768Courtesy of FORD MOTOR COMPANY
  4. Fill the differential with fluid. Refer to: Axle and Differential Draining and Filling
