Axle and Differential Draining and Filling
WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Friction Modifier | EST-M2C118-A |
| Gear/Transmission Fluid - 75W85 | WSS-M2C942-A |
Draining
- Drain the differential gear lubricant. Refer to: Differential Housing Cover
.
Filling

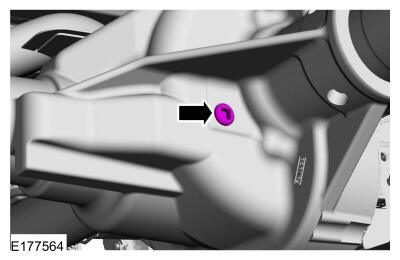

- Remove the differential fill plug.

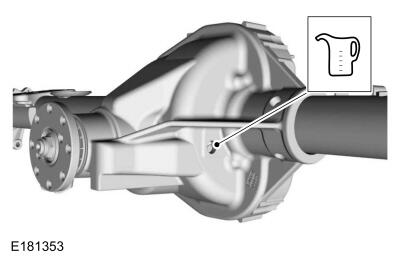

- If equipped with a conventional differential. Fill the differential with clean differential gear lubricant. Refer to: Specifications
Material : Gear/Transmission Fluid - 75W85 (WSS-M2C942-A)
- If equipped with a Limited-Slip differential. Fill the differential with clean differential gear lubricant. Refer to: Specifications
Material : Gear/Transmission Fluid - 75W85 (WSS-M2C942-A)
- If equipped with a Limited-Slip differential. Fill the differential with clean friction modifier. Refer to: Specifications
Material : Friction Modifier (EST-M2C118-A)
- Install the differential fill plug.
Torque : 51 Nm
