Transfer Case Rear Seal: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

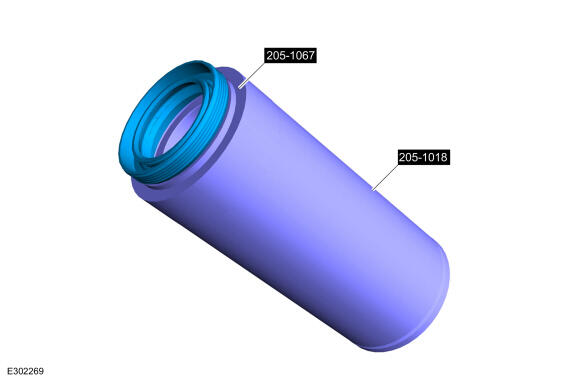

Install the special tool to the seal.Use Special Service Tool: 205-1018 Installation Tube., 205-1067 Installer, Output Shaft AWD.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure a new seal is used.

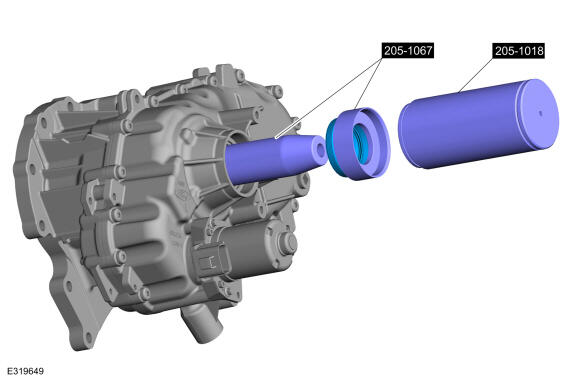

Using the special tool, install a new transfer case rear seal.Use Special Service Tool: 205-1018 Installation Tube., 205-1067 Installer, Output Shaft AWD.

Courtesy of FORD MOTOR COMPANY

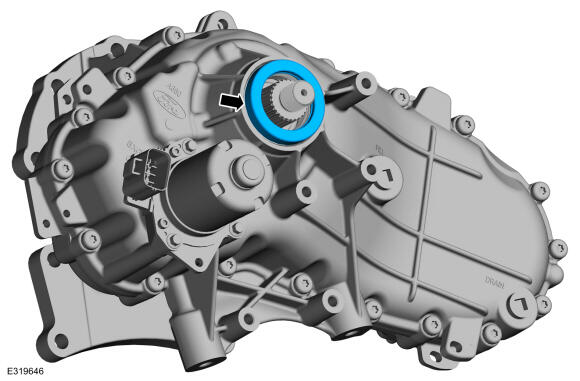

Install the transfer case rear output shaft seal dust cover.

Courtesy of FORD MOTOR COMPANY

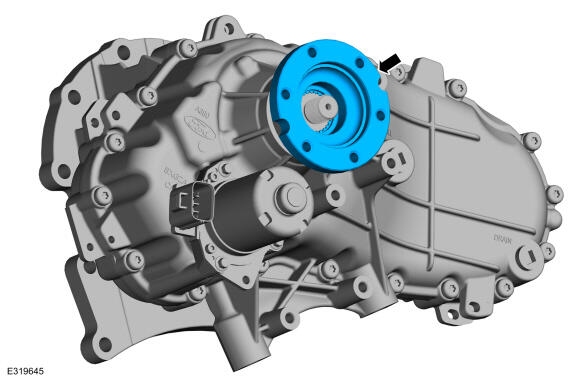

Intsall the transfer case output flange.

Courtesy of FORD MOTOR COMPANY

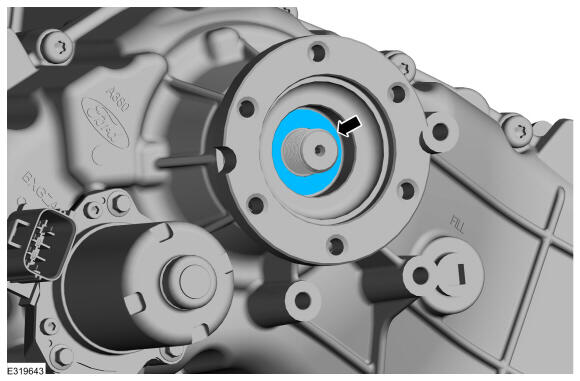

Install the output flange seal.

Courtesy of FORD MOTOR COMPANY

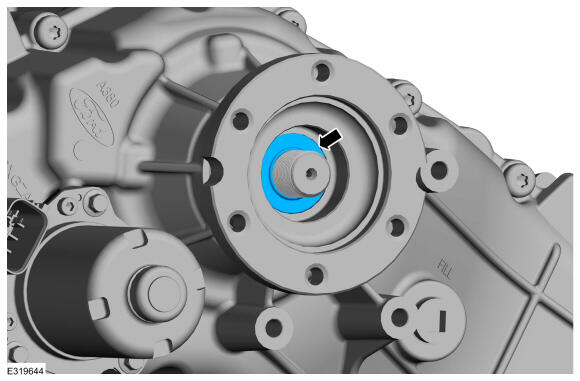

Install the output flange spacer.

Courtesy of FORD MOTOR COMPANY

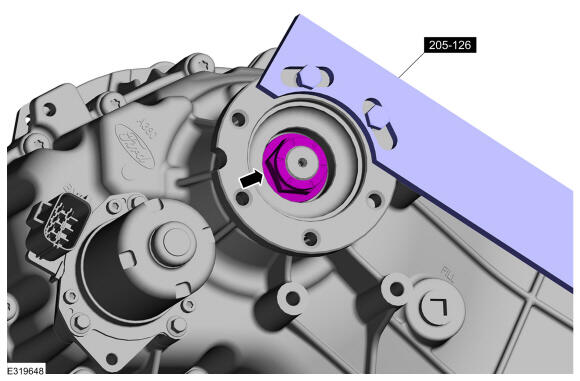

Install the new output shaft flange nut.Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
Torque: 185 Nm

Courtesy of FORD MOTOR COMPANY

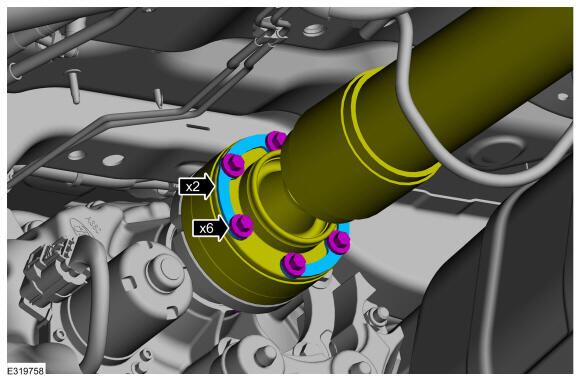

NOTE: Make sure new driveshaft CV joint-to-pinion flange cup restraining straps and bolts are used.
- Align the rear driveshaft CV joint-to-pinion flange cup
- Install the rear driveshaft CV joint-to-pinion flange cup retaining straps and bolts.
  Torque: 70 Nm
Courtesy of FORD MOTOR COMPANY
Refill the transfer case. Refer to: Transfer Case Draining and Filling .
