Transfer Case Front Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING
  2. Remove the transfer case. Refer to: Transfer Case .

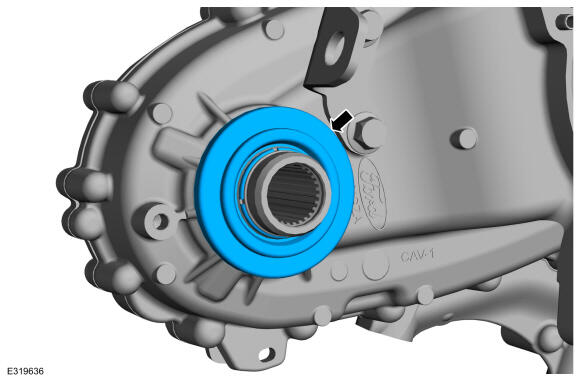

  3. Remove the transfer case output shaft seal dust cover.
    GFD839884Courtesy of FORD MOTOR COMPANY

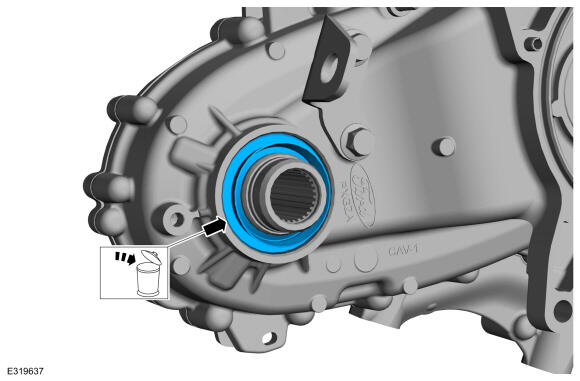

  4. Remove and discard the transfer case output shaft seal.
GFD839885Courtesy of FORD MOTOR COMPANY
