Front Driveshaft - LHD AWD: Removal

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to: Transfer Case .
  2. NOTE: To avoid damage to the joint or gaiter, do not allow the driveshaft to hang.
    NOTE: Lock the driveshaft before removing the bolts to avoid slipping.

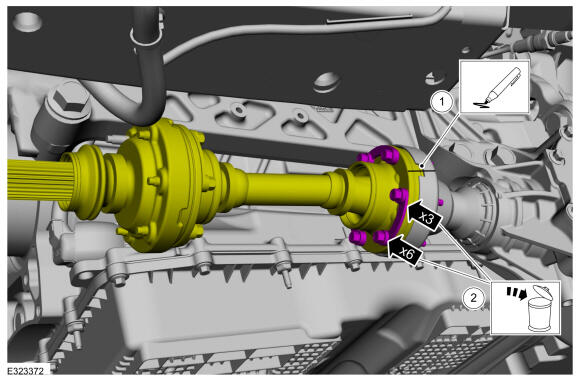

    1. Index-mark the front driveshaft CV -joint-to-pinion flange cup.
    2. Remove and discard the CV -joint-to-pinion flange cup bolts and retaining straps.

    GFD836705Courtesy of FORD MOTOR COMPANY

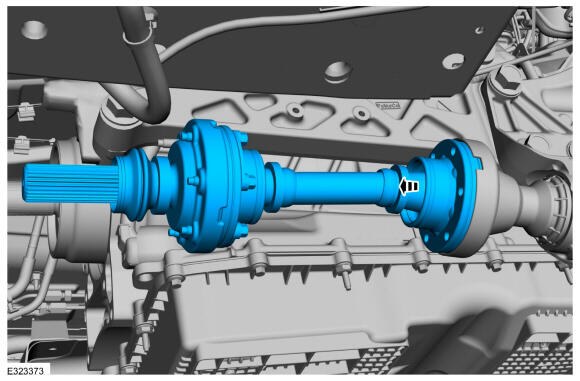

  3. Remove the front driveshaft.
GFD836706Courtesy of FORD MOTOR COMPANY
