Front Driveshaft - LHD AWD: Installation

WARNING: This page is about a different car, the 2024 Ford Transit-350 HD, 2024 Ford Transit-350, 2024 Ford Transit-250, and 2024 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

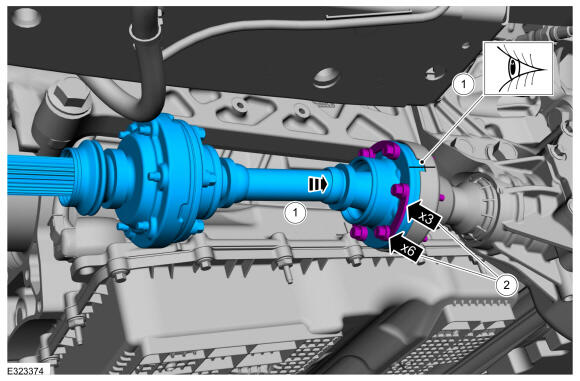

    1. Align the index-mark on driveshaft CV -joint-to-pinion flange cup.
    2. NOTE: Make sure that new components are installed.
      NOTE: Tighten the bolts diagonally.

      Install the new driveshaft CV -joint-to-pinion flange cup bolts and retaining straps.

      Torque: 35 Nm

    GFD836707Courtesy of FORD MOTOR COMPANY
  2. Install the transfer case. Refer to: Transfer Case .
