Front Wheel Bearing and Wheel Hub: Installation

Vehicles with single rear wheels

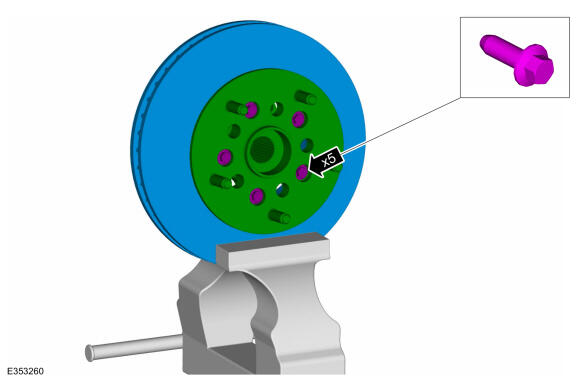

1. NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.
   NOTE: Protect the brake disc with a soft cloth to prevent damage.
   NOTE: Make sure that new bolts are installed.
   NOTE: Only tighten the bolts finger tight at this stage.

   Position the brake disc and front wheel hub assembly and install the new brake disc bolts finger tight.Use the General Equipment: Vise

   Courtesy of FORD MOTOR COMPANY

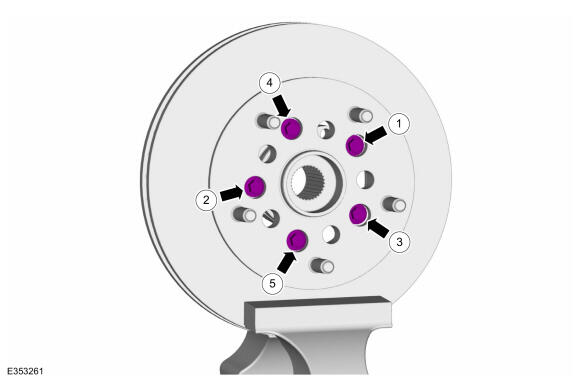

2. NOTE: Make sure to tighten the new brake disc bolts in a star/cross pattern or incorrect clamp load may occur.

   Tighten the brake disc bolt.

   Torque: 80 Nm

   Courtesy of FORD MOTOR COMPANY

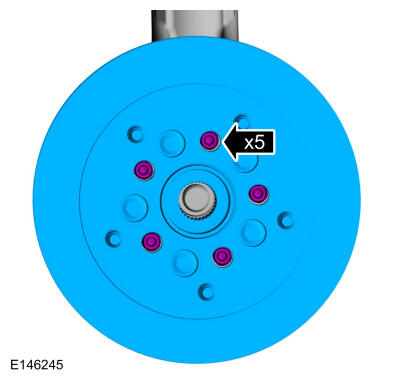

3. Install the wheel hub and brake disc assembly on the vehicle and tighten the new mounting bolts.

   Torque: 63 Nm

   Courtesy of FORD MOTOR COMPANY

   Vehicles with DRW and SRW Jumbo

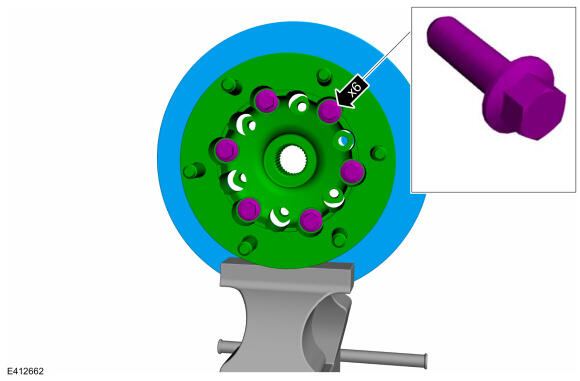

4. NOTE: Make sure that the mating faces are clean and free of corrosion and foreign material.
   NOTE: Protect the brake disc with a soft cloth to prevent damage.
   NOTE: Make sure that new bolts are installed.
   NOTE: Only tighten the bolts finger tight at this stage.

   Position the brake disc and front wheel hub assembly and install the new brake disc bolts finger tight.Use the General Equipment: Vise

   Courtesy of FORD MOTOR COMPANY

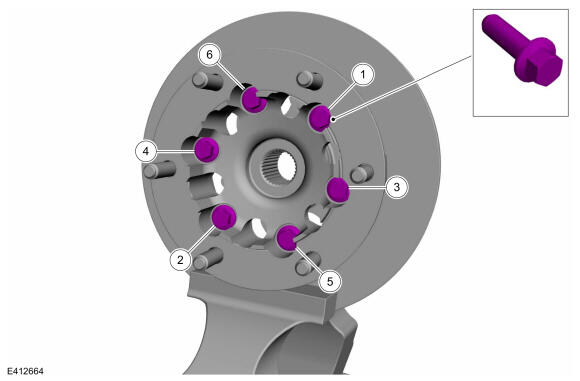

5. NOTE: Make sure to tighten the new brake disc bolts in a star/cross pattern or incorrect clamp load may occur.

   Tighten the brake disc bolt.

   Torque: 133 Nm

   Courtesy of FORD MOTOR COMPANY

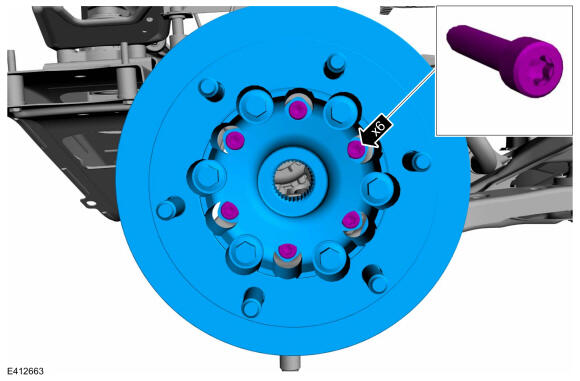

6. Install the wheel hub and brake disc assembly on the vehicle and tighten the new mounting bolts.

   Torque: 63 Nm

   Courtesy of FORD MOTOR COMPANY

   All vehicles

   NOTE: SRW (single rear wheel) graphics shown, vehicles with DRW (dual rear wheels) and SRW (single rear wheel) Jumbo similar.
7. NOTE: Make sure that the strut is not moved more than necessary to prevent damage to top mount.
   NOTE: The outer constant velocity (CV) joint must not be bent more than 45deg..
   NOTE: To view a video version of this step, click here.

   Using special tool, pull the halfshaft into the wheel hub assembly.Install Suggested Tool: 205-1055 Installer, Companion Flange. Tool shown or a commercially available equivalent can be used.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Only tighten the nut finger tight at this stage.

   Install the new wheel hub nut.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Use the hex-holding feature to prevent the lower ball joint stud from turning while installing the lower ball joint nut.

   Connect the lower control arm and install the new lower ball joint nut.

   Torque: 215 Nm

   Courtesy of FORD MOTOR COMPANY

10. Position the brake caliper and anchor plate assembly and tighten the new brake caliper anchor plate bolts.

    Torque: 275 Nm

    Courtesy of FORD MOTOR COMPANY

11. Install the wheel and tire. Refer to: Wheel and Tire . Refer to: Wheel and Tire - Vehicles With: Dual Rear Wheels .

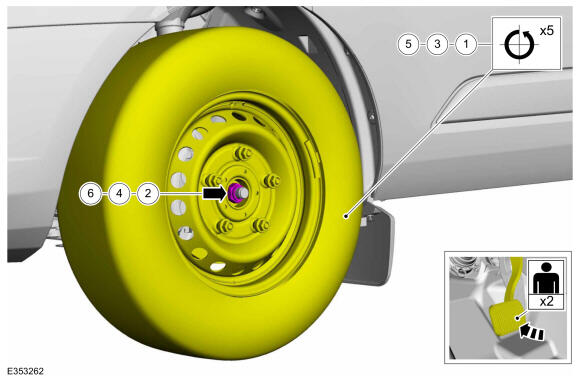

12. NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.
    NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.
    NOTE: Apply the brake to keep the halfshaft from rotating.
    NOTE: This step requires the aid of another technician.

    While an assistant applies the brake, tighten the wheel hub nut.

13. Torque

    : 100 Nm

14. Torque

    : 250 Nm

15. Torque

    : 515 Nm

Courtesy of FORD MOTOR COMPANY

If equipped.Install the wheel center cap.

Courtesy of FORD MOTOR COMPANY

Check and if necessary adjust front toe. Refer to: Front Camber and Caster Adjustment .
