Catalytic Converter - AWD: Installation

Clean all exhaust connections before reassembly.
NOTE: The following step is only required if the components are being replaced with new items:

Install the isolator bracket assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new gasket is installed:

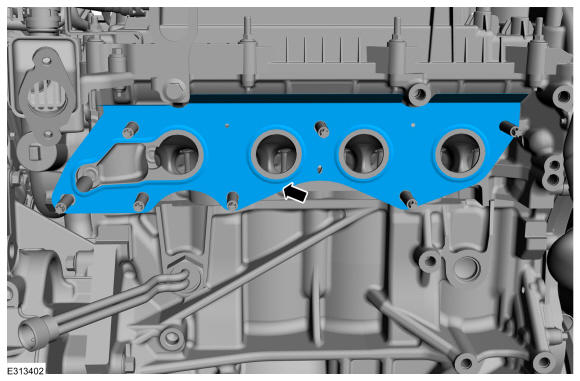

Install a new gasket.

Courtesy of FORD MOTOR COMPANY

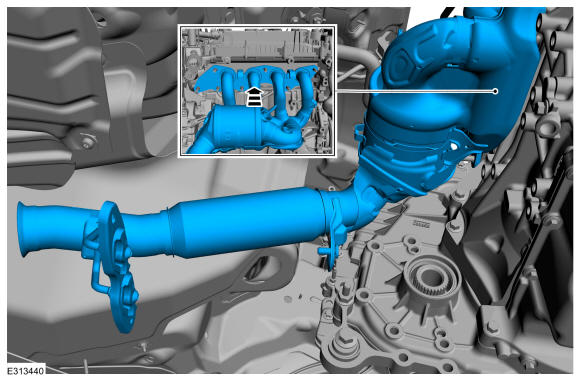

Position the catalytic converter in the vehicle.

Courtesy of FORD MOTOR COMPANY
Install the power transfer unit. Refer to: Power Transfer Unit .
NOTE: The nuts are only finger tight at this step.

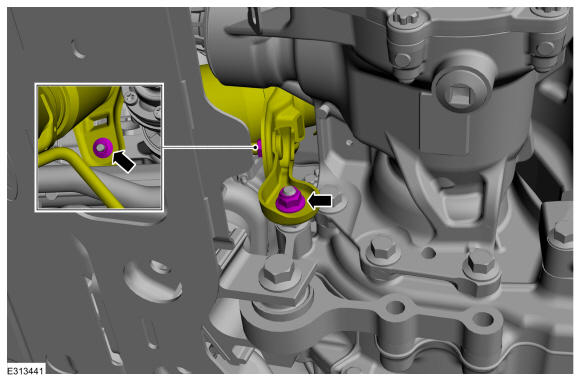

Install the nuts.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that new exhaust manifold nuts are installed:

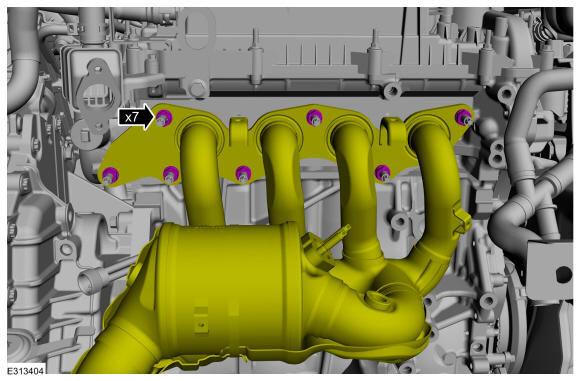

Install the exhaust manifold nuts.

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

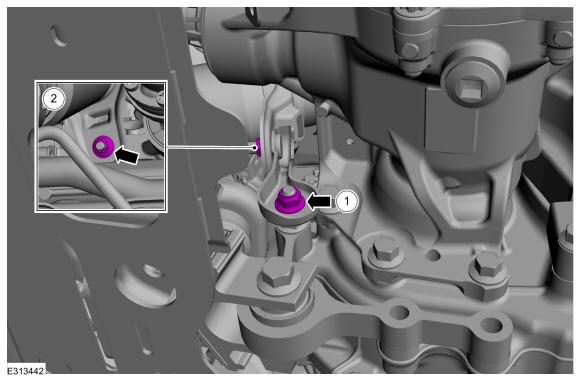

1. Tighten the lower bracket nut.
  Torque: 35 lb.ft (47.5 Nm)
2. Tighten the PIA nut.
  Torque: 35 lb.ft (47.5 Nm)
Courtesy of FORD MOTOR COMPANY
To install, reverse the removal procedure.
Check the exhaust system for leaks.
