Power Transfer Unit

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

1. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

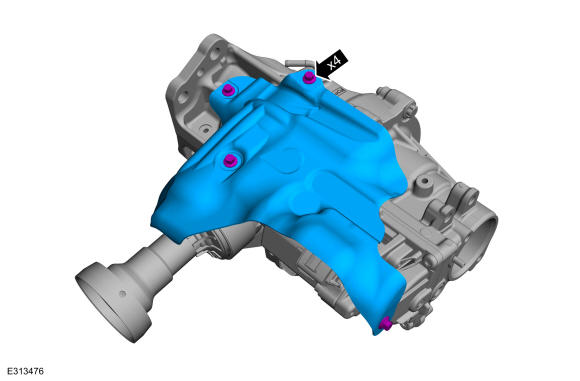

   Install the PTU heat shield.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

   If equipped, install the PTU temperature sensor harness bracket.

   Torque: 97 lb.in (11 Nm)

   Courtesy of FORD MOTOR COMPANY

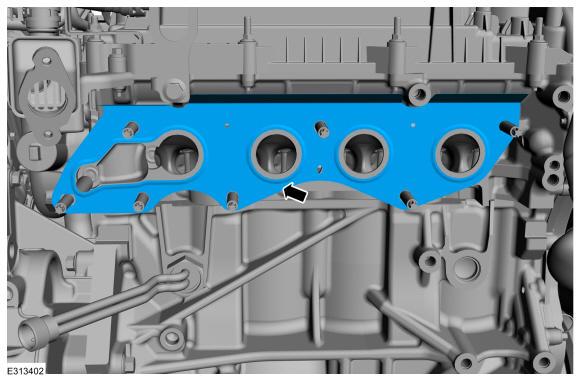

3. NOTE: Make sure that a new gasket is installed.

   Install a new gasket.

   Courtesy of FORD MOTOR COMPANY

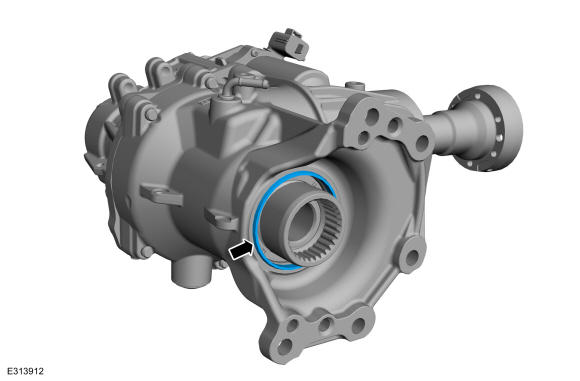

4. Install the new PTU to transmission compression seal.

   Courtesy of FORD MOTOR COMPANY

5. Install the PTU and mounting bolts.

   Torque: 76 lb.ft (103 Nm)

   Courtesy of FORD MOTOR COMPANY

6. Install the new PTU bolts and hand tighten at this stage.

   Torque: 76 lb.ft (103 Nm)

   Courtesy of FORD MOTOR COMPANY

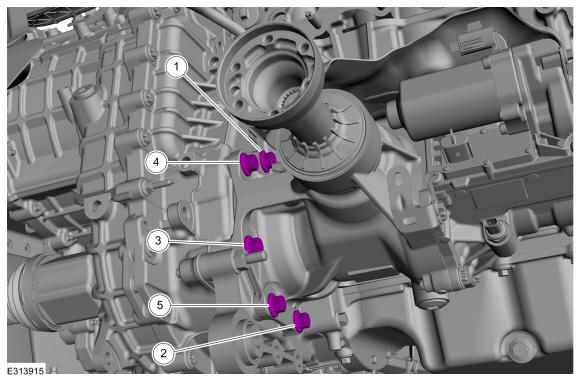

7. Tighten in the sequence shown.

   Torque: 81 lb.ft (110 Nm)

   Courtesy of FORD MOTOR COMPANY

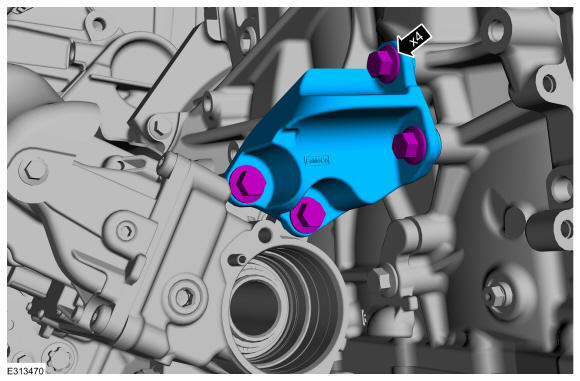

8. Install the PTU support bracket and bolts.

   Torque: 35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

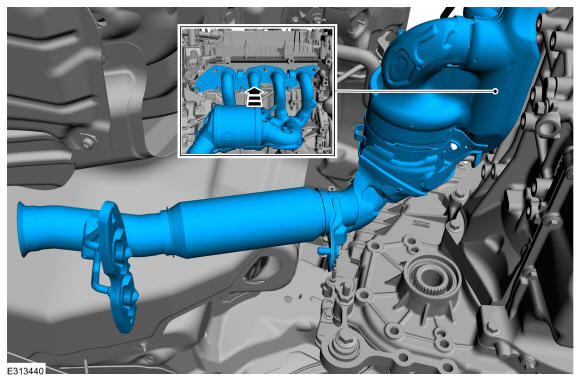

9. Position the catalytic converter in the vehicle.

   Courtesy of FORD MOTOR COMPANY

10. Install the catalytic converter mounting bracket hand tighten at this stage.

    Courtesy of FORD MOTOR COMPANY

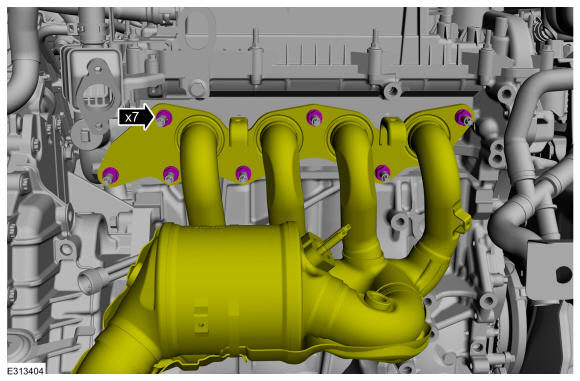

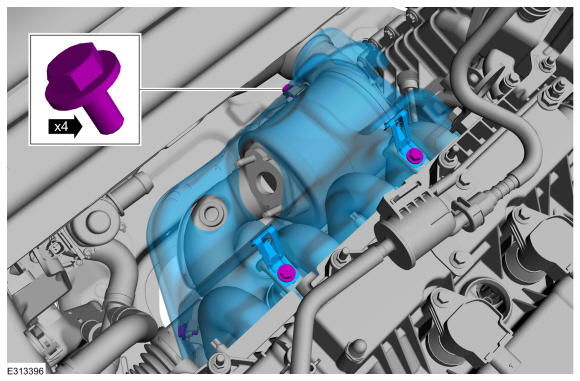

11. NOTE: Make sure that the new exhaust manifold nuts are installed.

    Install the exhaust manifold nuts.

    Torque: 41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

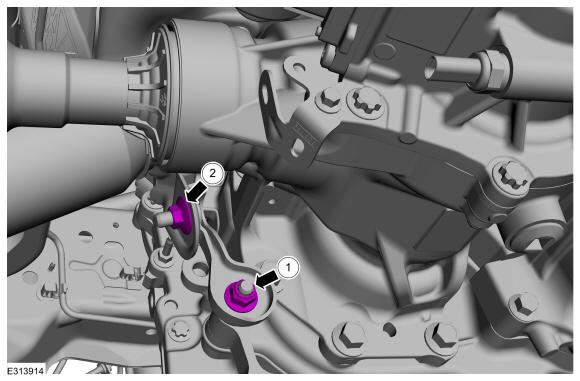

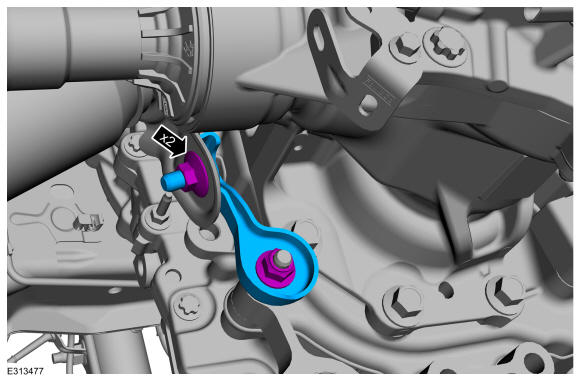

12. 1. Tighten the lower bracket nut.

       Torque: 35 lb.ft (47.5 Nm)

    2. Tighten the PIA nut.

       Torque: 35 lb.ft (47.5 Nm)

    Courtesy of FORD MOTOR COMPANY

13. Install the heat shield.

    Torque: 93 lb.in (10.5 Nm)

    Courtesy of FORD MOTOR COMPANY

14. Install the EGR cooler inlet tube. Refer to: Exhaust Gas Recirculation (EGR) Cooler Inlet Tube .
15. • Connect the catalyst monitor sensor connector and harness retainers.
    • Connect the HO2S connector and harness retainer.

    Courtesy of FORD MOTOR COMPANY

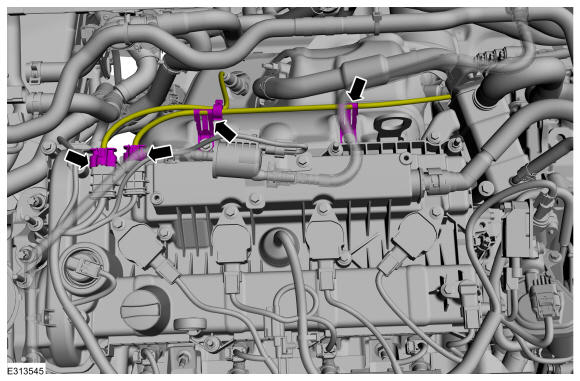

16. If equipped, position back the wiring harness and connect retainer.

    Courtesy of FORD MOTOR COMPANY

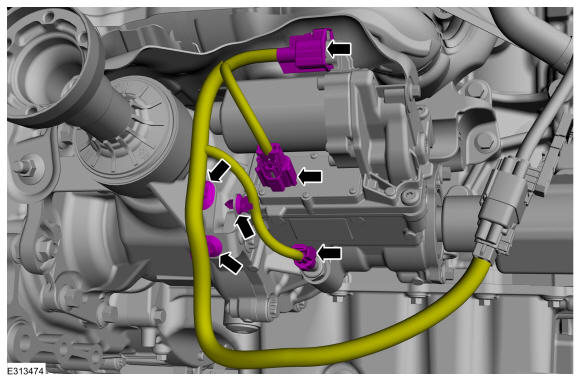

17. If equipped, connect the PTU temperature sensor. Connect the motor connectors and retainers.

    Courtesy of FORD MOTOR COMPANY

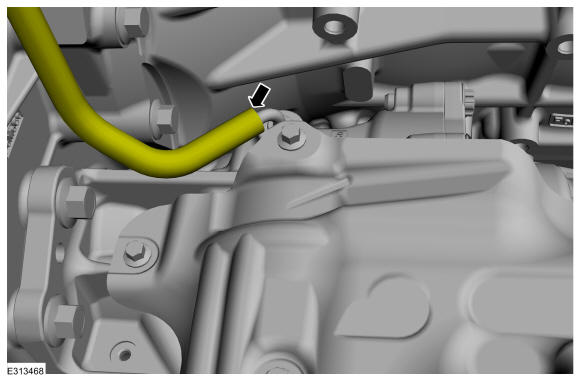

18. Install the vent hose retainer.

    Courtesy of FORD MOTOR COMPANY

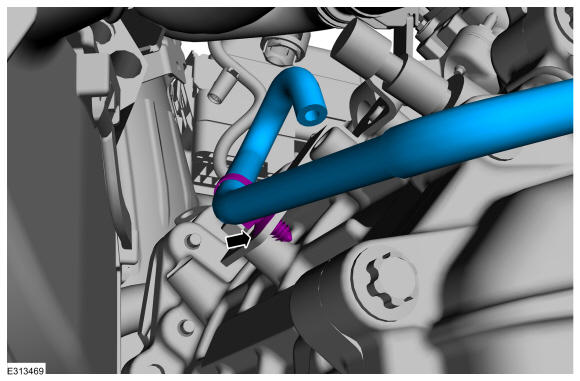

19. NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

    Connect the PTU vent hose.

    Courtesy of FORD MOTOR COMPANY

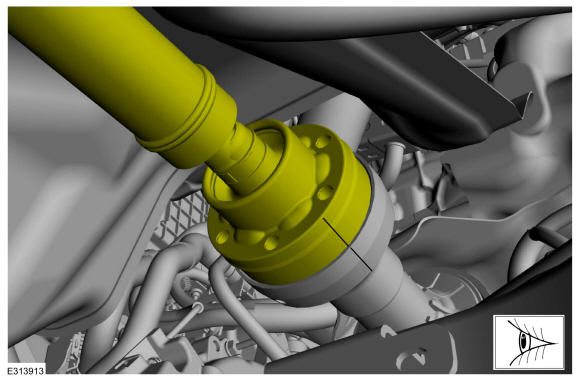

20. NOTE: Make sure that the installation marks are aligned.

    Courtesy of FORD MOTOR COMPANY

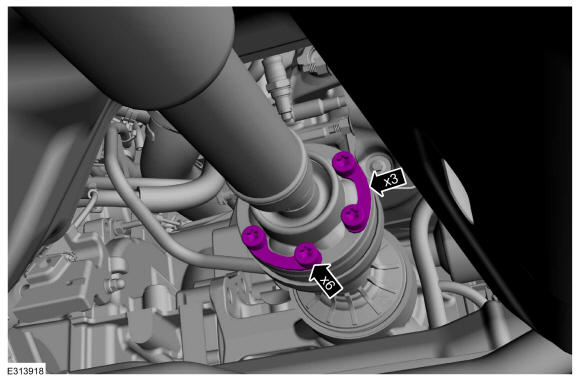

21. Install new PTU flange bolts.

    Torque: 26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

22. Install the intermediate shaft. Refer to: Intermediate Shaft .
23. Fill the PTU.
24. Install the front subframe. Refer to: Front Subframe .

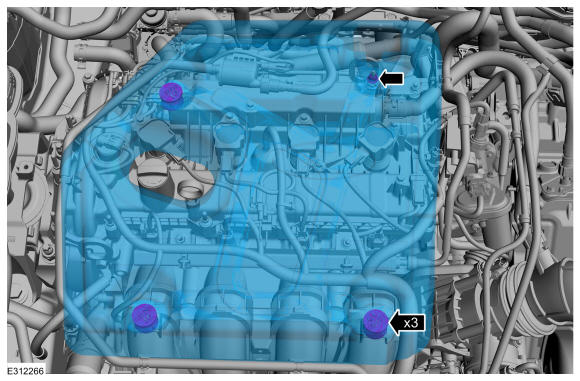

25. 1. If the engine appearance cover stud bolt is loosened or removed, it must be installed/tightened into the valve cover.

       Torque: 62 lb.in (7 Nm)

    2. Position the engine appearance cover onto the engine with the grommets aligned with the studs.
    3. Press down on the engine appearance cover at each grommet location to attach the grommets onto the studs.
    4. Install the engine appearance cover nut.

       Torque: 44 lb.in (5 Nm)

    Courtesy of FORD MOTOR COMPANY

26. Check the exhaust system for leaks.
