Removal And Installation: Turbocharger: Installation

All vehicles

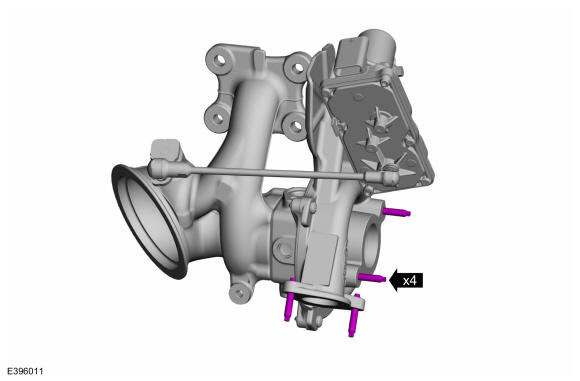

1. NOTE: This step is only needed if the component was removed.

   Install the turbocharger stud bolts.

   Torque: 36 lb.in (4.1 Nm)

   Courtesy of FORD MOTOR COMPANY

2. NOTE: This step is only needed if the component was removed.
   NOTE: Make sure that a new component is installed.
   NOTE: Component(s) must be lubricated with clean engine coolant.

   Install and lubricate the turbocharger coolant supply tube seal. Refer to: Specifications .

   Courtesy of FORD MOTOR COMPANY

3. NOTE: This step is only needed if the component was removed.

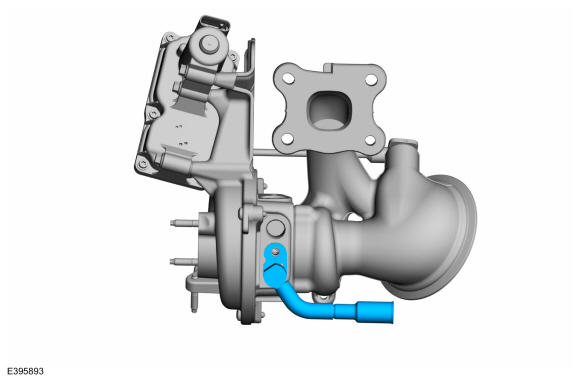

   Install the turbocharger coolant supply tube.

   Courtesy of FORD MOTOR COMPANY

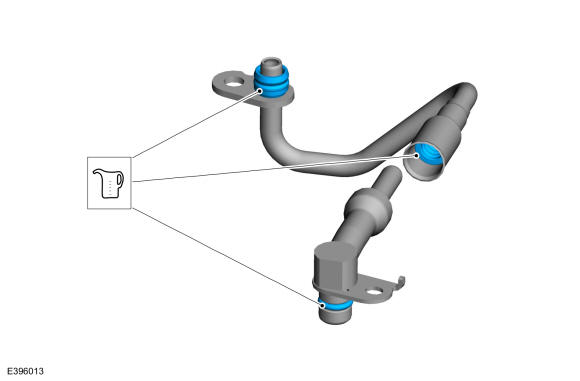

4. NOTE: This step is only needed if the component was removed.
   NOTE: Make sure that a new component is installed.
   NOTE: Component(s) must be lubricated with clean engine coolant.

   Install and lubricate the turbocharger coolant retun tube seals. Refer to: Specifications .

   Courtesy of FORD MOTOR COMPANY

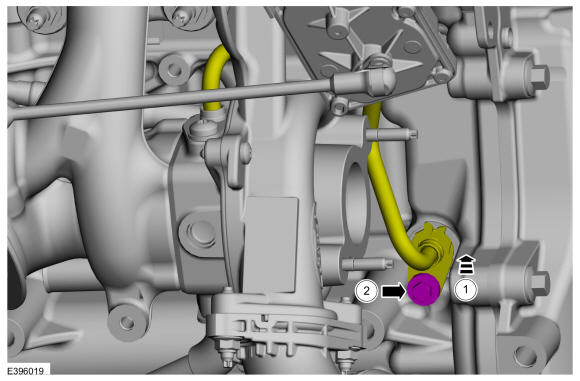

5. NOTE: This step is only needed if the component was removed.

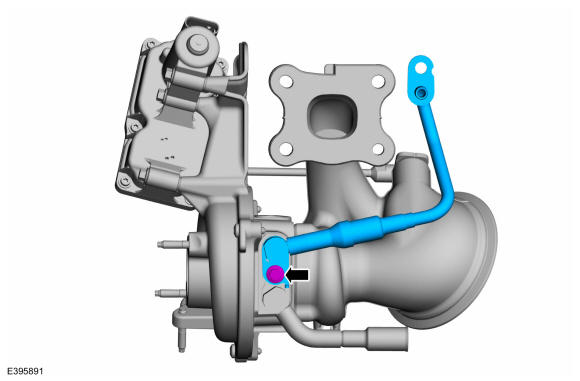

   Install the turbocharger coolant return tube and tighten the bolt.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

6. NOTE: Make sure that new components are installed.
   NOTE: Component(s) must be lubricated with clean engine oil.

   Lubricate the turbocharger oil supply tube O-ring seals. Refer to: Specifications .

   Courtesy of FORD MOTOR COMPANY

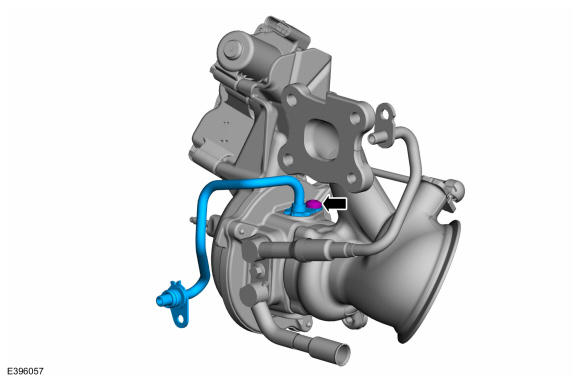

7. Install the turbocharger oil supply tube and tighten the bolt.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

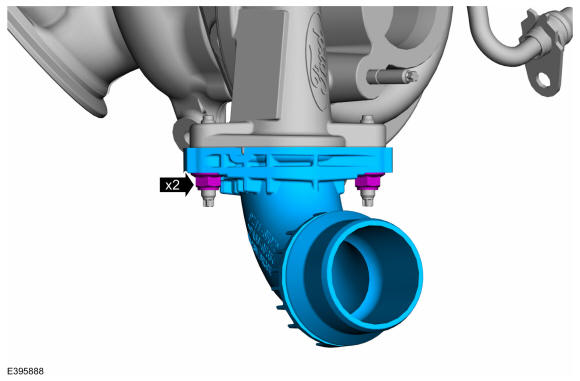

8. NOTE: This step is only needed if the component was removed.

   Install the turbocharger elbow adapter and tighten the nuts.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: This step is only needed if the component was removed.
   NOTE: Make sure that new stud bolts are installed.

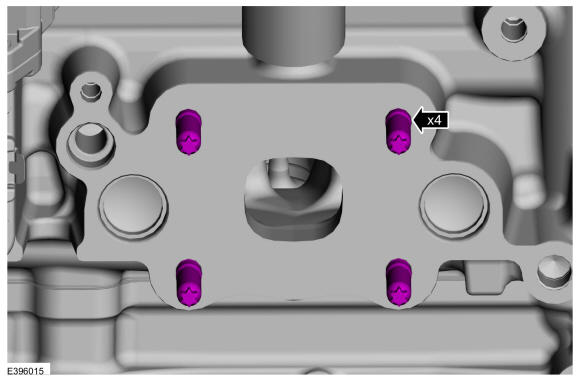

   Install the tubocharger mounting studs.

   Torque: 89 lb.in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

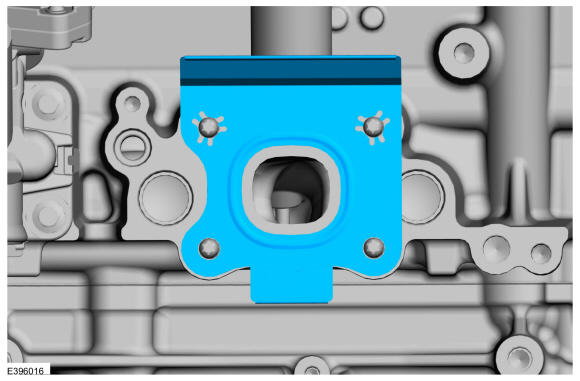

10. NOTE: Make sure that a new component is installed.

    Install the tubocharger gasket.

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Only tighten the nuts finger tight at this stage.

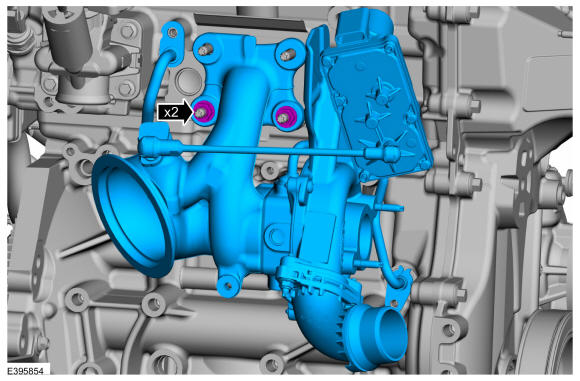

    Install the turbocharger and tighten the nuts.

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Only tighten the nuts finger tight at this stage.

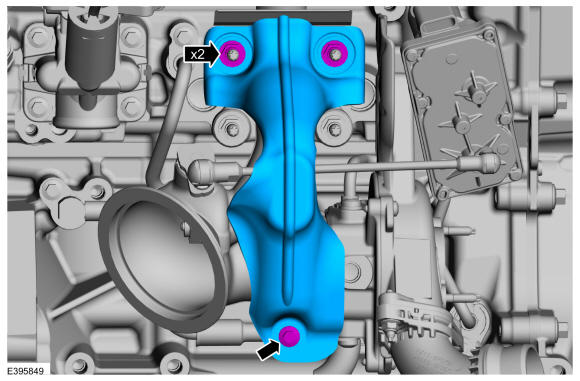

    Install the turbocharger heat shield, then tighten the nuts and the bolt.

    Courtesy of FORD MOTOR COMPANY

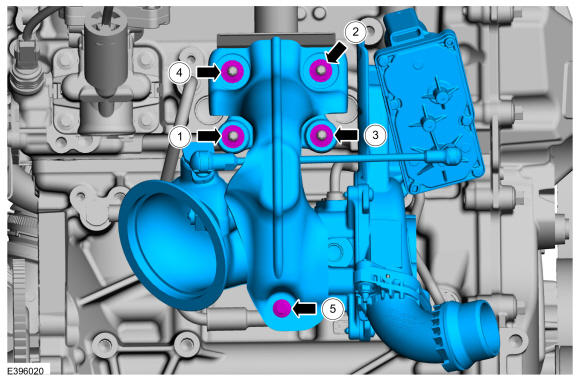

13. NOTE: The component must be installed by hand before final tightening.

    Tighten the nuts and the bolts in the given sequence.

    Torque:Nuts: Stage 1: 17 lb.ft (23 Nm)Stage 2: 17 lb.ft (23 Nm)Bolt: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

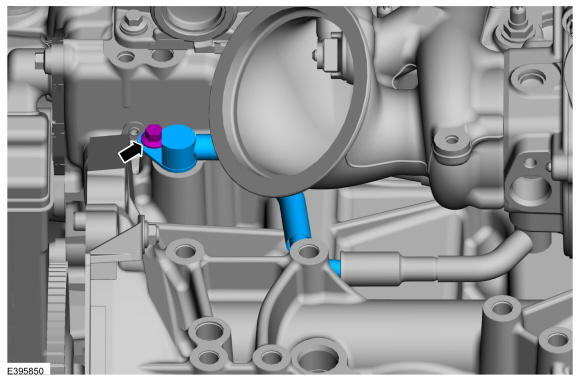

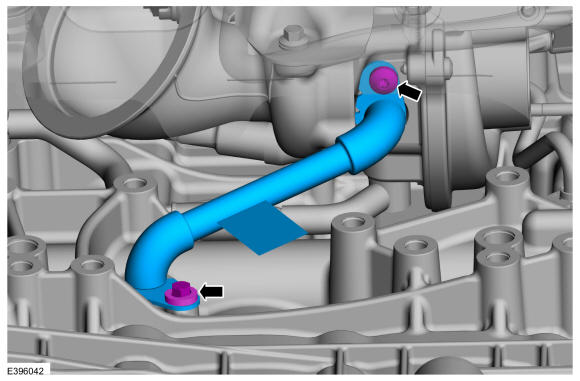

14. Install the turbocharger coolant return tube and tighten the bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

15. Install the turbocharger oil supply tube and tighten the bolt.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Component(s) must be lubricated with clean engine coolant.

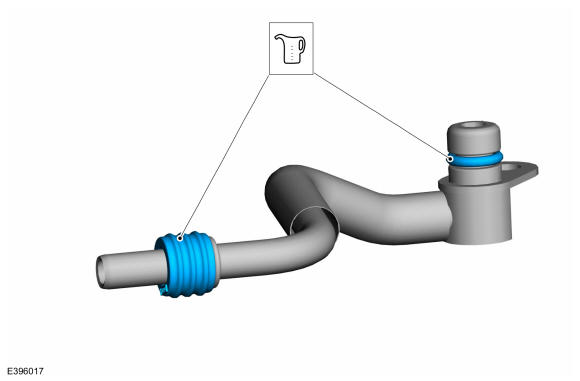

    Lubricate the outer half of the turbocharger coolant supply tube seals. Refer to: Specifications .

    Courtesy of FORD MOTOR COMPANY

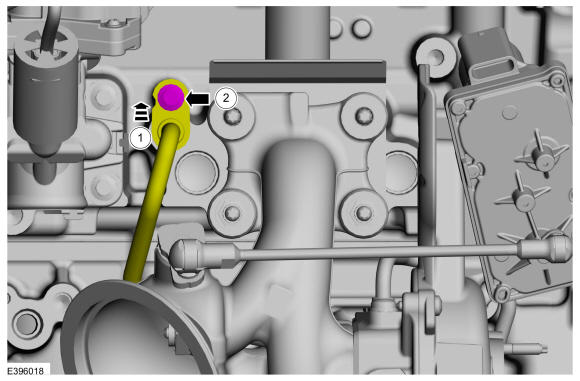

17. Install the outer half of the turbocharger coolant supply tube and tighten the bolt.

    Courtesy of FORD MOTOR COMPANY

18. Lubricate the turbocharger oil return tube O-ring seals.

    Courtesy of FORD MOTOR COMPANY

19. Install the turbocharger oil supply tube and tighten the bolts.

    Torque: 89 lb.in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

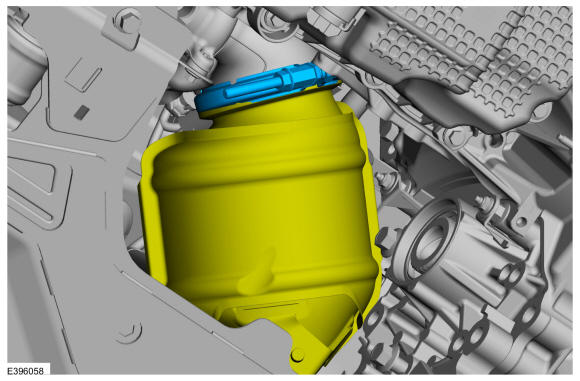

20. Install the catalytic converter and the clamp.

    Courtesy of FORD MOTOR COMPANY

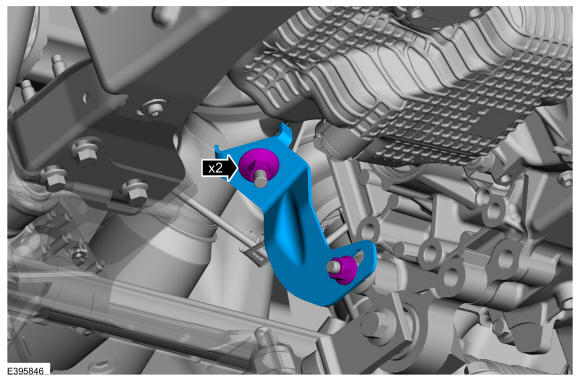

21. Install the catalytic converter lower bracket and tighten the bolts.

    Torque: 35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

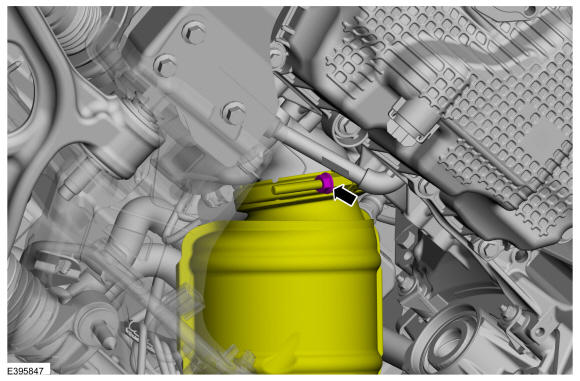

22. Tighten the bolt.

    Torque: 159 lb.in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

23. Install the power transfer unit. Refer to: Power Transfer Unit - Vehicles With: Power Transfer Unit Oil-to-Coolant Cooler . Refer to: Power Transfer Unit - Vehicles Without: Power Transfer Unit Oil-to-Coolant Cooler .
24. Install the catalytic converter. Refer to: Catalytic Converter .
25. Install the front RH half shaft. Refer to: Front Halfshaft RH - 1.5L EcoBoost (132kW/180PS) - I3 (Y1) .

    All vehicles

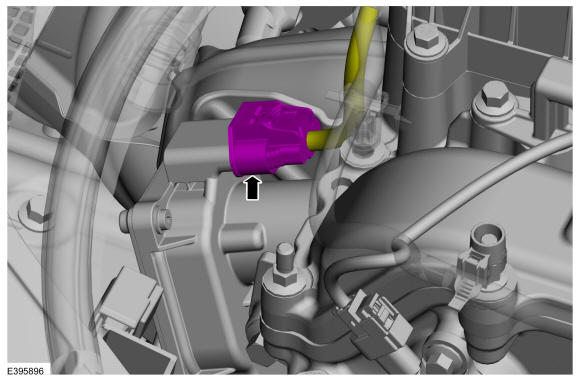

26. Connect the turbocharger wastegate electrical connector.

    Courtesy of FORD MOTOR COMPANY

27. Install the CAC inlet pipe. Refer to: Charge Air Cooler (CAC) Intake Pipe .
28. Install the air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
29. Check and top off the engine oil as needed. Refer to: Specifications .
30. Fill and bleed the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
