Power Transfer Unit - Vehicles Without: Power Transfer Unit Oil-to-Coolant Cooler

WARNING: This page is about a different variant/trim than selected.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

Install the PTU heat shield.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new PTU or replacing a PTU seal.

If equipped, install the PTU temperature sensor harness bracket.

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new PTU to transmission compression seal.

Courtesy of FORD MOTOR COMPANY
Install the PTU and mounting bolts.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new PTU bolts.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY

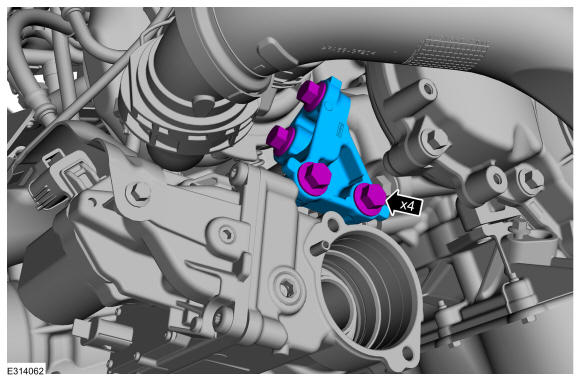

Install the PTU support bracket and bolts.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Install the vent hose retainer.

Courtesy of FORD MOTOR COMPANY
NOTE: The PTU vent hose should be replaced whenever a new PTU is installed.

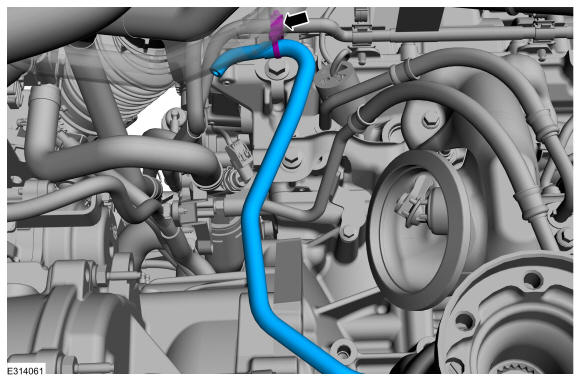

Connect the PTU vent hose.

Courtesy of FORD MOTOR COMPANY
If equipped, position back the wiring harness and connect retainer.

Courtesy of FORD MOTOR COMPANY
If equipped, connect the PTU temperature sensor. Connect the motor connectors and retainers.

Courtesy of FORD MOTOR COMPANY
Install the intermediate shaft. Refer to: Intermediate Shaft .
NOTE: Make sure that the installation marks are aligned.

Courtesy of FORD MOTOR COMPANY
Install new PTU flange bolts.
Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
Insatll the catalytic converter.
Install the front subframe. Refer to: Front Subframe .
Fill the PTU.
