Fuel Tank: Removal
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation steps.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Disconnect the battery. Refer to: Battery Disconnect and Connect .
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Drain the fuel tank.
- Remove the muffler and tailpipe. Refer to: Muffler and Tailpipe - Plug-In Hybrid Electric Vehicle (PHEV) .
-

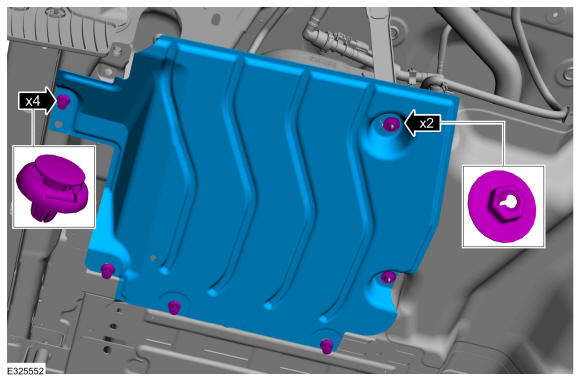

- Remove the retainers.
- Remove the nuts and LH air deflector.
Torque: 22 lb.in (2.5 Nm)
-

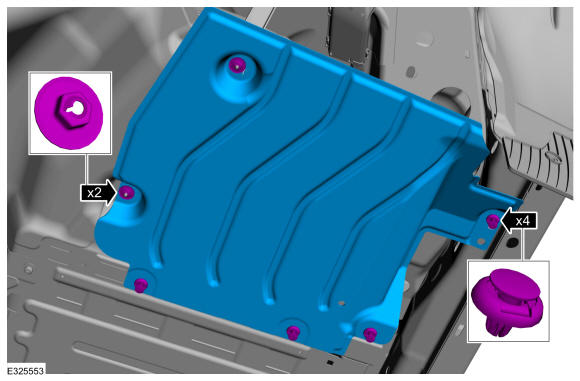

- Remove the retainers.
- Remove the nuts and RH air deflector.
Torque: 22 lb.in (2.5 Nm)
-

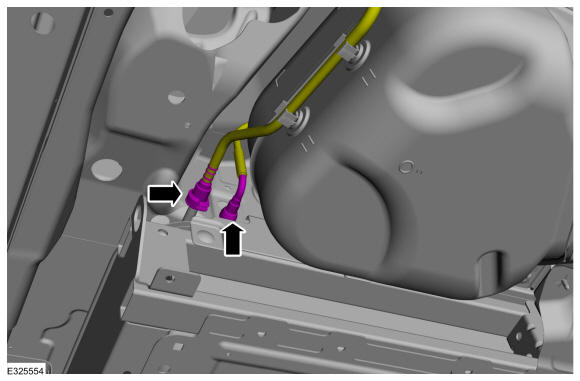

NOTE: Always wrap the fuel line connection with a towel before disconnecting it.
Disconnect the quick connectors. Refer to: QUICK RELEASE COUPLING .

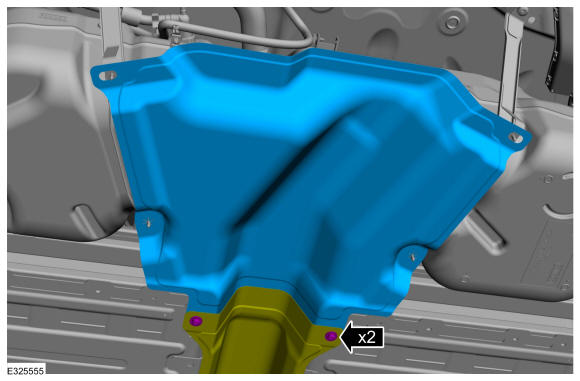

- Remove the fuel tank heat shield.
Torque: 22 lb.in (2.5 Nm)

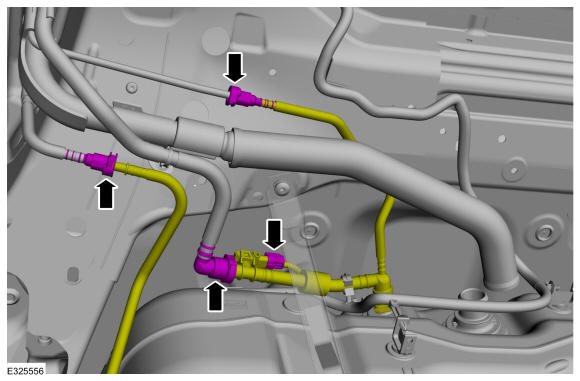

- Disconnect the quick connectors and electrical connector. Refer to: QUICK RELEASE COUPLING
.
-

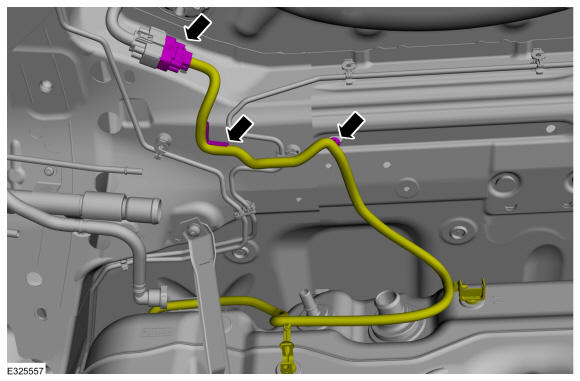

- Disconnect the electrical connector.
- Detach the retainer clips.
-
NOTE: This step requires the aid of another technician.

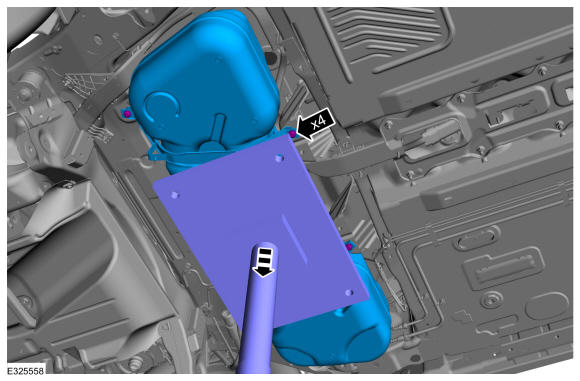

Remove the bolts and fuel tank from the vehicle. Use the General Equipment: Powertrain Jack
Torque: 22 lb.ft (30 Nm)
