Fuel System Pressure Release
WARNING: This page is about a different car, the 2022 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING
Pressure release
WARNING:
Fuel may remain pressurized in some fuel lines after the Fuel System Pressure Release procedure. Wear safety gloves and a face shield when disconnecting pressure lines to avoid skin and eye contact. Failure to follow this instruction may result in serious personal injury.
- Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .

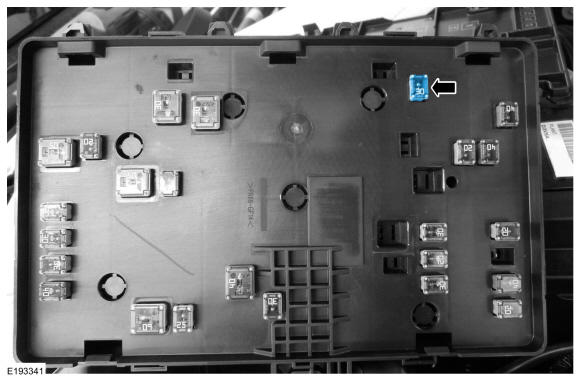

- Remove the following items:
- Fuse 58
- Start and run the engine at idle.
- Wait until the engine stalls.
- Crank the engine for approximately 5 seconds to release the fuel pressure.
- Install the following items:
- Fuse 58
