Wheel Hub: Installation

WARNING: This page is about a different car, the 2023 Ford Transit-350 HD, 2023 Ford Transit-350, 2023 Ford Transit-250, and 2023 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

NOTE: The inner wheel hub seal surface should be clean of all foreign material before installation.

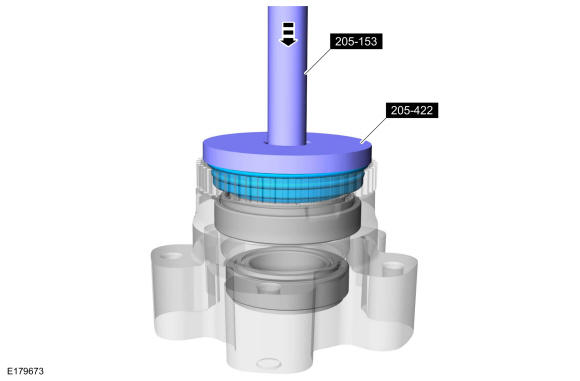

Using the special tools, install the new inner wheel hub seal.Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-422 Installer, Wheel Hub Oil Seal (10 1/2).

Courtesy of FORD MOTOR COMPANY

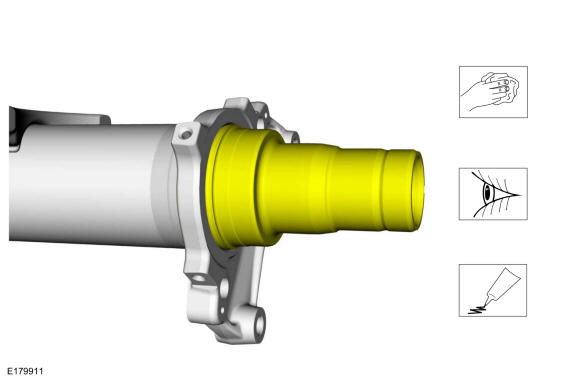

Clean and inspect the hub spindle. Coat the hub spindle with clean axle lubricant.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

Vehicles with Drum In Hat Parking Brake

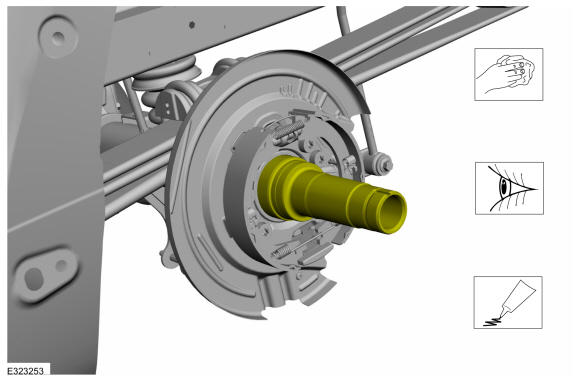

Clean and inspect the hub spindle. Coat the hub spindle with clean axle lubricant.
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

Courtesy of FORD MOTOR COMPANY

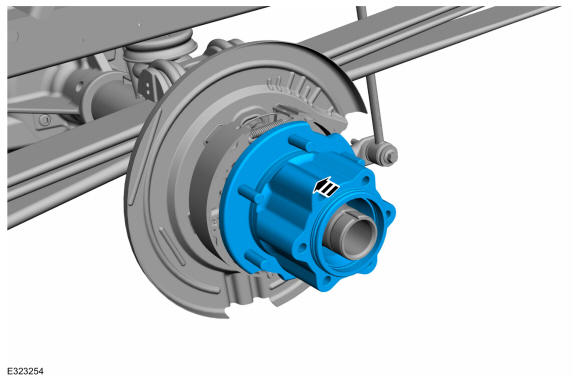

Install the wheel hub.

Courtesy of FORD MOTOR COMPANY

All vehicles

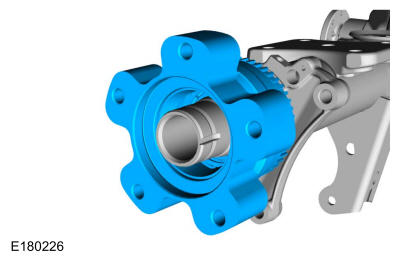

Install the wheel hub.

Courtesy of FORD MOTOR COMPANY
NOTE: The wheel hub bearings must be prelubricated with grease prior to installation. Pack each bearing with a bearing packing tool. Also apply grease to the thrust surface of the bearing.

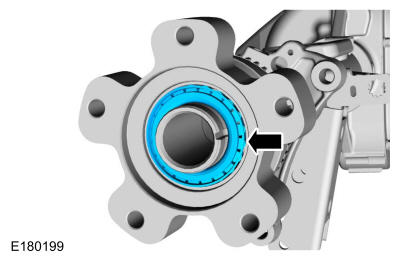

Install the outer wheel hub bearing.

Courtesy of FORD MOTOR COMPANY
NOTE: SRW shown, others similar.

NOTE: The wheel hub nuts are RH thread (right hub), and LH thread (left hub).

LH shown RH similar.

NOTE: Always apply inward pressure when tightening or loosening the hub nut.

NOTE: Rotate the wheel hub occasionally while tightening the hub nut.

Using the special tool, install the hub nut.Use Special Service Tool: 205-1007 Socket, Axle Nut.

Torque:Stage 1: 70 lb.ft (95 Nm)Stage 2: Loosen: 180deg.Stage 3: 25 lb.ft (34 Nm)

Courtesy of FORD MOTOR COMPANY

Vehicles equipped with Drum in Hat

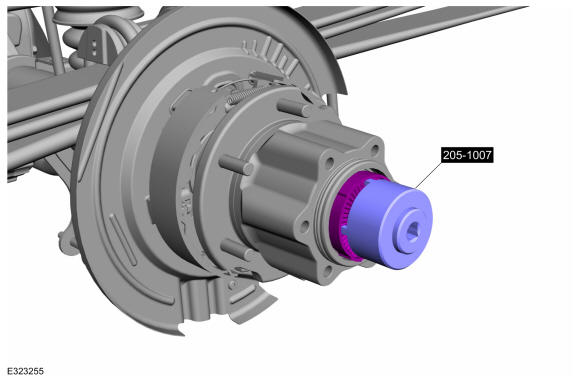

Using the special tool, install the wheel hub nut.Use Special Service Tool: 205-1007 Socket, Axle Nut.
Torque:Stage 1: 65 lb.ft (88 Nm)Stage 2: Loosen: 180deg.Stage 3: 25 lb.ft (34 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

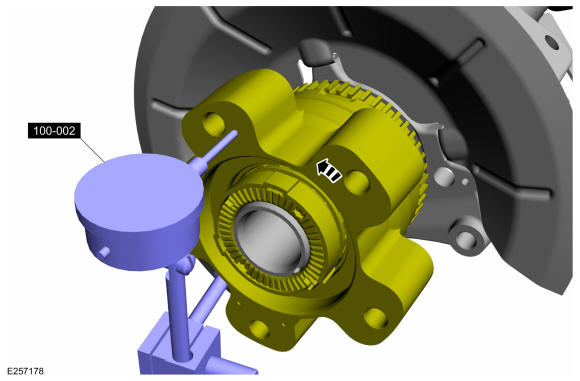

- Zero the Dial Indicator Gauge with Holding Fixture.
- Place the dial indicator tip on the outboard surface of the wheel hub and verify there is no side-to-side end play.
Courtesy of FORD MOTOR COMPANY
Install the brake disc. Refer to: BRAKE DISC
Check the differential fluid level. Refer to: Differential Fluid Level Check .
