Differential Fluid Level Check
WARNING: This page is about a different car, the 2023 Ford Transit-350 HD, 2023 Ford Transit-350, 2023 Ford Transit-250, and 2023 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Materials
| Name | Specification |
|---|---|
| Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear LubricantXY-75W85-QL | WSS-M2C942-A |
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: JACKING AND LIFTING

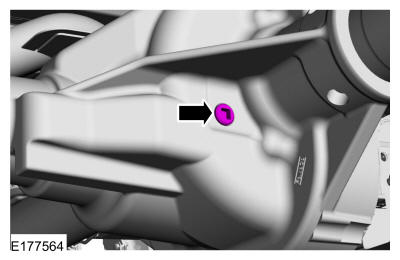

- Remove the differential fluid fill plug.

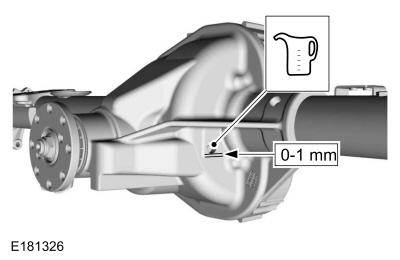

- Check and top off the differential with clean differential gear lubricant. The differential gear lubricant level should be within 0-1 mm from the fluid level fill plug opening (bottom edge). Refer to: Specifications .
Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)
- Install the differential fluid fill plug.
Torque: 38 lb.ft (51 Nm)
