Axle Shaft: Installation

WARNING: This page is about a different car, the 2023 Ford Transit-350 HD, 2023 Ford Transit-350, 2023 Ford Transit-250, and 2023 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with Drum In Hat Parking Brake

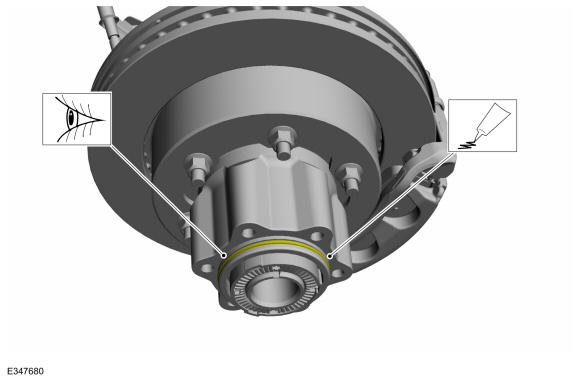

NOTE: The O-ring seal is to be reused unless damaged.

NOTE: Make sure the O-ring is installed correctly within the O-ring groove.
- Inspect the O-ring for damage. Replace if necessary.
- Lubricate the O-ring with clean RDU fluid. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is installed to the position noted before removal.

NOTE: Make sure that the mating faces are clean and free of foreign material.

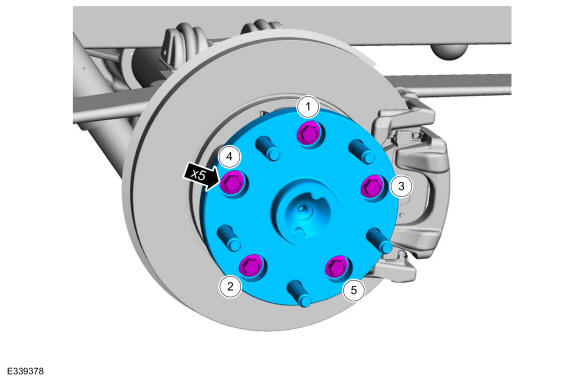

Install the axle shaft and the new axle shaft bolts. Tighten all of the bolts in the sequence as shown.

Torque:Stage 1: 20 lb.ft (27 Nm)Stage 2: 46 lb.ft (62 Nm)Stage 3: 100deg.

Fig 1: Axle Shaft Tightening Sequence
Courtesy of FORD MOTOR COMPANY

Vehicles with DRW and SRW Jumbo

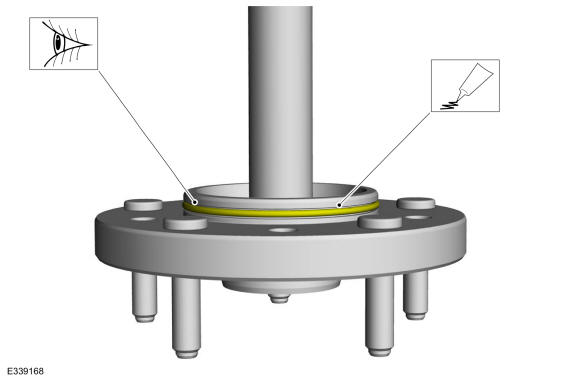

NOTE: The O-ring seal is to be reused unless damaged.

NOTE: Make sure the O-ring is installed correctly within the O-ring groove.
- Inspect the O-ring for damage. Replace if necessary.
- Lubricate the O-ring with clean RDU fluid. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is installed to the position noted before removal.

NOTE: Make sure that the mating faces are clean and free of foreign material.

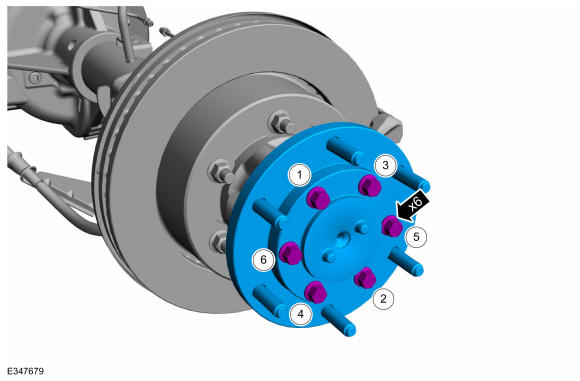

Install the axle shaft and the new axle shaft bolts. Tighten all of the bolts in the sequence as shown.

Torque:Stage 1: 20 lb.ft (27 Nm)Stage 2: 46 lb.ft (63 Nm)Stage 3: 90deg.

Fig 2: Axle Shaft Tightening Sequence
Courtesy of FORD MOTOR COMPANY

Vehicles with single rear wheels

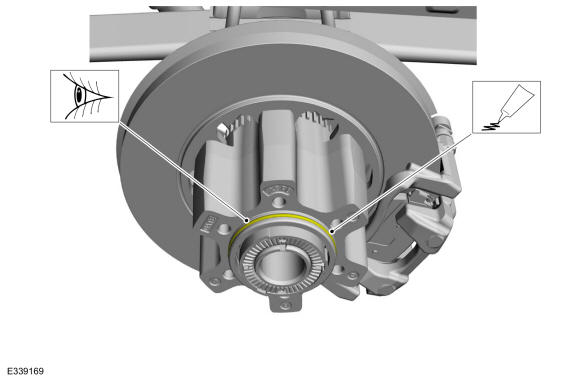

NOTE: The O-ring seal is to be reused unless damaged.

NOTE: Make sure the O-ring is installed correctly within the O-ring groove.
- Inspect the O-ring for damage. Replace if necessary.
- Lubricate the O-ring with clean RDU fluid. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that the component is installed to the position noted before removal.

NOTE: Make sure that the mating faces are clean and free of foreign material.

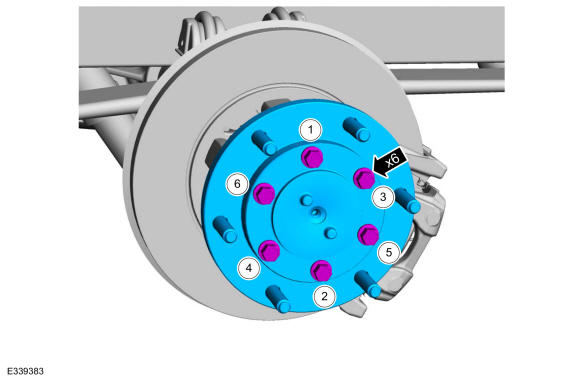

Install the axle shaft and the new axle shaft bolts. Tighten all of the bolts in the sequence as shown.

Torque:Stage 1: 20 lb.ft (27 Nm)Stage 2: 50 lb.ft (68 Nm)Stage 3: 90deg.

Fig 3: Axles Shaft Tightening Sequence
Courtesy of FORD MOTOR COMPANY

All vehicles
Check and top off the differential fluid. Refer to: Differential Fluid Level Check .
Install the wheel and tire. Refer to: Wheel and Tire .
