Transmission Fluid Warmer: Installation

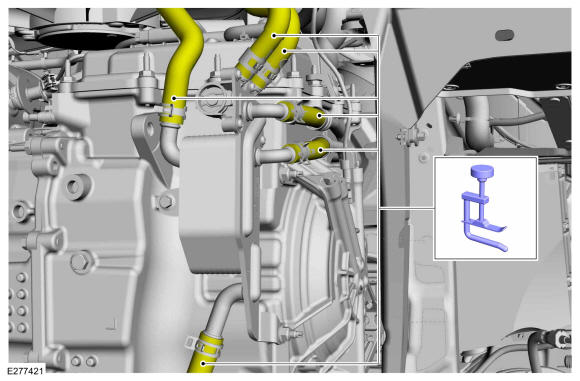

Use the General Equipment: Hose Clamp Remover/Installer
Torque

: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the General Equipment: Hose Clamp(s)

Courtesy of FORD MOTOR COMPANY

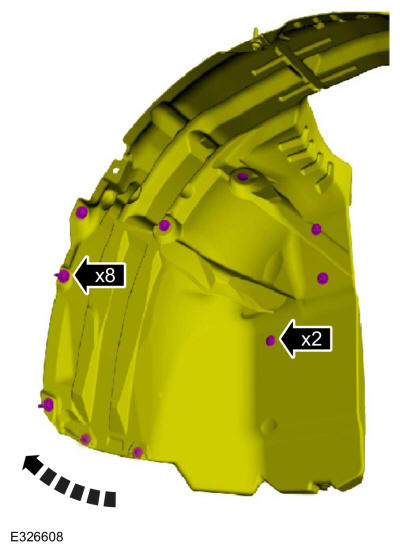

Position back the LH fender splash shield and install the retainers.

Courtesy of FORD MOTOR COMPANY
Install the LH front wheel and tire. Refer to: WHEELS AND TIRES .
Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
Refer to: Transmission Fluid Level Check .
