Transmission Fluid Level Check

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Check

Connect the diagnostic scan tool and position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

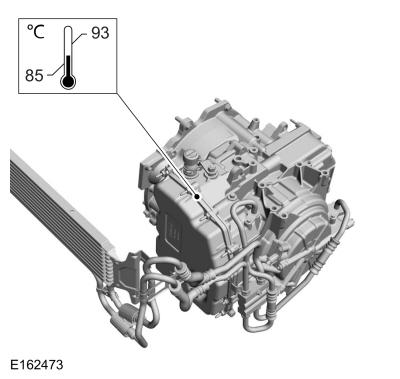

Start and run the engine the engine at idle.
Fully apply the brake pedal and parking brake.

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

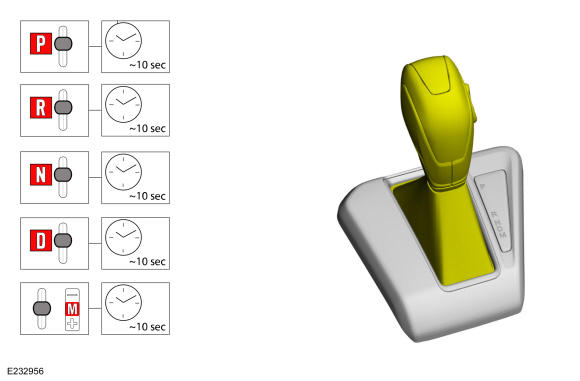

NOTE: Make sure that the selector lever and the gearshift mechanism are in the PARK (P) position.

Courtesy of FORD MOTOR COMPANY
If equipped. Remove the retainers and the underbody shield.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

NOTE: Make sure that the vehicle is standing on a level surface.

NOTE: Be prepared to collect escaping fluid.

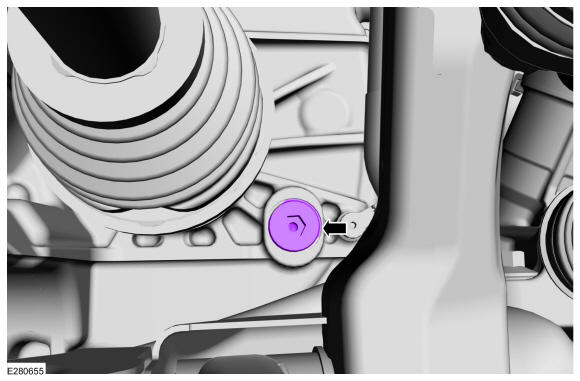

Remove the transmission fluid leveling plug.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

NOTE: Be prepared to collect escaping fluid.

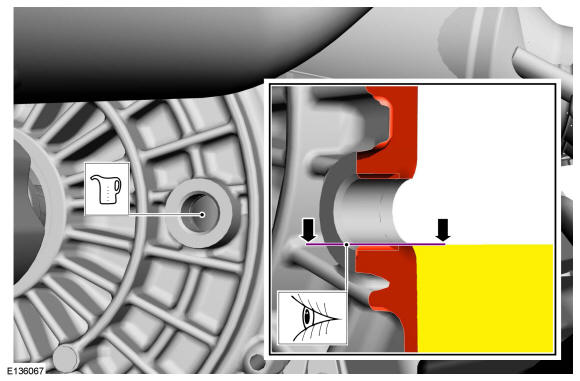

- If transmission fluid seeps out of hole, allow to continue until the transmission fluid stops seeping.
- If transmission fluid does not seep out, add fluid in 0, 26 qt (250 ml) increments until it starts to seep. Refer to: Specifications .
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

Install the transmission fluid leveling plug.

Torque: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the underbody shield and the retainers.

Courtesy of FORD MOTOR COMPANY

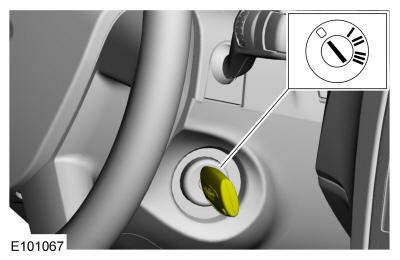

Stop the engine.
