Main Control Cover: Installation

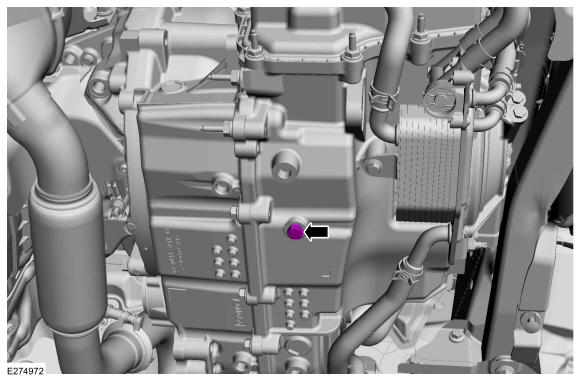

- Install the transmission oil drain plug.
Torque: 106 lb.in (12 Nm)
-

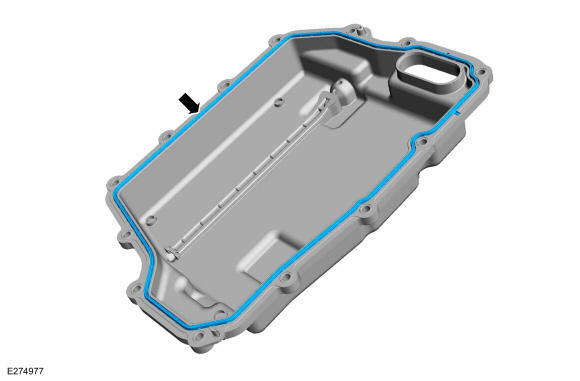

NOTE: The gasket is to be reused unless damaged.
Install a new transmission fluid pan gasket if required.

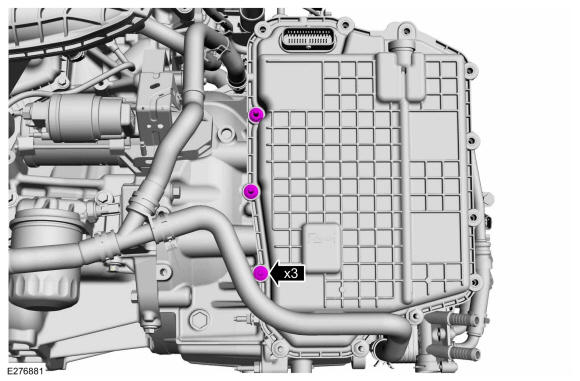

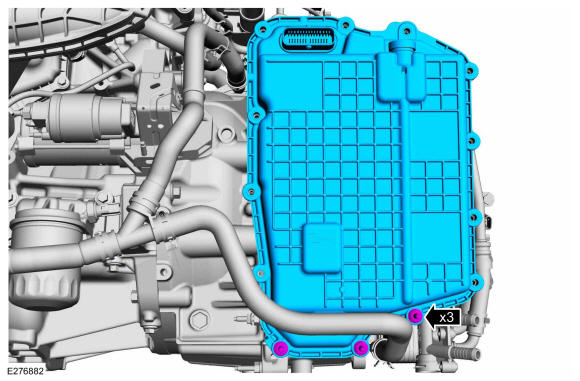

- Install the transmission main control cover and the studs.
Torque: 106 lb.in (12 Nm)

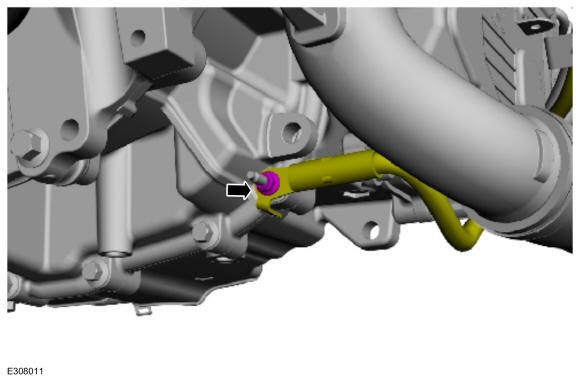

- Remove the nut and position aside the ground wire.
Torque: 115 lb.in (13 Nm)

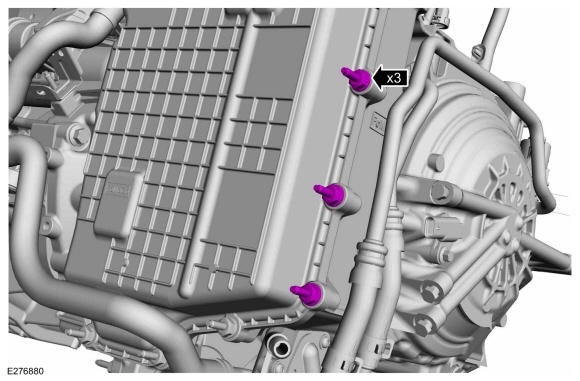

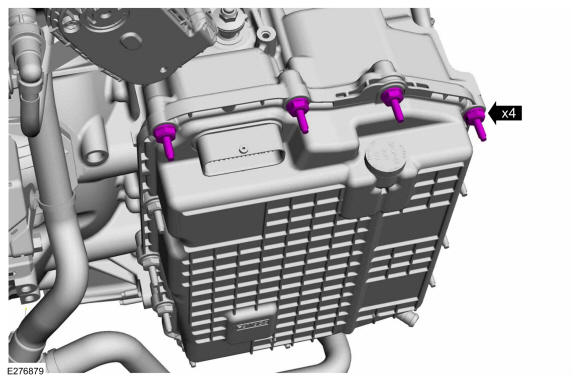

- Install the transmission main control cover studs.
Torque: 106 lb.in (12 Nm)
- Install the transmission main control cover studs.
Torque: 106 lb.in (12 Nm)
- Install the transmission main control cover studs.
Torque: 106 lb.in (12 Nm)

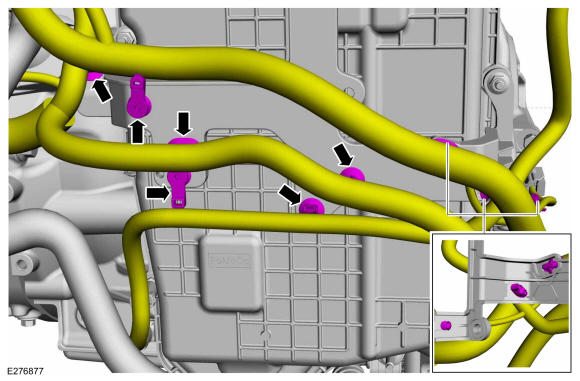

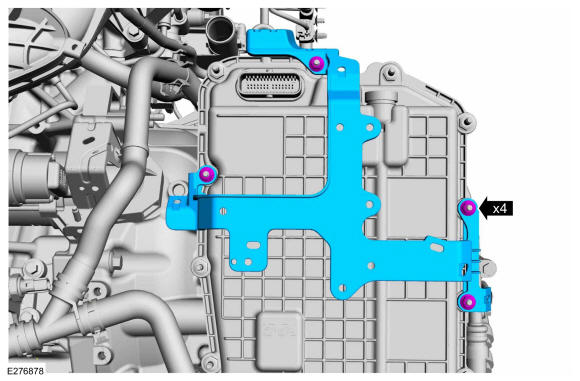

- Install the wire harness bracket and the nuts.
Torque: 89 lb.in (10 Nm)

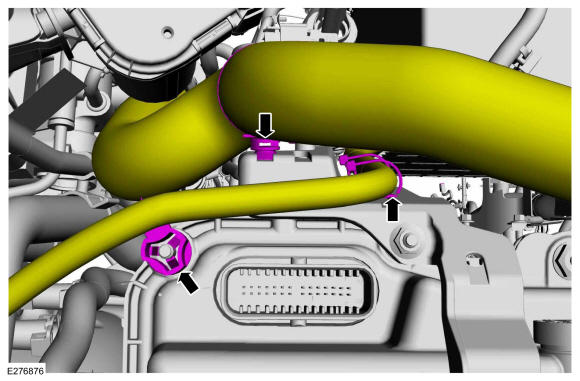

- Attach the wiring harness retainers.
- Attach the wiring harness retainers.
-
NOTE: Make sure that the component terminals are not bent or damaged.

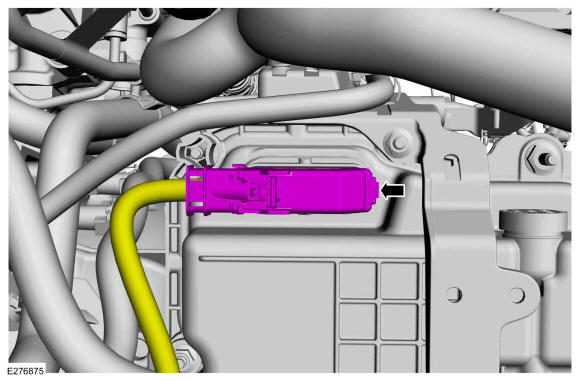

Position the wire harness and connect the main control valve body.
-

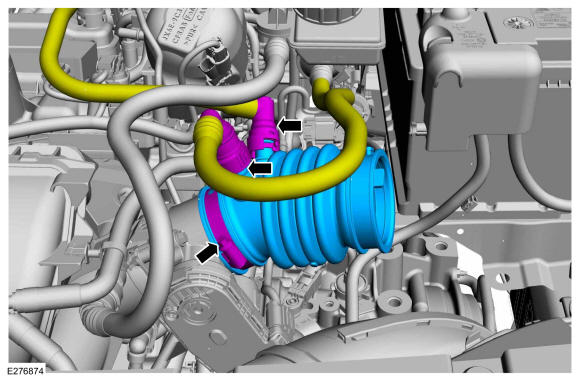

- Install the air cleaner tube.
- Attach the quick release couplings.
- Install the clamp.
- Install the air cleaner. Refer to: Air Cleaner .
- Fill the transmission with transmission fluid. Refer to: Transmission Fluid Drain and Refill .
