Transmission Fluid Drain and Refill

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING

Materials

Draining

1.5L EcoBlue (70kW/95PS) (Z2)/1.5L EcoBlue (90kW/120PS) (BE)

1. Remove the air cleaner. Refer to the appropriate Service Information

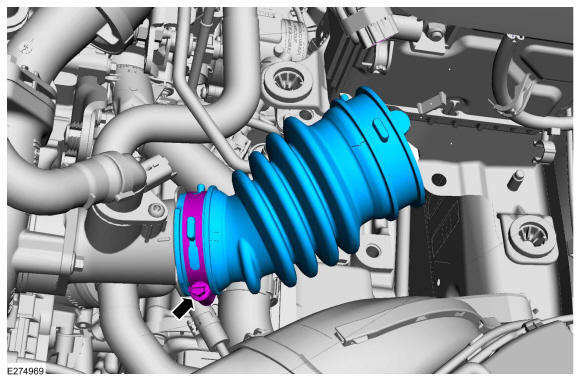

2. Loosen the clamp and remove the air cleaner tube.

   Courtesy of FORD MOTOR COMPANY

   2.0L Duratec-HE (110kW/150PS) - MI4

3. Remove the air cleaner. Refer to: Air Cleaner .
4. • Remove the quick release couplings.
   • Loosen the clamp.
   • Remove the air cleaner tube.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

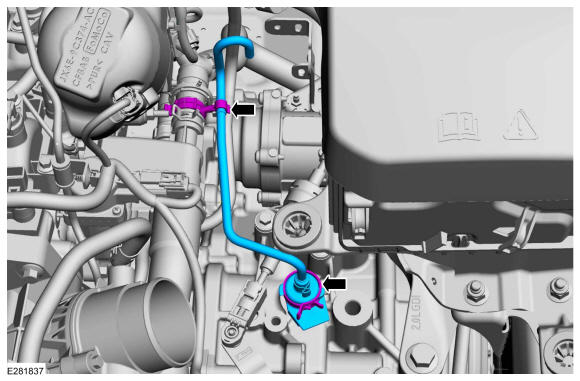

5. Loosen the clamp and the clip and remove the transmission ventilation tube.

   Courtesy of FORD MOTOR COMPANY

6. With the vehicle in NEUTRAL, position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
7. If equipped. Remove the retainers and the underbody shield.

   Courtesy of FORD MOTOR COMPANY

8. NOTE: Be prepared to collect escaping fluid.
   NOTE: If an internal problem is suspected, drain the transmission fluid through a paper filter. A small amount of metal or friction particles may be found from normal wear. If an excessive amount of metal or friction material is present, the transmission will need to be overhauled.

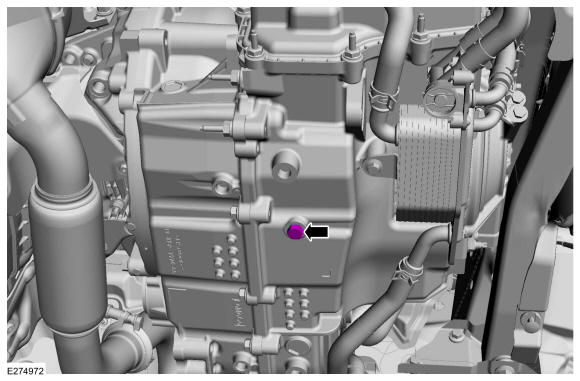

   • Remove the transmission fluid drain plug and drain the fluid.
   • Install the transmission fluid drain plug.

     Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY

Filling

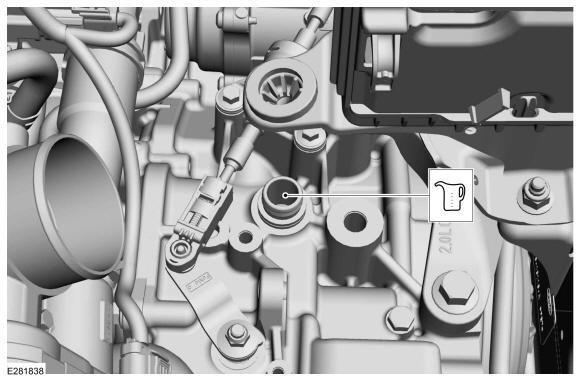

1. Fill the transmission fluid. Refer to Specifications .

   Material

   : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

   Courtesy of FORD MOTOR COMPANY

2. Install the transmission ventilation tube and attach the clip and the clamp.

   Courtesy of FORD MOTOR COMPANY

   1.5L EcoBlue (70kW/95PS) (Z2)/1.5L EcoBlue (90kW/120PS) (BE)

3. Install the air cleaner tube and the clamp.

   Courtesy of FORD MOTOR COMPANY

4. Refer to the appropriate repair information.

   2.0L Duratec-HE (110kW/150PS) - MI4

5. • Install the air cleaner tube.
   • Attach the quick release couplings.
   • Install the clamp.

   Courtesy of FORD MOTOR COMPANY

6. Refer to: Air Cleaner .
7. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
