Auto-Start-Stop Accumulator: Installation

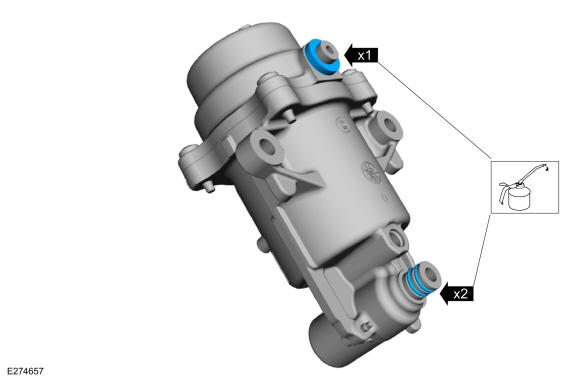

  1. Install and lubricate the start/stop accumulator O-rings with petroleum jelly.

    Material

    : Petroleum Jelly

    GFD572124Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
  3. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
