Transmission Case Reseal
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING
Special Tool(s) / General Equipment
| 205-153 (T80T-4000-W) Handle | |
|---|---|
| 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft T83-4000-A TKIT-1983-F TKIT-1983-FLM TKIT-1983-FX | |
| 307-003 (T57L-500-B) Holding Fixture, Transmission | |
| 307-091 Handle, Torque Converter TKIT-2009TC-F | |
| 307-566 Retainer, Torque Converter TKIT-2006C-FFMFLM TKIT-2006C-LM TKIT-2006C-ROW | |
| 307-758 Installer, Axle Seal - FWD | |
| 307-760 Installer, Converter Seal | |
| 307-761 Installer, Turbine Seal | |
| 307-762 Staking Tool, Turbine Seal | |
| 307-763 Tool, Turbine Seal Deburring | |
| 307-764 Installer/Sizer, Stator Teflon Seal | |
| 307-765 Protector, Turbine Seal | |
| 307-769 Fixture, Bench Mount | |
| Puller |
Materials
| Name | Specification |
|---|---|
| Motorcraft® Ultra Silicone Sealant TA-29 | WSS-M4G323-A8 |
| Motorcraft® MERCON® ULV Automatic Transmission Fluid XT-12-QULV | WSS-M2C949-A, MERCON® ULV |
Repair
- Remove the transmission. Refer to: Transmission .
- For information on component views and base part numbers. Refer to: Transmission Description .

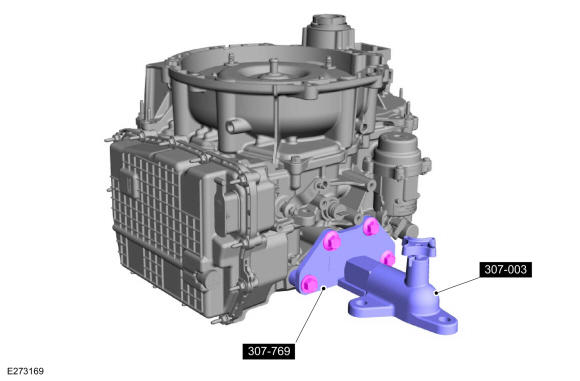

- Install the special tool and secure the transmission to the bench mounted fixture. Use Special Service Tool: 307-769 Fixture, Bench Mount, 307-003 (T57L-500-B) Holding Fixture, Transmission.

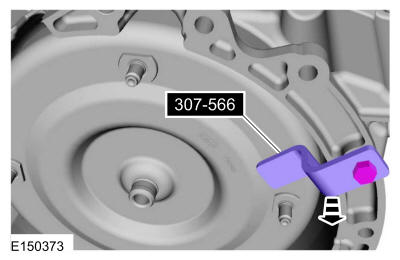

- Remove the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
-
NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

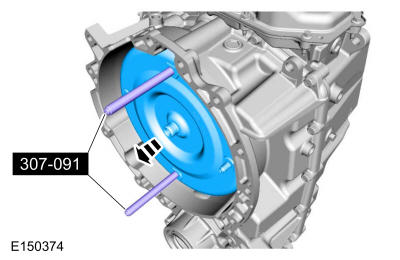

Using the special tools, remove the torque converter from the transmission. Use Special Service Tool: 307-091 Handle, Torque Converter.

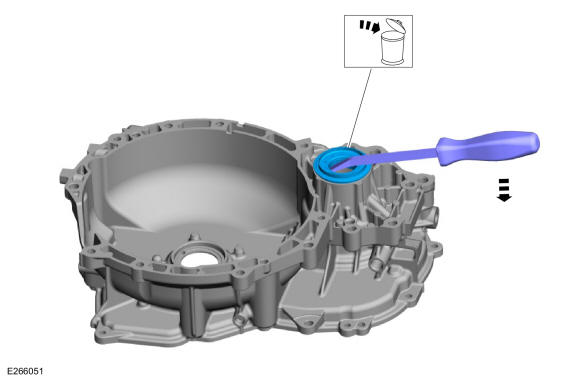

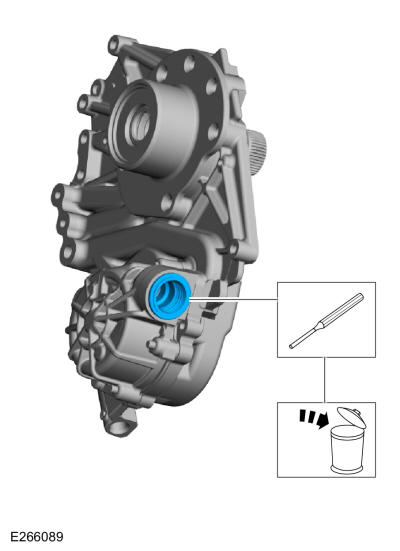

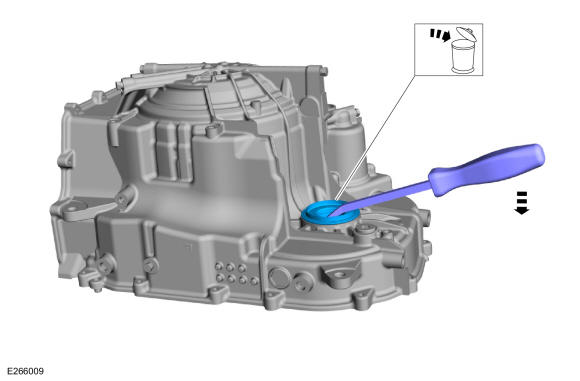

- Remove and discard the LH halfshaft seal.
- Remove and discard the RH halfshaft seal.
-
NOTE: Note the location of the stud bolts for assembly.

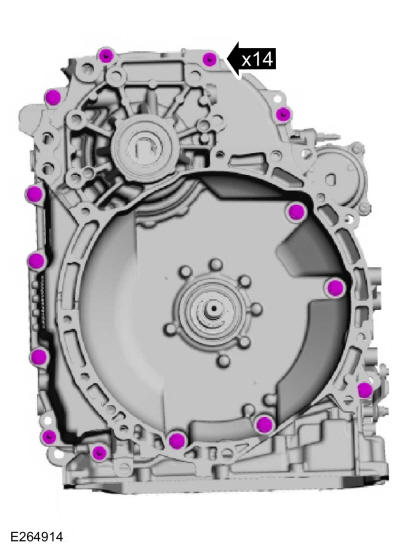

Remove the torque converter housing bolts.

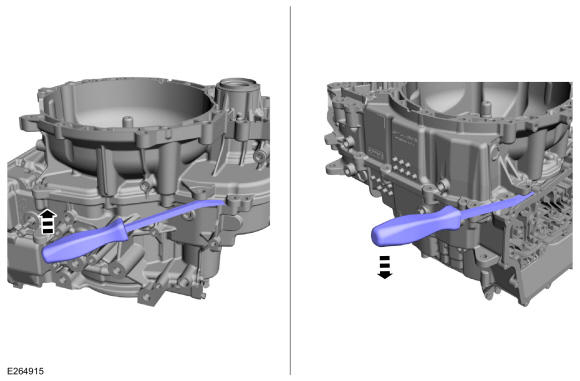

- Pry the torque converter housing loose from the transmission case.

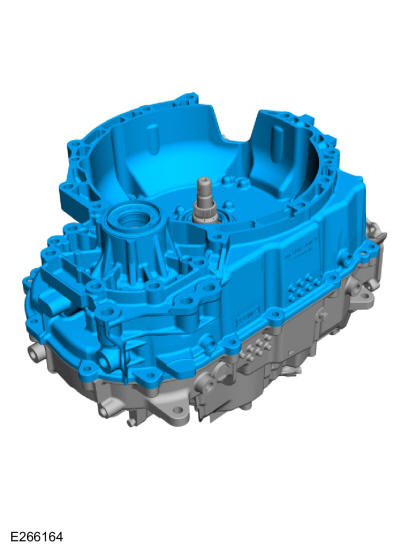

- Remove the torque converter housing from the transmission case.

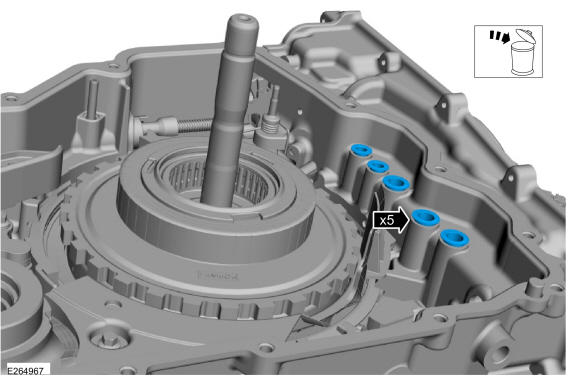

- Remove and discard the clutch feed seals.
-
-
NOTE: If the LH transmission case bushing or the LH halfshaft bushing surface shows signs of excessive wear or damage, a new LH transmission case bushing and a new LH halfshaft must be installed, or excessive noise or transmission failure can occur.
Clean and inspect the LH transmission case bushing and the bushing surface on the LH halfshaft for damage or excessive wear. If the LH transmission case bushing or the LH halfshaft shows signs of excessive wear or damage, install new components. Refer to: the appropriate Service Information .
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

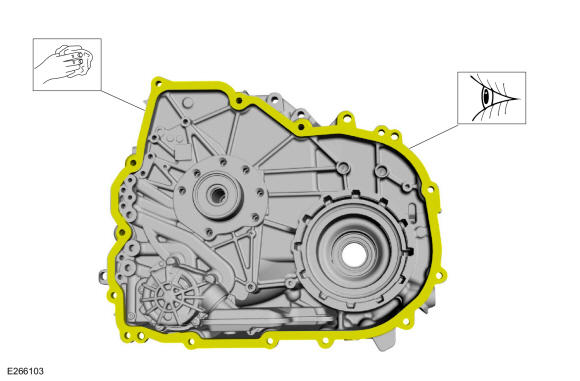

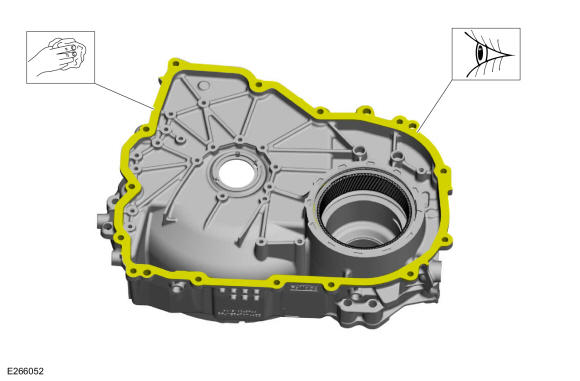

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .
-
-
- Inspect the torque converter housing and the differential ring gear for damage or excessive wear. If the differential ring gear shows signs of excessive wear or damage replace the differential ring gear.
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.
Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .

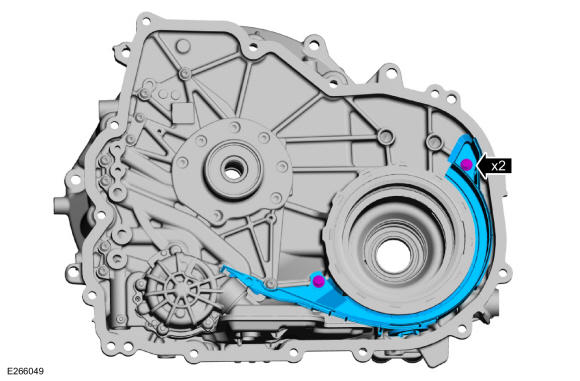

- Remove the bolts and the oil baffle.

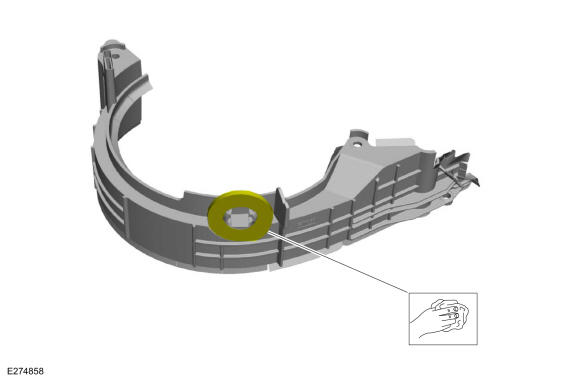

- Clean the magnet on the bottom of the oil baffle.
- Remove the bolts and the transmission fluid pump assembly.

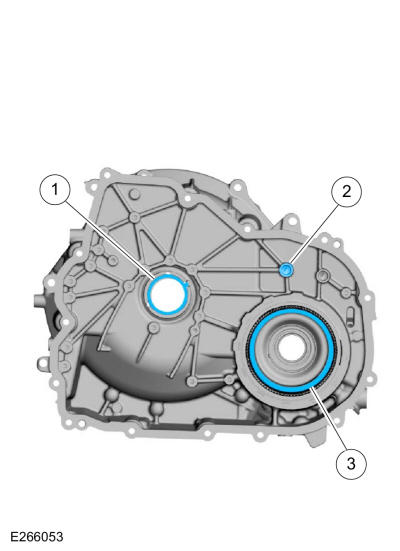

- Remove, clean and inspect the following items for the torque converter housing.
- Plastic thrust washer.
- Chain snubber assembly lubrication seal.
- No. 17 thrust bearing.

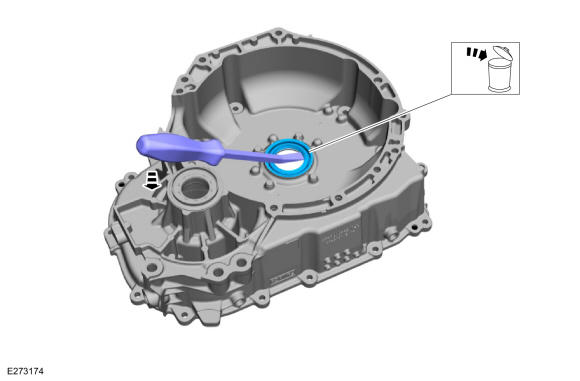

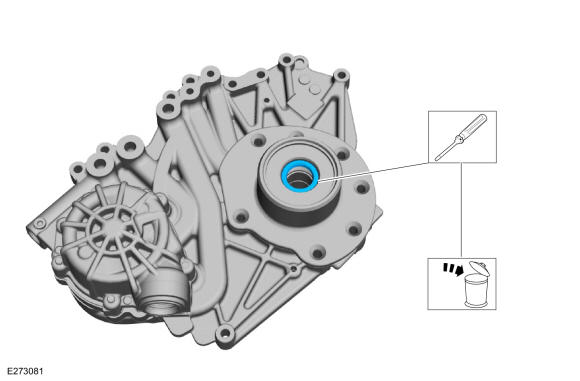

- Remove and discard the torque converter hub seal.
-

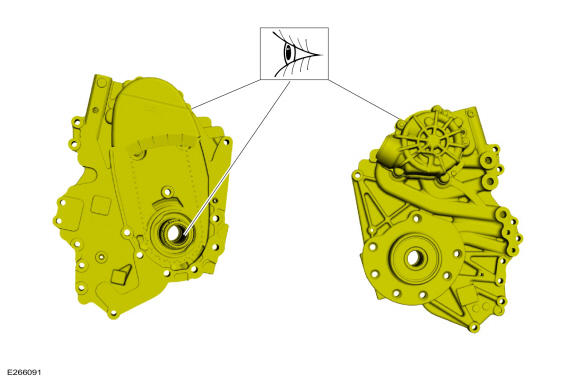

- Inspect the torque converter housing and the differential ring gear for damage or excessive wear. If the differential ring gear shows signs of excessive wear or damage replace the differential ring gear. Refer to: the appropriate Service Information .
-
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs, or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

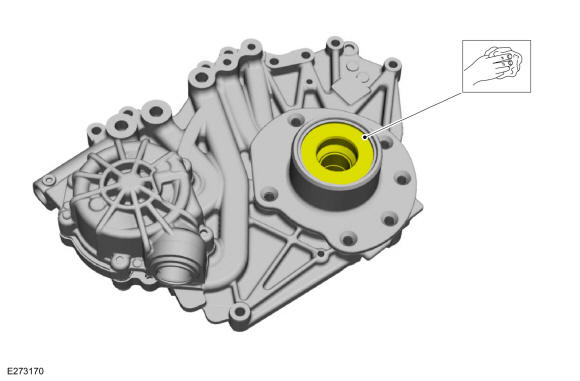

Make sure that the mating faces are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation .
-
NOTE: Note the orientation of the transmission fluid filter to the fluid pump assembly.

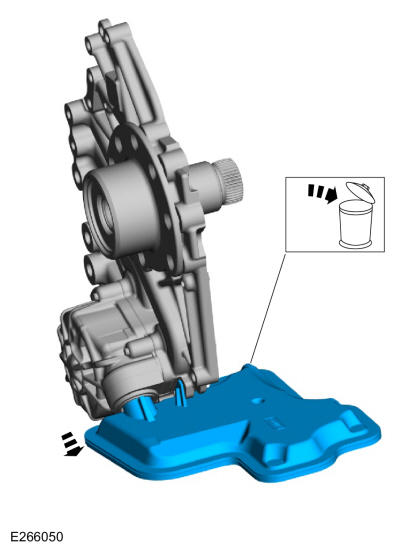

Remove and discard the transmission fluid filter from the pump assembly.
-
NOTE: Do not disassemble the oil pump assembly.
Inspect the oil pump assembly for damage or excessive wear and install new, if necessary.
- Remove and discard the transmission fluid filter seal.

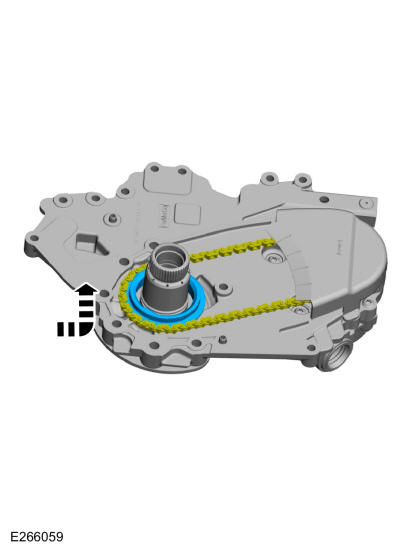

- Remove the oil pump drive sprocket.
-
NOTE: Note position of locating tab on thrust washer.
Remove the oil pump drive sprocket thrust washer.

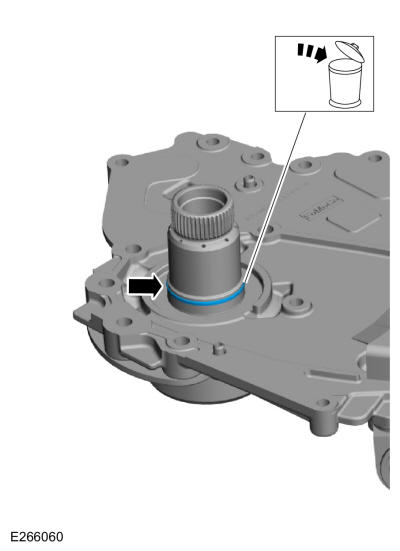

- Remove and discard the stator seal.

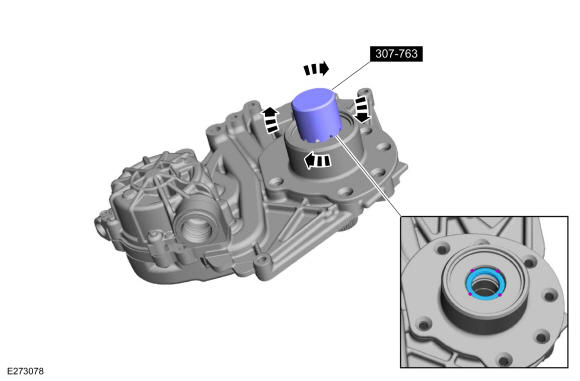

- Using the special tool, debur the turbine shaft seal bore opening. Use Special Service Tool: 307-763 Tool, Turbine Seal Deburring.
- Remove and discard the turbine shaft seal. Use the General Equipment: Puller
- Clean the turbine shaft seal bore.
- Place a new turbine shaft seal on the special tool. Use Special Service Tool: 307-761 Installer, Turbine Seal.

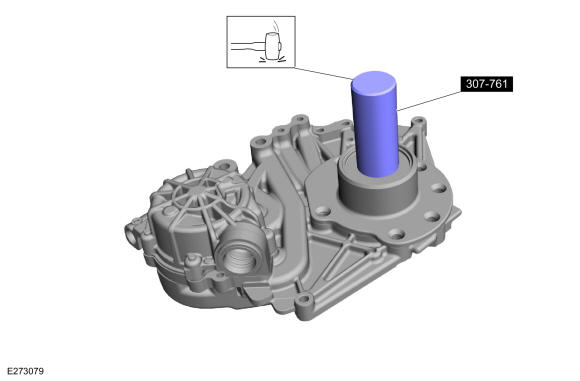

- Using the special tool, install the turbine shaft seal. Use Special Service Tool: 307-761 Installer, Turbine Seal.

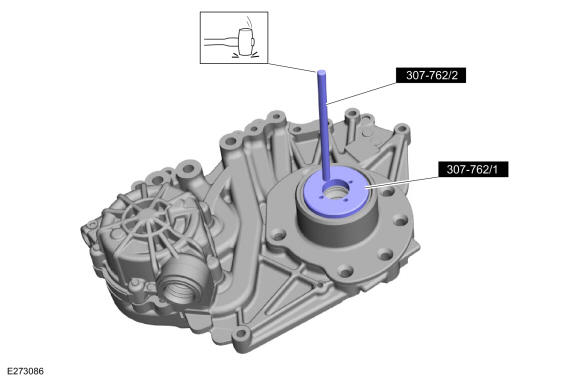

- Using the special tool, stake the turbine shaft seal in the oil pump housing in four locations. Use Special Service Tool: 307-762 Staking Tool, Turbine Seal.

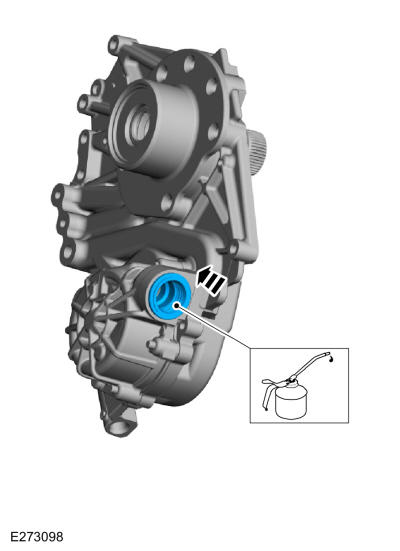

- Install a new transmission fluid filter seal. Lubricate the transmission fluid filter seal with clean transmission fluid.
Material
: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)
- Using the special tools, install the stator seal. Use Special Service Tool: 307-764 Installer/Sizer, Stator Teflon Seal.
-

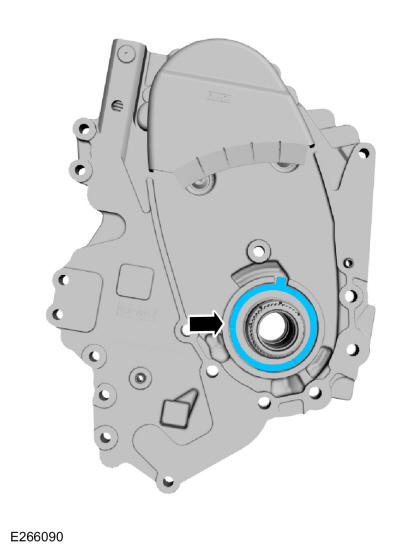

NOTE: Note position of locating tab on thrust washer.

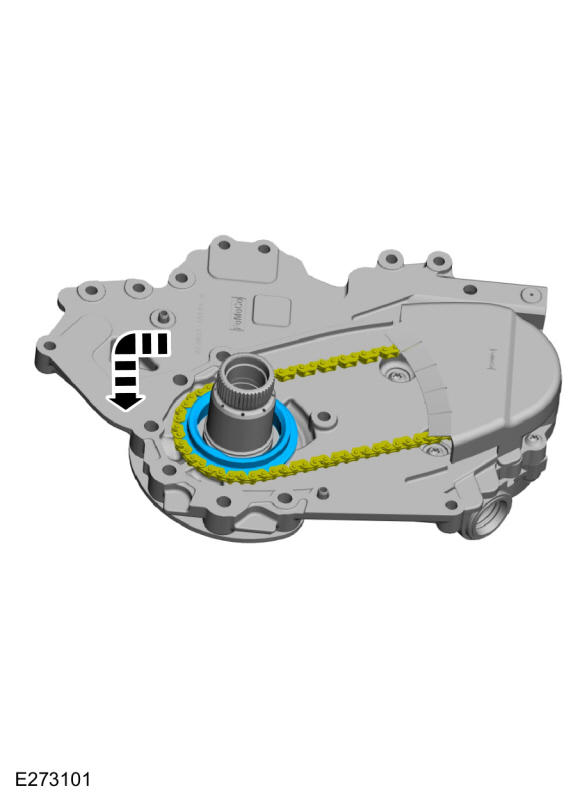

Install the oil pump drive sprocket plastic thrust washer.
- Position the oil pump drive chain and install the oil pump drive gear.
-
NOTE: The special tool is removed just prior to torque converter installation.

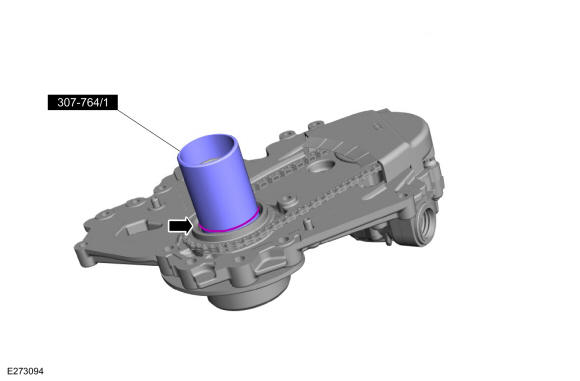

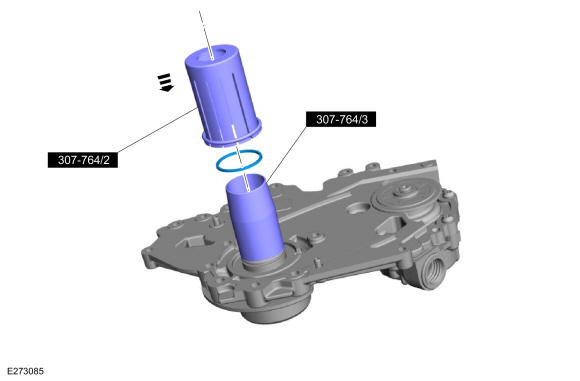

Install the special tool to size the Teflon® seal. Install the O-ring seal around the special tool to hold the oil pump drive sprocket in place during assembly. Use Special Service Tool: 307-764 Installer/Sizer, Stator Teflon Seal.
- Install a new transmission fluid filter.

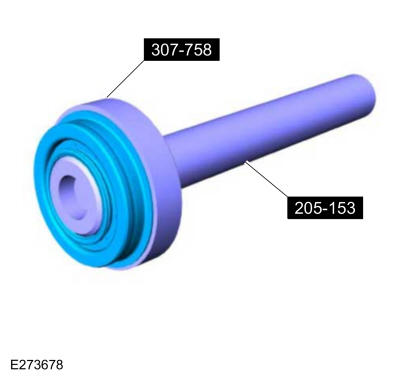

- Assemble the special tools and install a new RH halfshaft seal on the special tool. Use Special Service Tool: 307-758 Installer, Axle Seal -FWD, 205-153 (T80T-4000-W) Handle.

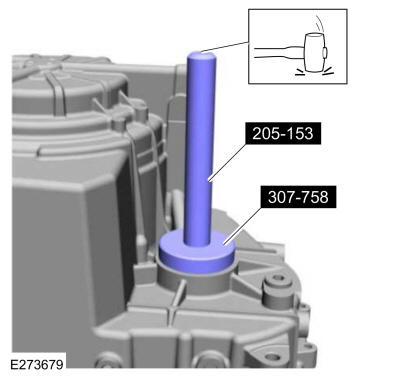

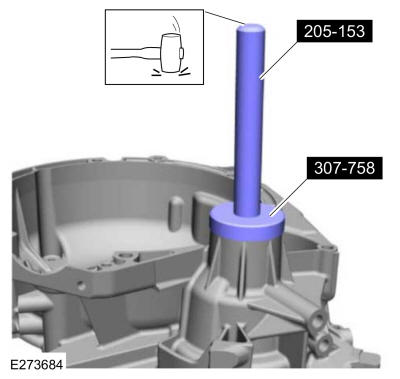

- Using the special tools, install the new RH halfshaft seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-758 Installer, Axle Seal -FWD.

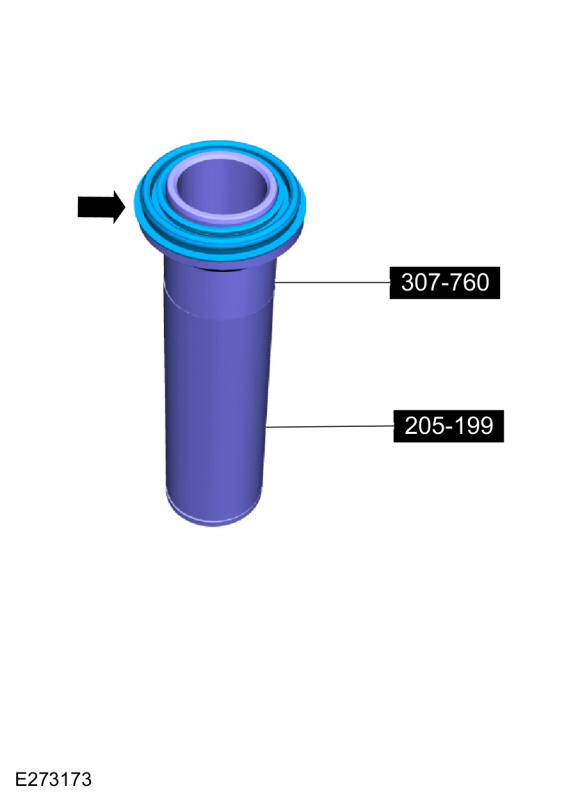

- Place a new torque converter hub seal on the special tool. Use Special Service Tool: 307-760 Installer, Converter Seal, 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft.
- Using the special tools, install the torque converter hub seal. Use Special Service Tool: 307-760 Installer, Converter Seal, 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft.
- Install the following items into the torque converter housing.
- Plastic thrust washer.
- Chain snubber assembly lubrication seal.
- No. 17 thrust bearing.

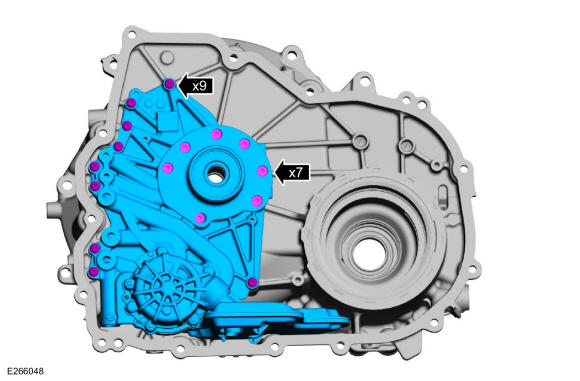

- Install the transmission fluid pump assembly and the bolts to the torque converter housing.
Torque: 97 lb.in (11 Nm)
- Install the oil baffle and the bolts.
Torque: 97 lb.in (11 Nm)

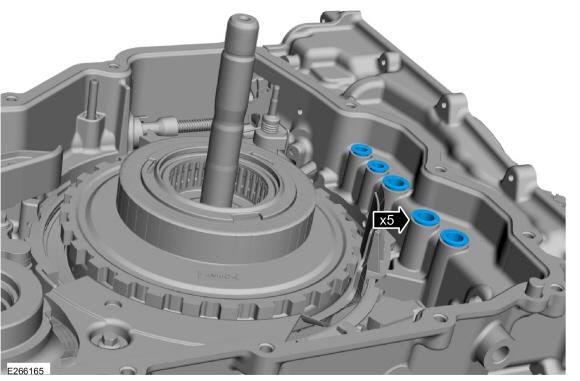

- Install the 5 new clutch feed seals.

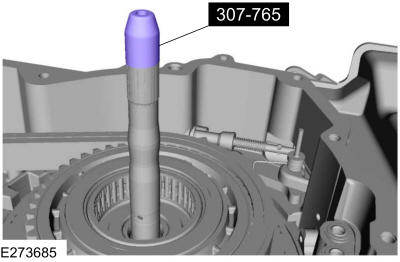

- Install the special tool on the input shaft. Use Special Service Tool: 307-765 Protector, Turbine Seal.

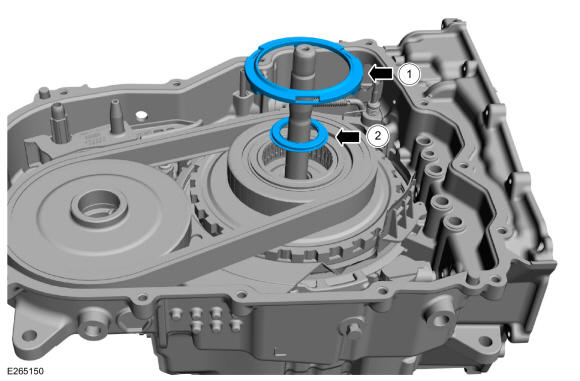

- Verify the thrust washer and thrust bearing are correctly installed.
- Drive sprocket thrust washer.
- No. 13 thrust washer.
-
NOTE: Be sure the sealing surfaces of the torque converter housing and the transmission housing are free of oil before applying silicone.

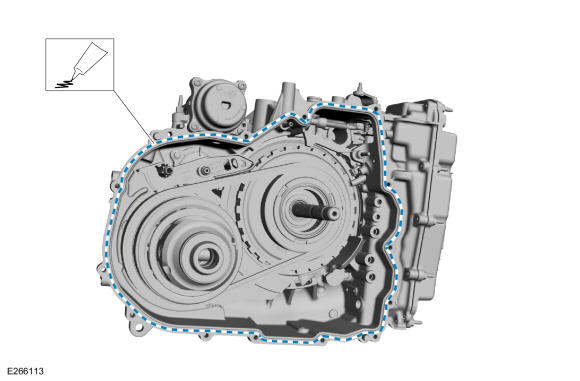

Apply silicone to the sealing surface of the transmission case.
Material
: Motorcraft® Ultra Silicone Sealant / TA-29 (WSS-M4G323-A8)
- Install the torque converter housing on the transmission case.
-
NOTE: Be sure the torque converter housing stud bolt is in the correct location as noted during disassembly.
Install the torque converter housing bolts and the torque converter housing stud bolt.
Torque: 18 lb.ft (25 Nm)

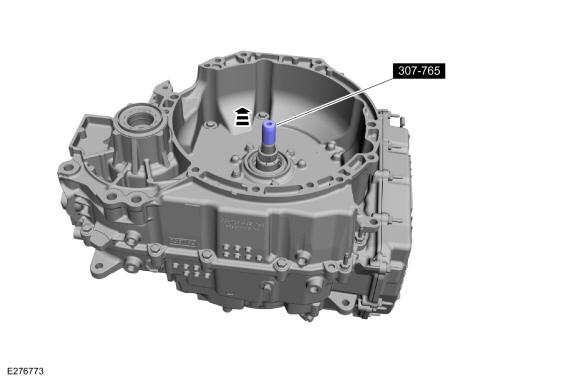

- Remove the special tool from the input shaft. Use Special Service Tool: 307-765 Protector, Turbine Seal.
- Assemble the special tools. Install a new LH halfshaft seal on the special tool. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-758 Installer, Axle Seal -FWD.
- Using the special tools, install the new LH halfshaft seal in the transmission case. Use Special Service Tool: 205-153 (T80T-4000-W) Handle, 307-758 Installer, Axle Seal -FWD.
-

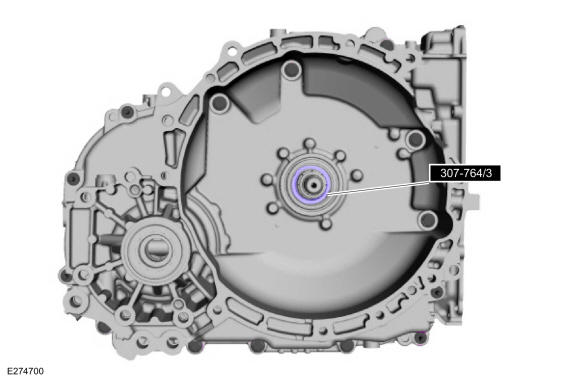

NOTE: The stator seal sizing tool must remain installed until the torque converter is installed.
Remove the stator seal sizing tool. Use Special Service Tool: 307-764 Installer/Sizer, Stator Teflon Seal.
-
NOTE: The torque converter is heavy. Be careful not to drop it or damage will result.

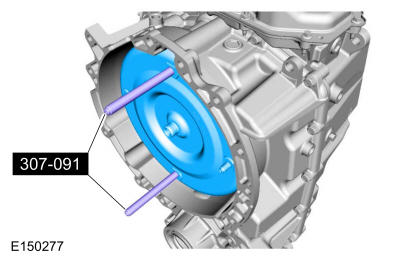

Using the special tools, install the torque converter. Use Special Service Tool: 307-091 Handle, Torque Converter.

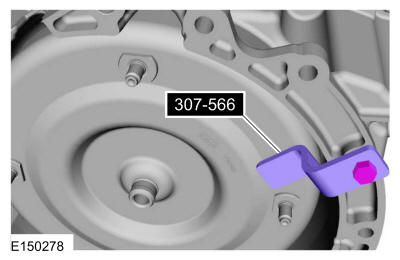

- Install the special tool. Use Special Service Tool: 307-566 Retainer, Torque Converter.
- Remove the transmission from the bench-mounted holding fixture and the special tool. Remove Special Service Tool: 307-003 (T57L-500-B) Holding Fixture, Transmission. Use Special Service Tool: 307-769 Fixture, Bench Mount.
- Install the transmission. Refer to: Transmission .
