Removal And Installation: Flexplate: Installation
WARNING: This page is about a different variant/trim than selected.
-
NOTE: Make sure that new components are installed.

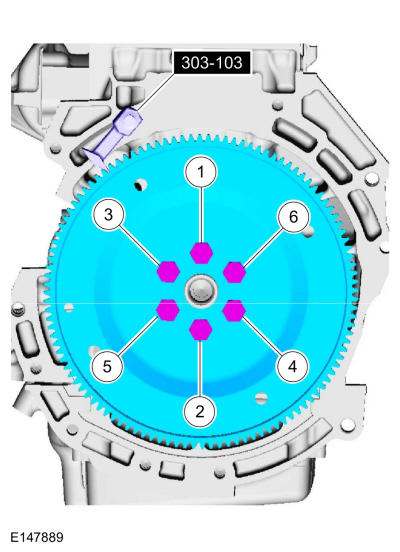

- Install the flexplate and the new bolts. Tighten in sequence shown in illustration in 3 stages.
Torque
:Stage 1: 37 lb.ft (50 Nm)
Stage 2: 59 lb.ft (80 Nm)
Stage 3: 83 lb.ft (112 Nm)
- Remove Special Service Tool: 303-103 (T74P-6375-A) Holding Tool, Flywheel.
- Install the flexplate and the new bolts. Tighten in sequence shown in illustration in 3 stages.
- Install the transmission. Refer to: Transmission .
