Fuel Tank - Vehicles With: Aft of Axle Fuel Tank: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fuel systems will vary in configuration with different wheelbases. Typical application shown in illustration.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Drain the fuel tank. Refer to: Fuel Tank Draining .
-
NOTE: Typical application shown in illustration.

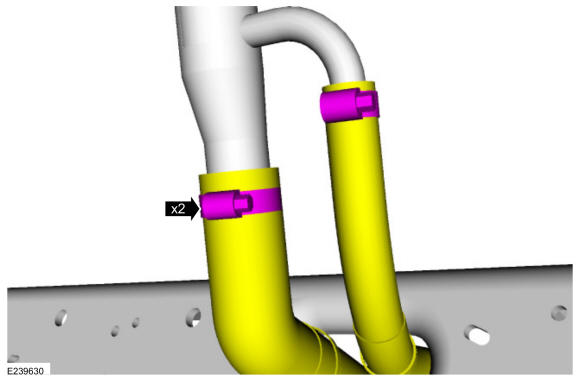

Loosen the hose clamps and disconnect the fuel tank filler pipe and vent hose from the fuel filler neck.
Torque: 44 lb.in (5 Nm)
-
NOTE: Typical application shown in illustration.
Using a suitable lifting and lowering tool, support the fuel tank. Remove the fuel tank strap bolts and partially lower the fuel tank for access.
Torque: 66 lb.ft (90 Nm)
-
NOTE: Typical application shown in illustration.

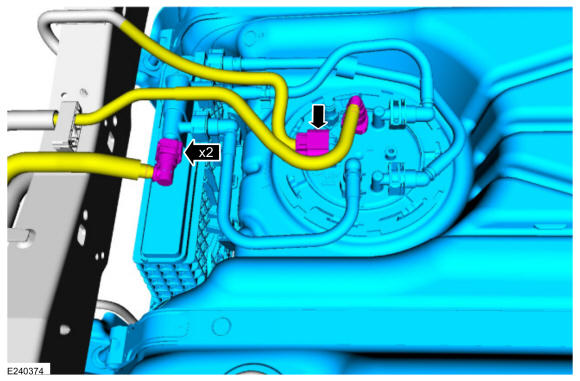

Disconnect the electrical connector and the quick release couplings. Remove the fuel tank assembly from the vehicle. Refer to: Quick Release Coupling .
-
NOTE: Typical application shown in illustration.

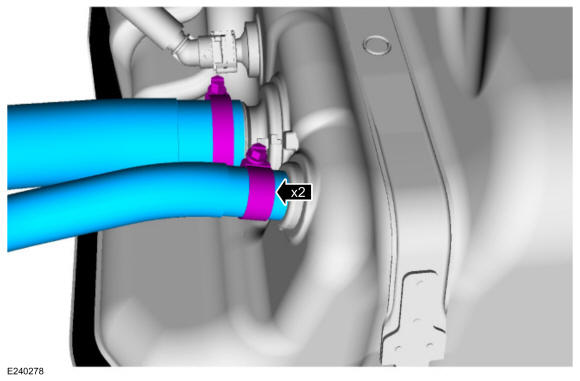

If necessary, remove the fuel filler pipe rubber hoses from the fuel tank.
Torque: 44 lb.in (5 Nm)
-
NOTE: Typical application shown in illustration.

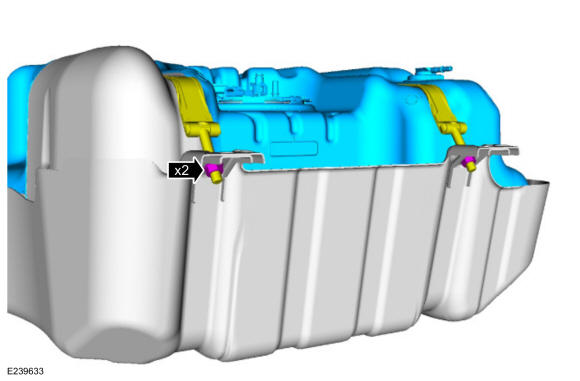

If necessary, remove the fuel tank shield strap nuts and remove the fuel tank.
Torque: 53 lb.ft (72 Nm)
