Fuel Lines - Vehicles With: Midship Fuel Tank: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
-

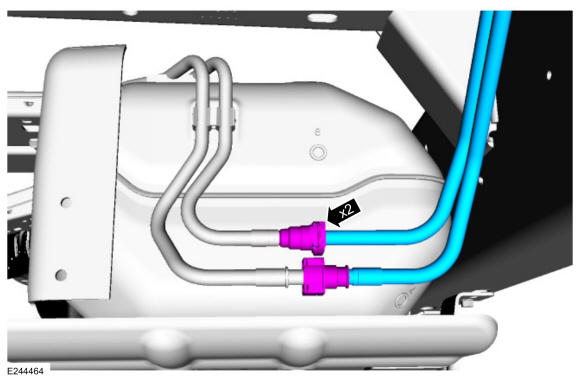

NOTE: Typical application shown.
Disconnect the fuel line quick release couplings. Refer to: Quick Release Coupling .
-

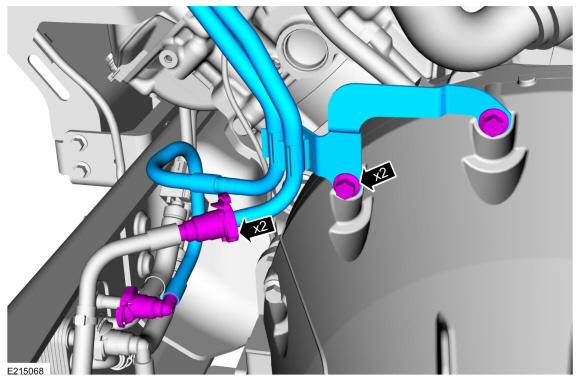

NOTE: Typical application shown in illustration.
- Remove the bolts.
Torque: 35 lb.ft (48 Nm)
- Disconnect the quick release couplings and remove the fuel lines. Refer to: Quick Release Coupling .
- Remove the bolts.
-
NOTE: Typical application shown.
Disconnect the fuel line quick release coupling and detach the hose from the routing clips. Refer to: Quick Release Coupling .
-
NOTE: Typical application shown in illustration.
Disconnect the fuel line quick release coupling and detach the hose from the routing clips. Refer to: Quick Release Coupling .
-
NOTE: Typical application shown in illustration.
Disconnect the fuel line quick release couplings and remove the fuel lines. Refer to: Quick Release Coupling .
