Fuel Injector Supply Tube: Installation

Left side

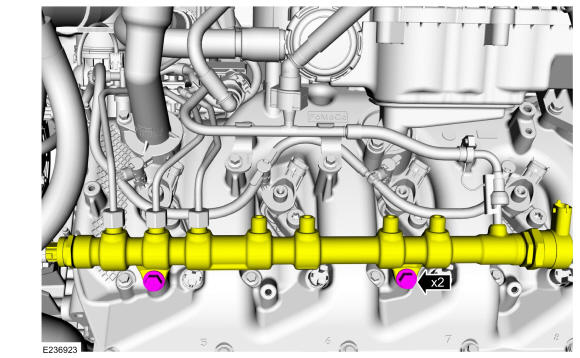

1. Loosen the fuel rail mounting bolts.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Use a deep-well crowfoot socket to tighten the fuel injector supply tube.

   Position the new fuel injector supply tubes between the fuel rail and the fuel injectors. Fully hand-start and seat the fuel injector supply tube fittings onto the fuel rail and the fuel injectors. Tighten in the stages and in the sequence shown in illustration.

   Torque;

   1-2 fuel rail mounting bolts : 18 lb.ft (24 Nm)

   3-6 fuel injector supply tube fittings to fuel injectors : 89 lb.in (10 Nm)

   7-10 fuel injector supply tube fittings to fuel rail : 89 lb.in (10 Nm)

   3-6 fuel injector supply tube fittings to fuel injectors : 65°

   7-10 fuel injector supply tube fittings to fuel rail : 65°

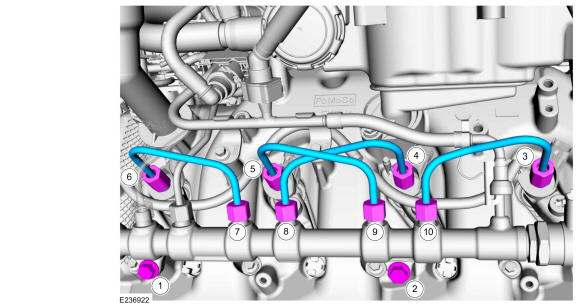

   Fig 1: Fuel Rail and Fuel Injectors Tightening Sequence

   Courtesy of FORD MOTOR COMPANY
3. Push down on the fuel injector return hose fitting tabs to connect the fuel injector return hose fittings to the fuel injectors.

   Courtesy of FORD MOTOR COMPANY

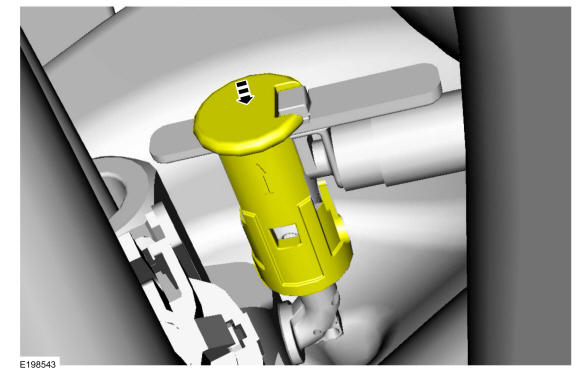

4. Push down on the center of the fuel injector return hose fittings to lock the fittings to the fuel injectors.

   Courtesy of FORD MOTOR COMPANY

5. • Attach the fuel injector fuel return line retainer to the fuel rail.
   • Connect the fuel injector electrical connectors.
   • Connect the fuel pressure control valve electrical connector.

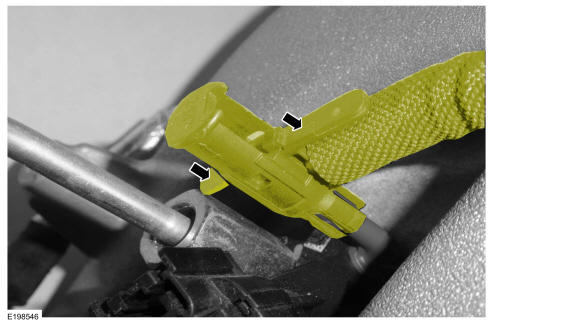

   • Connect the fuel charging wiring harness retainers to the fuel rail.

   Courtesy of FORD MOTOR COMPANY

6. Install the left engine sound shield and then install the left engine sound shield retainers.

   Courtesy of FORD MOTOR COMPANY

7. Install the left fender splash shield. Refer to: Fender Splash Shield .

   Right side

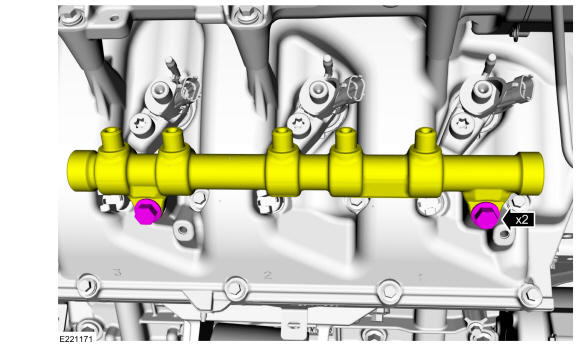

8. Loosen the fuel rail mounting bolts.

   Courtesy of FORD MOTOR COMPANY

9. NOTE: Use a deep-well crowfoot socket to tighten the fuel injector supply tube.

   Position the new fuel injector supply tubes between the fuel rail and the fuel injectors. Fully hand-start and seat the fuel injector supply tube fittings onto the fuel rail and the fuel injectors. Tighten in the stages and in the sequence shown in illustration.

   Torque:

   1-2 fuel rail mounting bolts : 18 lb.ft (24 Nm)

   3-6 fuel injector supply tube fittings to fuel injectors : 89 lb.in (10 Nm)

   7-10 fuel injector supply tube fittings to fuel rail : 89 lb.in (10 Nm)

   3-6 fuel injector supply tube fittings to fuel injectors : 65°

   7-10 fuel injector supply tube fittings to fuel rail : 65°

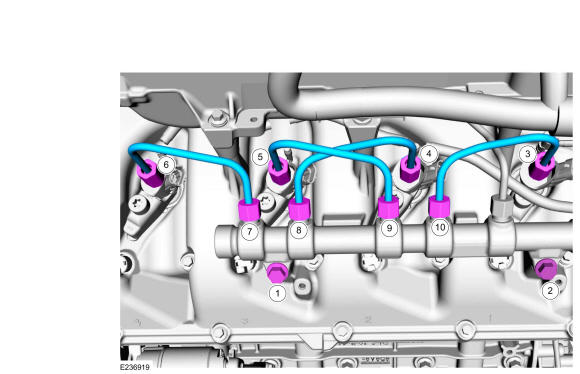

   Fig 2: Fuel Rail and Fuel Injectors Tightening Sequence

   Courtesy of FORD MOTOR COMPANY
10. Push down on the fuel injector return hose fitting tabs to connect the fuel injector return hose fittings to the fuel injectors.

    Courtesy of FORD MOTOR COMPANY

11. Push down on the center of the fuel injector return hose fittings to lock the fittings to the fuel injectors.

    Courtesy of FORD MOTOR COMPANY

12. • Connect the fuel injector electrical connectors.
    • Connect the fuel charging wiring harness retainers to the fuel rail.

    Courtesy of FORD MOTOR COMPANY

13. Install the right engine sound shield and then install the right engine sound shield retainers.

    Courtesy of FORD MOTOR COMPANY

14. Install the right fender splash shield. Refer to: Fender Splash Shield .
15. Install the air cleaner. Refer to: Air Cleaner .

    Both sides

16. Connect the battery. Refer to: Battery Disconnect and Connect .
17. Bleed the Fuel System. Refer to: Fuel System Bleeding .
