Fuel Injection Pump Supply Tube Assembly: Removal

WARNING: This page is about a different car, the 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Do not work on the fuel system until the pressure has been released and the engine has cooled. Fuel in the high-pressure fuel system is hot and under very high pressure. High-pressure fuel may cause cuts and contact with hot fuel may cause burns. Failure to follow these instructions may result in serious personal injury.
NOTE: Fuel injection equipment is manufactured to very precise tolerances and fine clearances. To prevent fuel system damage, it is essential that absolute cleanliness is observed when working with these components.
NOTE: During the repair or installation of fuel-related components, cap, tape or otherwise appropriately protect all fuel openings to prevent the ingress of dirt or other contamination. Remove caps, tape and other protective materials prior to installation.
  1. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  2. Disconnect the battery. Refer to: Battery Disconnect and Connect .
  3. Remove the lower intake manifold. Refer to: Lower Intake Manifold .
  4. NOTE: It may be necessary to unthread the engine sound shield retainers from the engine.

    Remove the left engine sound shield retainers and then remove the left engine sound shield.

    GFD203541Courtesy of FORD MOTOR COMPANY
  5. Disconnect the fuel return tube quick connect coupling from the fuel injection pump return tube. Refer to: Quick Release Coupling .
    GFD203542Courtesy of FORD MOTOR COMPANY
  6. Disconnect the fuel rail-to-fuel injection pump return tube spring lock coupling from the rear of the left fuel rail. Refer to: Spring Lock Couplings .
    GFD203543Courtesy of FORD MOTOR COMPANY
  7. Disconnect the fuel pressure and temperature sensor electrical connector, release the wire retainer, then detach the fuel tube retainer.
    GFD203544Courtesy of FORD MOTOR COMPANY

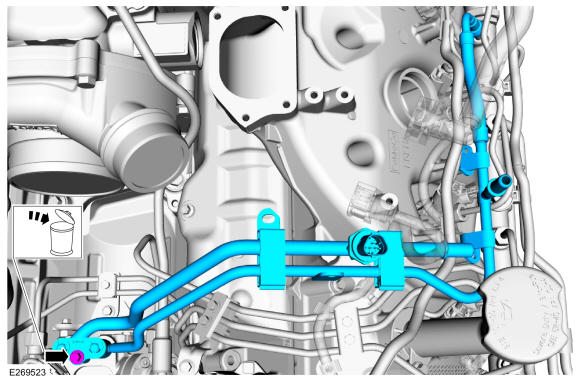

  8. Remove and discard the fuel injection pump supply tube assembly manifold bolt and then remove the fuel injection pump supply tube assembly.
    GFD203545Courtesy of FORD MOTOR COMPANY

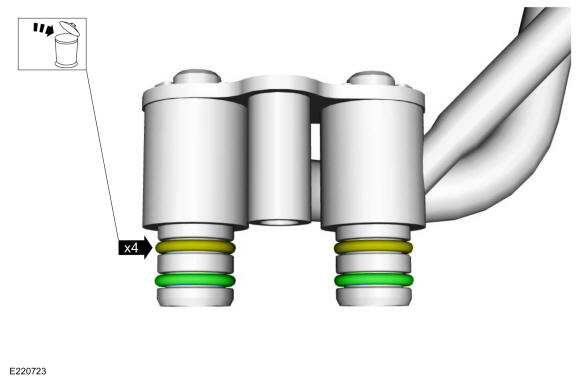

  9. Remove and discard the O-rings from the fuel injection pump supply tube assembly.
GFD203546Courtesy of FORD MOTOR COMPANY
