Fuel Tank Filler Pipe - Vehicles With: Aft of Axle Fuel Tank: Removal
WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Fuel systems will vary in configuration with different wheelbases. Typical application shown.
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Drain the fuel tank until the fuel level is at or below half of a tank. Refer to: Fuel Tank Draining .
-
NOTE: Typical application shown.

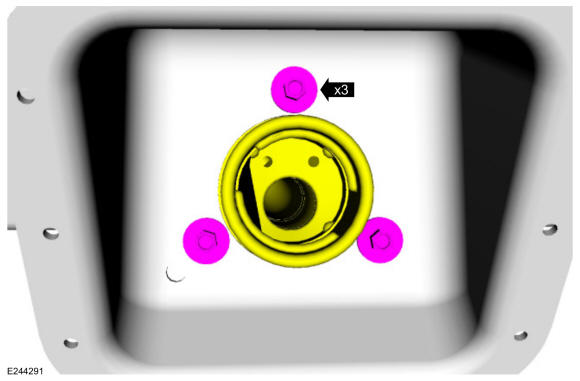

Remove the 3 screws from the filler pipe. Position the fuel filler pipe out of the fuel filler opening.
Torque: 106 lb.in (12 Nm)
-
NOTE: Typical application shown.
Using a suitable lifting and lowering tool, support the fuel tank. Remove the fuel tank strap bolts and partially lower the fuel tank for access.
Torque: 66 lb.ft (90 Nm)
-
NOTE: Typical application shown.
Loosen the hose clamps and disconnect the fuel tank filler pipe and vent hose from the fuel tank. Remove the fuel tank filler pipe.
Torque: 44 lb.in (5 Nm)
