Fuel Tank Draining
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM COLOR CODING .
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM | |
|---|---|
Draining
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the negative battery cable. Refer to: Battery Disconnect and Connect .
-
NOTE: Typical application shown.

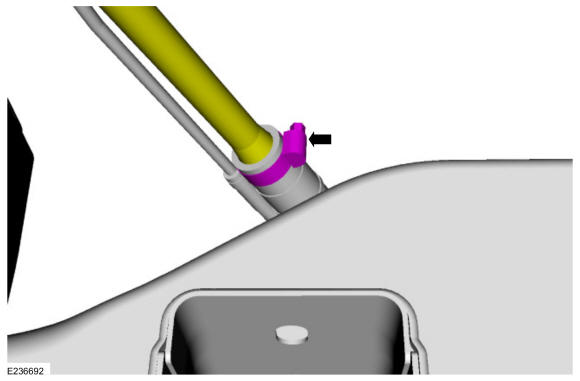

Loosen the clamp and disconnect the hose. Position the hose aside.
-
NOTE: Typical application shown.

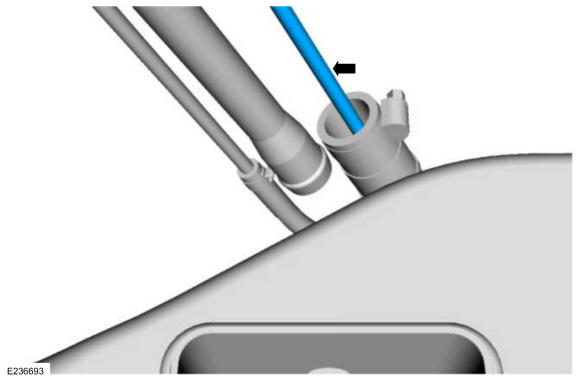

Insert the hose from the fuel storage tanker and siphon the fuel through the hose. Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
