Exhaust Manifold RH: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty and 2018 Ford F-450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
- Remove the following items:
- Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
- Air cleaner. Refer to: Air Cleaner .
- Transmission filler tube. Refer to: Transmission Filler Tube - 6.2L V8/6.8L Triton-30V - V10 .
- RH engine mount and bracket. Refer to: Engine Mount RH .
- Remove the bolts and the heat shield.
- Remove and discard the RH exhaust manifold nuts.
- Remove the RH exhaust manifold.
- Clean and inspect the exhaust manifold. Refer to: Exhaust Manifold Cleaning and Inspection .

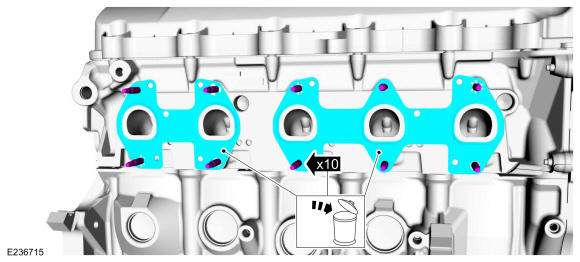

- Remove and discard the exhaust manifold gaskets and studs.
