Cylinder Head RH: Removal

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Release the fuel system pressure. Refer to: Fuel System Pressure Release .
  3. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  4. Remove the following items:

    1. Remove the cooling module. Refer to: Cooling Module .
    2. Remove the intake manifold. Refer to: Intake Manifold .
    3. NOTE: The RH timing chain can be removed and installed without removing the LH timing chain.

      Remove the RH timing chain. Refer to: Timing Chain .

    4. Remove the RH exhaust manifold. Refer to: Exhaust Manifold RH .

  5. Remove the nut and position the engine ground strap aside.
    GFD201288Courtesy of FORD MOTOR COMPANY
  6. Remove the bolts and position the coolant tubes aside.
    GFD201289Courtesy of FORD MOTOR COMPANY
  7. Remove and discard the coolant tube O-ring seal.
    GFD201290Courtesy of FORD MOTOR COMPANY
  8. Remove and discard the coolant tube O-ring seal.
    GFD201291Courtesy of FORD MOTOR COMPANY
  9. Disconnect the RH CMP sensor wiring harness electrical connector.
    GFD201292Courtesy of FORD MOTOR COMPANY

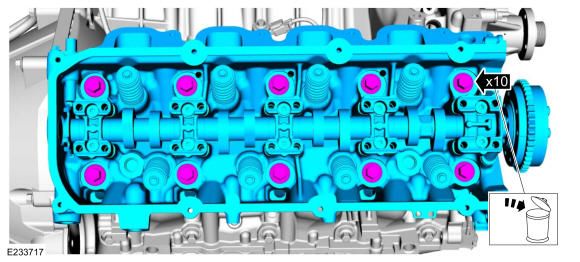

  10. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage may result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine. Failure to follow this instruction may cause engine damage.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

    • Remove and discard the cylinder head bolts.

    • Remove the cylinder head.

    GFD201293Courtesy of FORD MOTOR COMPANY

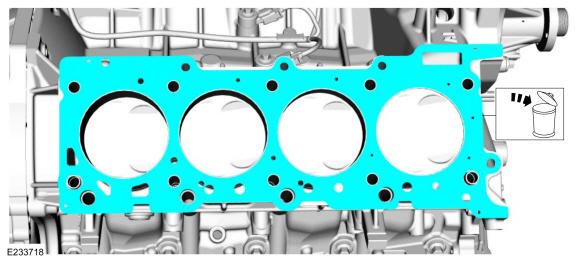

  11. Remove and discard the cylinder head gasket.
    GFD201294Courtesy of FORD MOTOR COMPANY

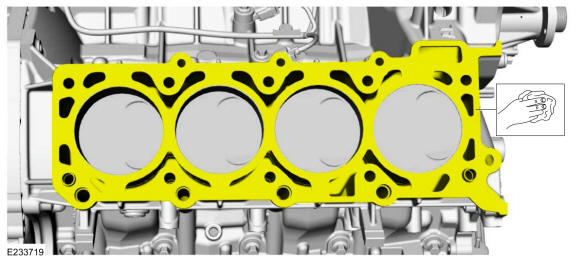

  12. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Clean the cylinder block bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the cylinder block mating surface.

    GFD201295Courtesy of FORD MOTOR COMPANY
  13. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface. Failure to follow this instruction may cause engine damage.
    NOTE: Clean the cylinder head bolt holes using compressed air. Make sure all coolant, oil or other foreign material is removed.

    • Clean and inspect the cylinder head mating surface.

GFD201296Courtesy of FORD MOTOR COMPANY
