Cylinder Head LH: Installation

WARNING: This page is about a different car, the 2018 Ford F-350 Super Duty and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

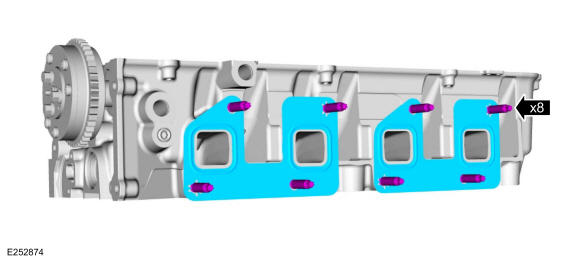

If necessary, install the exhaust manifold studs and gaskets.
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

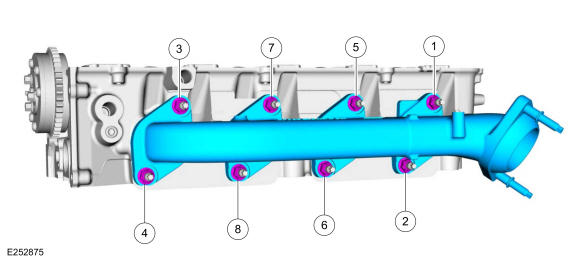

If necessary, install the exhaust manifold and the nuts and tighten in sequence shown.
Torque:

Stage 1: Tighten to: 18 lb.ft (24 Nm)

Stage 2: Tighten to: 23 lb.ft (31 Nm)

Fig 1: Exhaust Manifold Tightening Sequence LH
Courtesy of FORD MOTOR COMPANY
If necessary, install the exhaust manifold heat shield and the bolts.
Torque: 106 lb.in (12 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new cylinder head gasket.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure all coolant residue and foreign material are cleaned from the block surface and cylinder bore.

NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

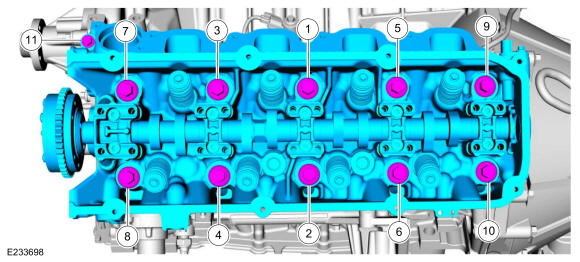

Install the cylinder head and the new bolts and tighten in 10 stages.

Torque:

Stage 1: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm)

Stage 2: Tighten bolts 1 through 10 to: 55 lb.ft (75 Nm)

Stage 3: Loosen: 180 °

Stage 4: Tighten bolts 1 through 10 to: 18 lb.ft (25 Nm)

Stage 5: Tighten bolts 1 through 10 to: 37 lb.ft (50 Nm)

Stage 6: Tighten bolt 11 to: 89 lb.in (10 Nm)

Stage 7: Tighten bolts 1 through 10 an additional: 90 °

Stage 8: Tighten bolts 1 through 10 an additional: 90 °

Stage 9: Tighten bolt 11 to: 177 lb.in (20 Nm)

Stage 10: Tighten bolt 11 an additional: 45 °

Fig 2: Cylinder Head Tightening Sequence LH
Courtesy of FORD MOTOR COMPANY
Connect the oil pressure switch wiring harness electrical connector and retainer.

Courtesy of FORD MOTOR COMPANY
Install the thermostat.

Courtesy of FORD MOTOR COMPANY
Install and lubricate the thermostat housing O-ring seal.

Courtesy of FORD MOTOR COMPANY
Install the thermostat housing and upper radiator hose assembly and the bolts.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Connect the LH CMP sensor and the CHT sensor wiring harness electrical connectors.

Courtesy of FORD MOTOR COMPANY
Position the engine ground strap and install the nut.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

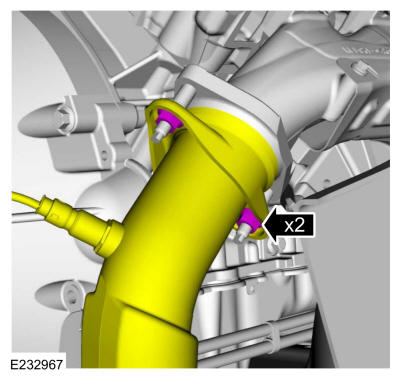

Install the new LH catalytic converter pipe-to-manifold nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the new RH catalytic converter pipe-to-manifold nuts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
1. Install the RH and LH timing chains. Refer to: Timing Chain .
2. Install the intake manifold. Refer to: Intake Manifold .
- Remove the oil pan drain plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
- Install the oil pan drain plug.
  Torque: 17 lb.ft (23 Nm)
Courtesy of FORD MOTOR COMPANY
Remove and discard the engine oil filter.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the oil filter gasket with clean engine oil.

Install a new engine oil filter.

Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil. Refer to: Specifications .
Material: Motorcraft ® SAE 5W-30 Synthetic Blend Motor Oil / XO-5W30-QSP (WSS-M2C946-A)

Courtesy of FORD MOTOR COMPANY
Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
Install the cooling module. Refer to: Cooling Module .
