Input Shaft Seal: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission. Refer to: Transmission .
-
- Using a floor crane, mount the transmission to a mounting stand.
Use the General Equipment: Mounting Stand
Use the General Equipment: Floor Crane
- Rotate the transmission to the upright position.
- Using a floor crane, mount the transmission to a mounting stand.

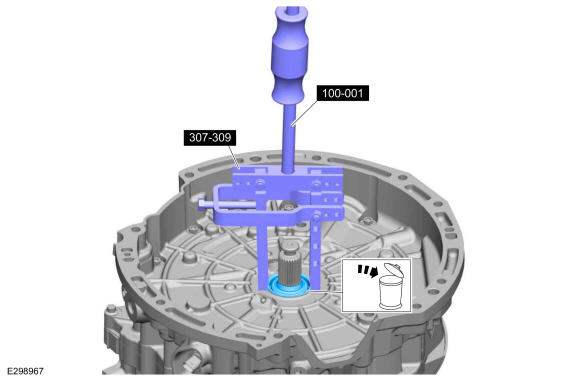

- Using the special tools, remove and discard the input shaft seal.
Use Special Service Tool: 307-309 Remover, Torque Converter Seal., 100-001 (T50T-100-A) Slide Hammer.
