Input Shaft Seal: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

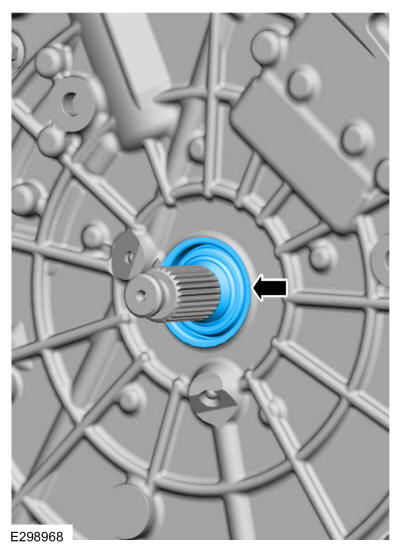

Position the input shaft seal.

Courtesy of FORD MOTOR COMPANY

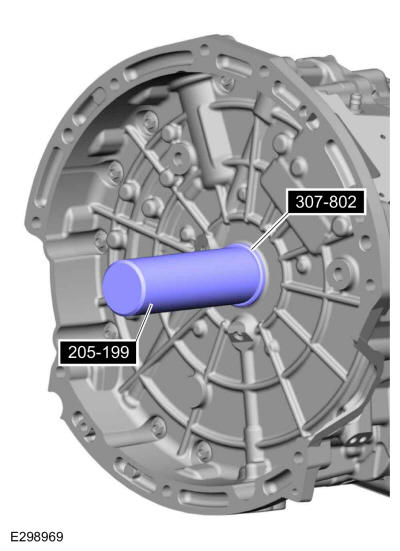

Using the special tools, install the input shaft seal.
Use Special Service Tool: 205-199 (T83T-3132-A1) Installer, Spindle/Axle Shaft., 307-802 Installer, Input Shaft.

Courtesy of FORD MOTOR COMPANY
- Rotate the transmission to the horizontal position.
  Use the General Equipment: Mounting Stand
- Using a floor crane, remove the transmission from the mounting stand.
  Use the General Equipment: Floor Crane
Courtesy of FORD MOTOR COMPANY
Install the transmission. Refer to: Transmission .
