Hybrid Drive Unit: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission. Refer to: Transmission .

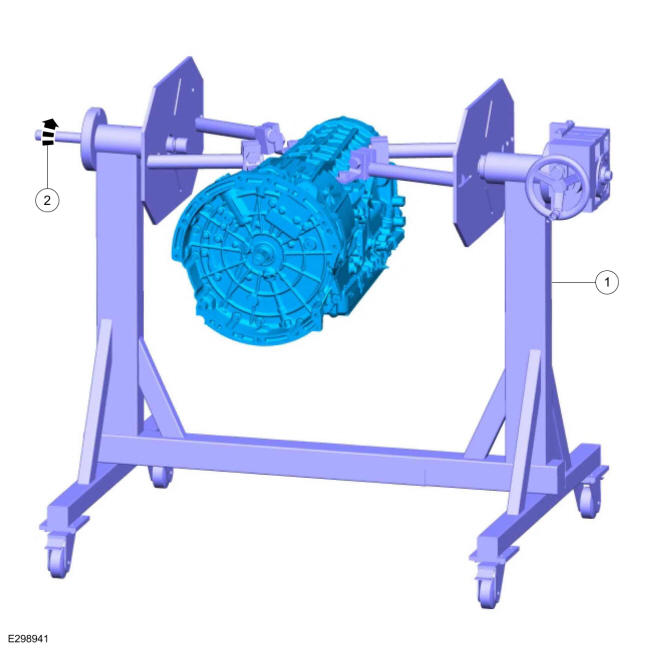

1. Using a floor crane, mount the transmission to a mounting stand.
  Use the General Equipment: Mounting Stand

  Use the General Equipment: Floor Crane
2. Rotate the transmission to the upright position.
Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.

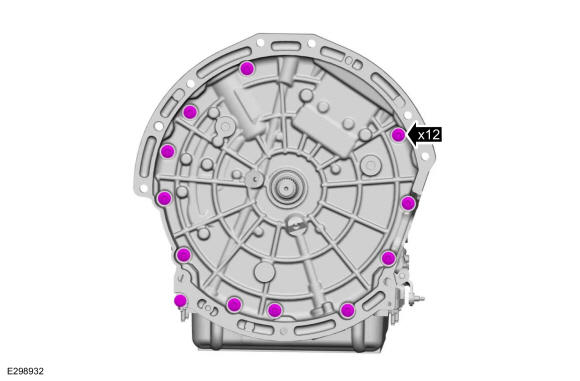

Remove the back hybrid drive unit bolts.

Courtesy of FORD MOTOR COMPANY
NOTE: Note the position of the components before removal.

Remove the front hybrid drive unit bolts.

Courtesy of FORD MOTOR COMPANY
Install the special tools.
Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer., 307-651-03 Lift Fixture Adapter (MHT).

Courtesy of FORD MOTOR COMPANY
NOTE: Hold the hybrid drive unit in the upright position. Failure to hold the hybrid drive unit in the upright position can damage the electric motor.

Using a floor crane and the special tools, remove the hybrid drive unit.

Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer., 307-651-03 Lift Fixture Adapter (MHT).

Use the General Equipment: Floor Crane

Courtesy of FORD MOTOR COMPANY

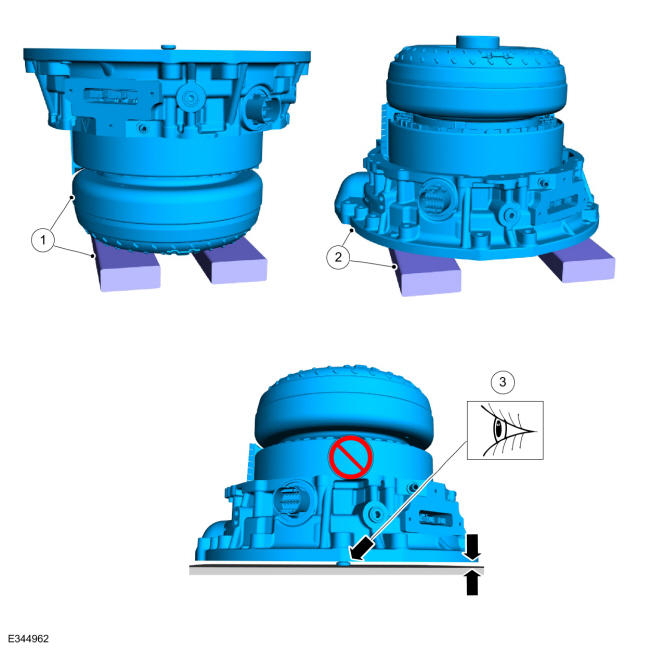

Position the hybrid drive unit on 2 blocks of wood.
1. Correct Use the General Equipment: Wooden Block
2. Correct Use the General Equipment: Wooden Block
3. NOTE: Do not place the hybrid drive unit with the torque converter facing up without using wooden blocks or damage to the input shaft snap ring can occur.

  Incorrect
Courtesy of FORD MOTOR COMPANY

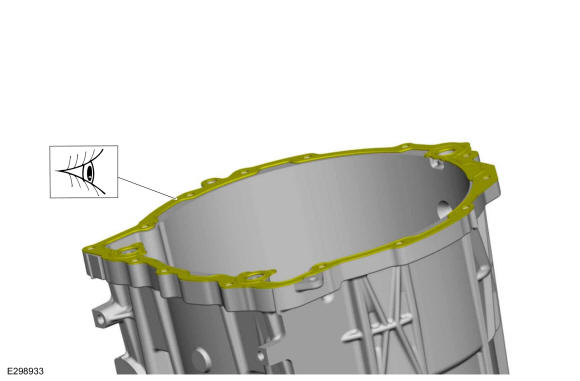

Clean and inspect the hybrid drive unit gasket. Replace if necessary.

Courtesy of FORD MOTOR COMPANY
Remove the transmission fluid spray nozzle.

Courtesy of FORD MOTOR COMPANY
Clean and inspect the transmission fluid spray nozzle.

Courtesy of FORD MOTOR COMPANY
