Oil Pan: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

4x2/4x4

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .
  3. Drain the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
  4. Remove the following items:

    1. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .
    2. Air cleaner. Refer to: Air Cleaner .

  5. Remove the oil level indicator.
    GFD555422Courtesy of FORD MOTOR COMPANY
  6. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD555316Courtesy of FORD MOTOR COMPANY
  7. NOTE: If equipped.

    Remove the fasteners and the underbody shield.

    GFD555317Courtesy of FORD MOTOR COMPANY
  8. NOTE: If equipped.

    Remove the bolts and the underbody shield.

    GFD554786Courtesy of FORD MOTOR COMPANY
  9. NOTE: If equipped.

    Remove the bolts and the skid plate.

    GFD555318Courtesy of FORD MOTOR COMPANY
  10. Disconnect the coolant hose quick release couplings.
    GFD555313Courtesy of FORD MOTOR COMPANY
    1. Detach the coolant tube retainer.
    2. Remove the nut and position the coolant tube and bracket aside.
    GFD555319Courtesy of FORD MOTOR COMPANY
    1. Disconnect the A/C compressor electrical connectors.
    2. Detach the wiring harness retainer.
    3. Remove the pin-type retainer.
    GFD555320Courtesy of FORD MOTOR COMPANY
  13. Remove the nut and position the wiring harness aside.
    GFD555363Courtesy of FORD MOTOR COMPANY
    1. Disconnect the oil level sensor electrical connector.
    2. Detach the wiring harness retainers.
    GFD555423Courtesy of FORD MOTOR COMPANY
    1. Remove the nut and position the coolant tubes aside.
    2. Detach the wiring harness retainer and position the wiring harness aside.
    GFD555424Courtesy of FORD MOTOR COMPANY
  16. Remove the bolts and the LH heat shield.
    GFD555357Courtesy of FORD MOTOR COMPANY
  17. Remove the engine cooler. Refer to: Oil Cooler .

    4x4

  18. Using a holding device, hold the steering wheel in the straight-ahead position.
    GFD554851Courtesy of FORD MOTOR COMPANY
  19. Remove the front drive shaft. Refer to: Front Driveshaft .
    1. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

      Remove and discard the steering column shaft bolt.

    2. Separate the steering column shaft U-joint from the steering gear.
    GFD554852Courtesy of FORD MOTOR COMPANY
  21. Remove the steering gear boot.
    GFD554853Courtesy of FORD MOTOR COMPANY
  22. Using an adjustable stand, support the front axle. Use the General Equipment: Vehicle/Axle Stands
    GFD554854Courtesy of FORD MOTOR COMPANY

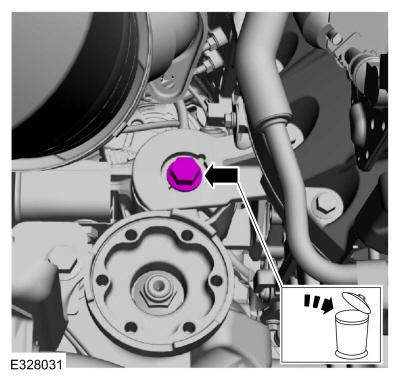

  23. Remove and discard the lower front axle carrier mounting bushing bolt.
    GFD555425Courtesy of FORD MOTOR COMPANY
  24. Remove and discard the axle shaft housing carrier bushing nut and the bolt.
    GFD554856Courtesy of FORD MOTOR COMPANY
  25. NOTE: After loosening the bolt, it may be necessary to reposition the axle assembly to prevent interference with the steering components when removing the bolt.

    Remove and discard the upper front axle carrier mounting bushing nut and the bolt.

    GFD554857Courtesy of FORD MOTOR COMPANY
  26. Using an adjustable stand, lower the axle to allow clearance for the oil pan to be removed. Use the General Equipment: Vehicle/Axle Stands
    GFD554858Courtesy of FORD MOTOR COMPANY

    4x2/4x4

    • Remove the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.

    • Make sure that the mating faces are clean and free of foreign material.

    GFD555355Courtesy of FORD MOTOR COMPANY
  28. NOTE: Only use hand tools when removing the engine mount nuts, stud bolts or damage to the engine mount can occur.

    Remove and discard the RH engine mount nuts and studs.

    GFD555356Courtesy of FORD MOTOR COMPANY
  29. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Loosen the transmission mount-to-crossmember nuts.

    GFD554118Courtesy of FORD MOTOR COMPANY
  30. NOTE: Only use hand tools when loosening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Remove and discard the LH engine mount through bolt.

    GFD555358Courtesy of FORD MOTOR COMPANY
    • Remove and discard the stabilizer bar bracket nuts.

    • Allow the stabilizer bar to swing downward.

    GFD554859Courtesy of FORD MOTOR COMPANY
    1. Position an adjustable stand and wood block under transmission bellhousing. Use the General Equipment: Vehicle/Axle StandsUse the General Equipment: Wooden Block
    2. Raise the adjustable stand 63.5 mm (2.5 in).
    GFD555361Courtesy of FORD MOTOR COMPANY
  33. Install a 38 mm (1.5 in) X 38 mm (1.5 in) X 76 mm (3 in) wood block between the RH engine mount and the frame perch.
    GFD555426Courtesy of FORD MOTOR COMPANY
    1. Using the adjustable stand, lower the engine onto the wood block installed in the previous step. Use the General Equipment: Vehicle/Axle Stands
    2. Remove the stand and wood block under the transmission bellhousing.
    GFD555367Courtesy of FORD MOTOR COMPANY
  35. Remove the nuts, bolts and the crossmember.
    GFD555427Courtesy of FORD MOTOR COMPANY
  36. Drain the engine oil. Refer to: Engine Oil Draining and Filling .

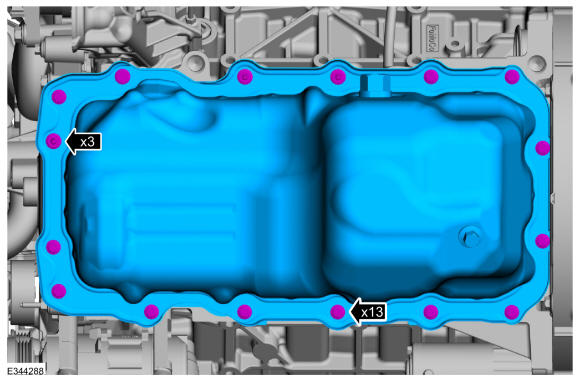

  37. Remove the bolts, stud bolts and the oil pan.
    GFD555428Courtesy of FORD MOTOR COMPANY
  38. Remove and discard the oil pan gasket.
    GFD555429Courtesy of FORD MOTOR COMPANY
  39. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

    GFD555430Courtesy of FORD MOTOR COMPANY

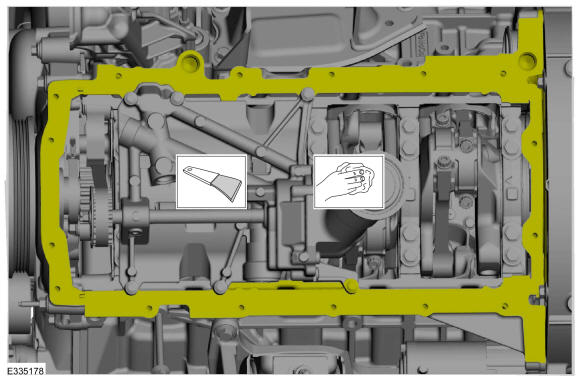

  40. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths.

    Make sure that the mating faces are clean and free of foreign material.

GFD555431Courtesy of FORD MOTOR COMPANY
