Engine Oil Draining and Filling

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM COLOR CODING INFORMATION

Special Tool(s) / General Equipment

Oil Drain Equipment

Materials

Name	Specification
Motorcraft® Metal Brake Parts CleanerPM-4-A, PM-4-B	-

Draining

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the bolts and the transmission housing cover.

Courtesy of FORD MOTOR COMPANY

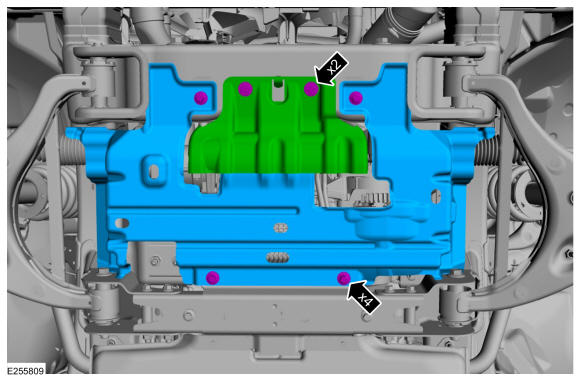

- If equipped, remove the bolts and the underbody shield.
- If equipped, remove the bolts and the skid plate.
Courtesy of FORD MOTOR COMPANY

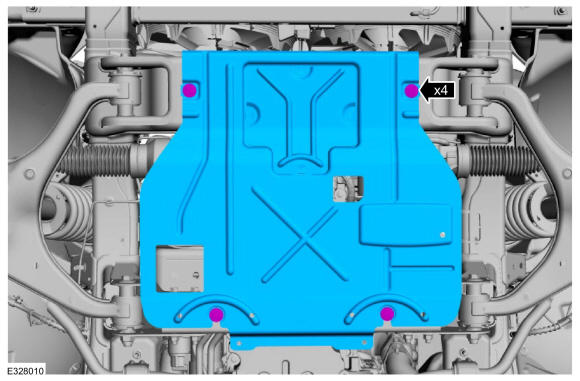

If equipped, remove the bolts and the skid plate.

Courtesy of FORD MOTOR COMPANY

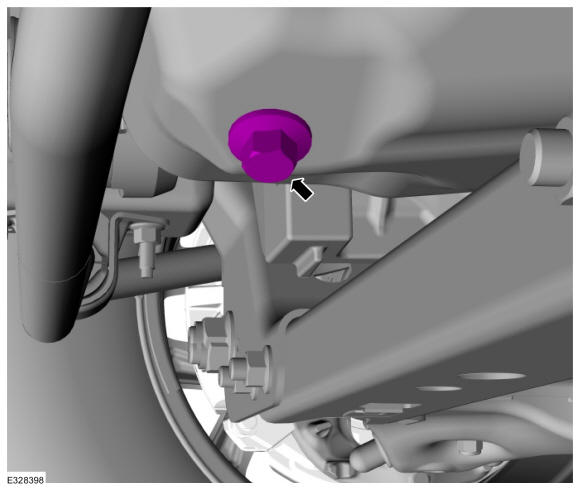

Remove the oil pan plug and drain the engine oil. Use the General Equipment: Oil Drain Equipment
Torque: 19 lb.ft (26 Nm)

Courtesy of FORD MOTOR COMPANY

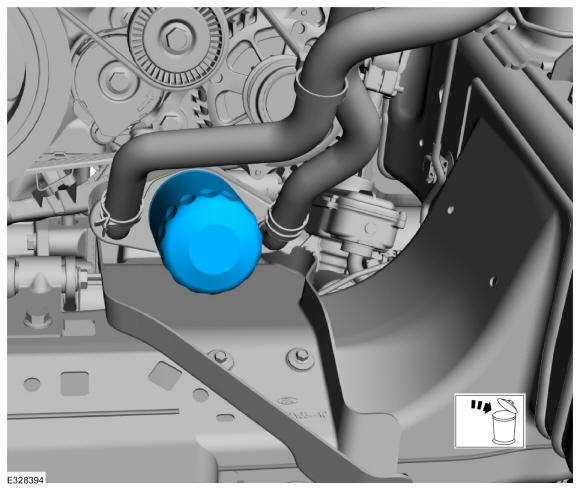

Remove and discard the oil filter. Use the General Equipment: Oil Drain Equipment

Courtesy of FORD MOTOR COMPANY

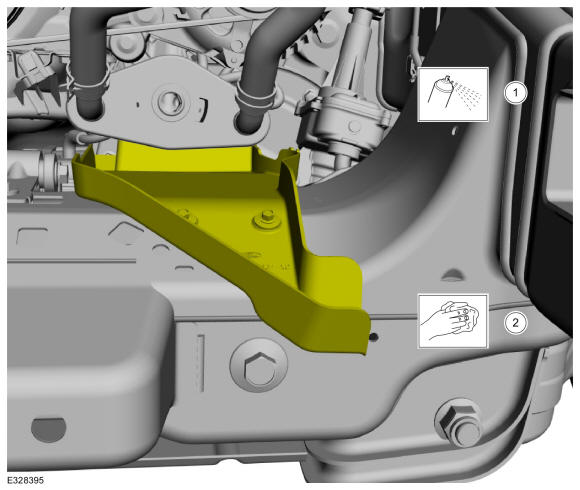

1. Using brake cleaner, clean the drain trough. Use the General Equipment: Oil Drain Equipment
  Material

  : Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B
2. Wipe the drain trough clean.

Courtesy of FORD MOTOR COMPANY

Filling

NOTE: Do not lubricate the O-ring seal.

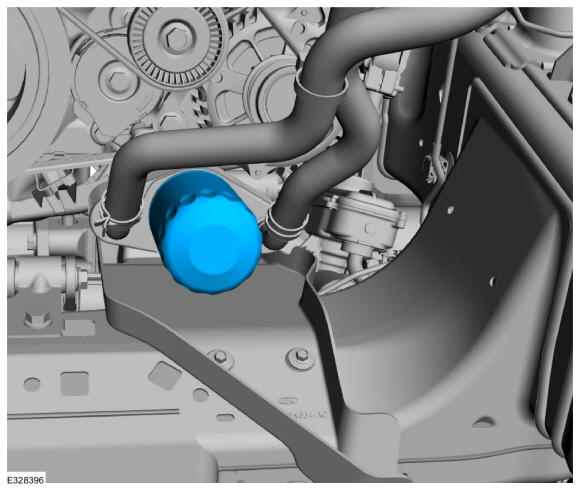

Install a new oil filter.

Torque:Stage 1: 44 lb.in (5 Nm)

Stage 2: 180 deg.

Courtesy of FORD MOTOR COMPANY
If equipped, install the skid plate and the bolts.
Torque: 30 lb.ft (40 Nm)

Courtesy of FORD MOTOR COMPANY
- If equipped, remove the bolts and the skid plate.
  Torque: 30 lb.ft (40 Nm)
- If equipped, install the underbody shield and bolts.
  Torque: 30 lb.ft (40 Nm)
Courtesy of FORD MOTOR COMPANY
If equipped, install the transmission housing cover and the bolts
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

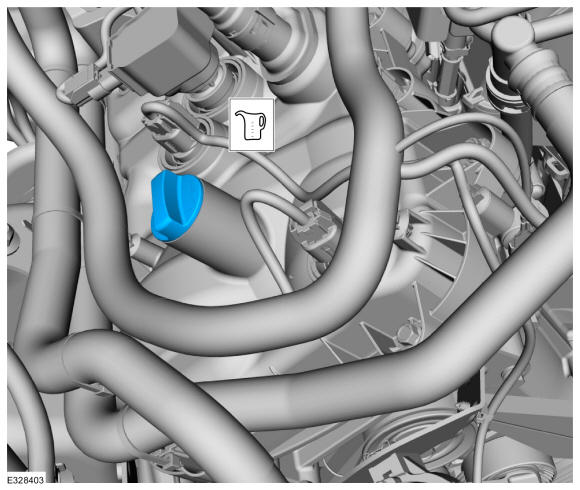

Fill the engine with clean engine oil. Refer to: Specifications .

Courtesy of FORD MOTOR COMPANY
