Oil Pan: Installation

4x2/4x4

1. Install a new oil pan gasket.

   Courtesy of FORD MOTOR COMPANY

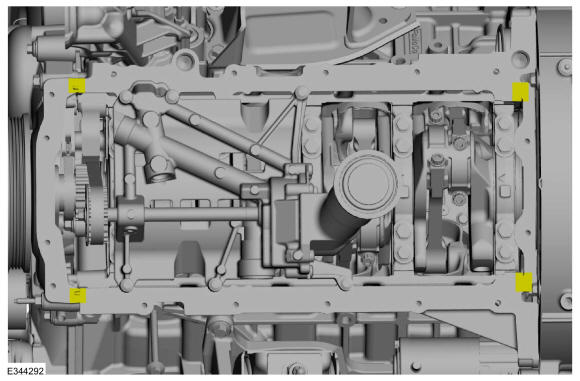

2. Clean and prepare the RTV sealing surface. Refer to: RTV Sealing Surface Cleaning and Preparation .

   Courtesy of FORD MOTOR COMPANY

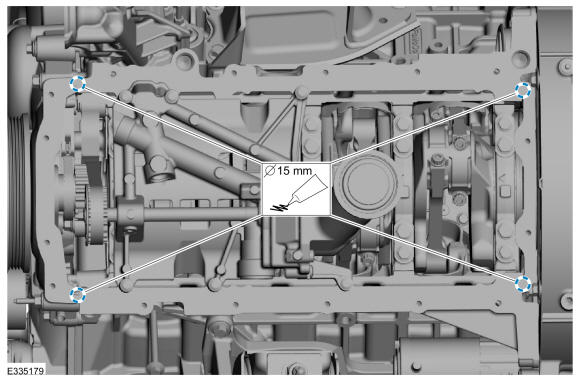

3. NOTE: If the oil pan is not installed and the fasteners tightened within 5 minutes, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage. If this timing cannot be met, tighten fasteners 7, 8, 9 and 10 to 8 Nm (71 lb-in) within 5 minutes of applying the sealer and final torque all of the fasteners within 1 hour of applying the sealer.
   NOTE: If the engine front cover has been removed, it is only necessary to apply sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces.

   Apply 15 mm (0.59 in) diameter drops of silicone gasket and sealant to the crankshaft rear seal retainer plate-to-cylinder block sealing surfaces and the engine front cover-to-cylinder block sealing surfaces.

   Material

   : Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

   Courtesy of FORD MOTOR COMPANY

4. Install the oil pan and the bolts.

   Torque:Stage 1: 18 lb.in (2 Nm)

   Stage 2: 89 lb.in (10 Nm)

   Stage 3: 45 deg.

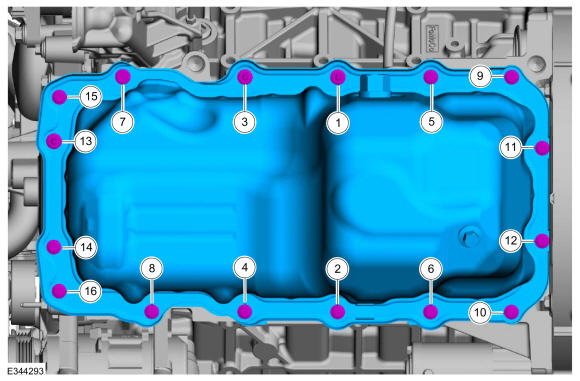

   Fig 1: Oil Pan Bolts Tightening Sequence

   Courtesy of FORD MOTOR COMPANY

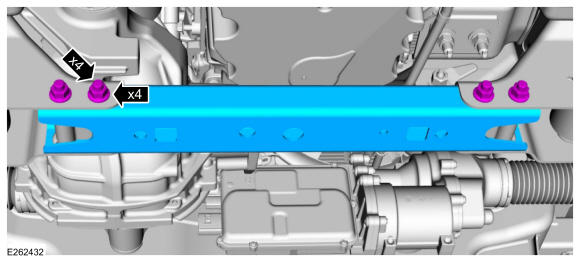

5. Install the crossmember, bolts and the nuts.

   Torque: 66 lb.ft (90 Nm)

   Courtesy of FORD MOTOR COMPANY

6. 1. Position an adjustable stand and wood block under transmission bellhousing. Use the General Equipment: Vehicle/Axle StandsUse the General Equipment: Wooden Block
   2. Raise the adjustable stand 63.5 mm (2.5 in).

   Courtesy of FORD MOTOR COMPANY

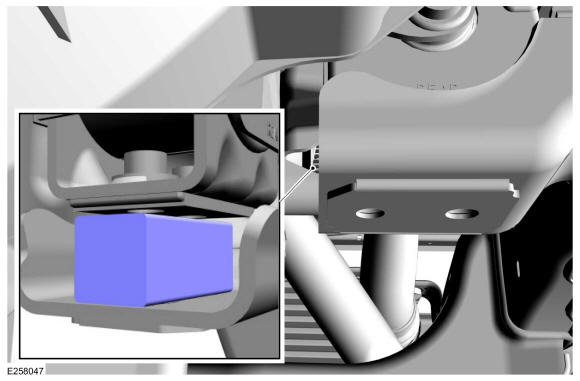

7. Remove the wood block.

   Courtesy of FORD MOTOR COMPANY

8. 1. Using the adjustable stand, lower the engine to the installed position. Use the General Equipment: Vehicle/Axle Stands
   2. Remove the stand.

   Courtesy of FORD MOTOR COMPANY

9. Position the stabilizer bar and install the new nuts.

   Torque: 41 lb.ft (55 Nm)

   Courtesy of FORD MOTOR COMPANY

10. NOTE: Only use hand tools when installing the engine mount studs or damage to the engine mount can occur.
    NOTE: Apply threadlock to the stud threads prior to installation.

    Install the engine mount studs.

    Material

    : Motorcraft® Threadlock 262 / TA-26 (WSK-M2G351-A6)

    Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

11. NOTE: Only use hand tools when installing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nuts.

    Torque: 111 lb.ft (150 Nm)

    Courtesy of FORD MOTOR COMPANY

12. NOTE: Only use hand tools when tightening the engine mount through bolts or damage to the engine mount-to-cylinder block bracket can occur.

    Install the new LH engine mount through bolt.

    Torque: 258 lb.ft (350 Nm)

    Courtesy of FORD MOTOR COMPANY

13. NOTE: Only use hand tools when installing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

    Tighten the transmission mount-to-crossmember nuts.

    Torque: 85 lb.ft (115 Nm)

    Courtesy of FORD MOTOR COMPANY

14. • Position the exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe and install the bolts.
    • Tighten the inner exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    • Tighten the outer exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolt.

      Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

    4x4

15. Using an adjustable stand, raise the front axle carrier into position. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

16. NOTE: It may be necessary to reposition the axle assembly to prevent interference with the steering components when installing the bolt.

    Install the new upper front axle carrier mounting bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

17. Install the new axle shaft housing carrier mounting bushing nut and the bolt finger tight.

    Courtesy of FORD MOTOR COMPANY

18. Install the new lower front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

19. Tighten the axle shaft housing carrier bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

20. Tighten the upper front axle carrier mounting bushing bolt.

    Torque: 129 lb.ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Remove the adjustable stand. Use the General Equipment: Vehicle/Axle Stands

    Courtesy of FORD MOTOR COMPANY

22. Install the steering gear boot.

    Courtesy of FORD MOTOR COMPANY

23. 1. Position back the steering column shaft U-joint to the steering gear.
    2. WARNING: Install a new steering column shaft bolt. Reuse could result in bolt failure and loss of vehicle control. Failure to follow this instruction may result in serious injury to vehicle occupant(s).

       Install a new steering column shaft bolt.

       Torque: 22 lb.ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

24. Install the front drive shaft. Refer to: Front Driveshaft .
25. Remove the holding device from the steering wheel.

    Courtesy of FORD MOTOR COMPANY

    4x2/4x4

26. Install the engine cooler. Refer to: Oil Cooler .
27. Install the LH heat shield and the bolts.

    Torque: 177 lb.in (20 Nm)

    Courtesy of FORD MOTOR COMPANY

28. 1. Position the wiring harness and attach the wiring harness retainer.
    2. Position the coolant tubes and install the nut.

       Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

29. 1. Connect the oil level sensor electrical connector.
    2. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

30. Position the wiring harness and install the nut.

    Torque: 106 lb.in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

31. 1. Connect the A/C compressor electrical connectors.
    2. Attach the wiring harness retainer.
    3. Install the pin-type retainer.

    Courtesy of FORD MOTOR COMPANY

32. 1. Position the coolant tubes and bracket and install the nut.

       Torque: 119 lb.in (13.5 Nm)

    2. Attach the coolant tube retainer.

    Courtesy of FORD MOTOR COMPANY

33. Connect the coolant hose quick release couplings.

    Courtesy of FORD MOTOR COMPANY

34. NOTE: If equipped.

    Install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

35. NOTE: If equipped.

    Install the underbody shield and the bolts.

    Torque: 71 lb.in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

36. If equipped, install the underbody shield and fasteners.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

37. If equipped, install the skid plate and bolts.

    Torque: 30 lb.ft (40 Nm)

    Courtesy of FORD MOTOR COMPANY

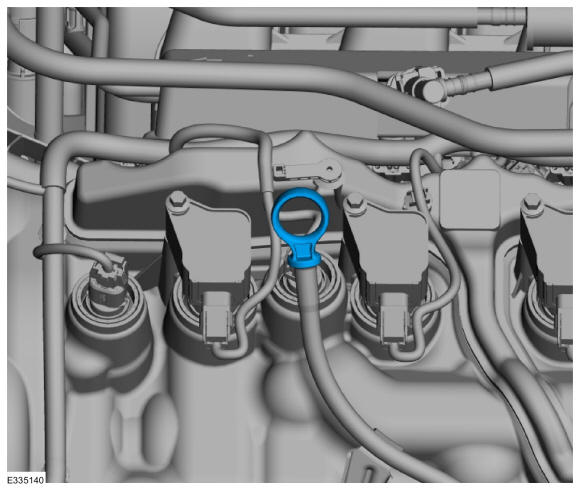

38. Install the oil level indicator.

    Courtesy of FORD MOTOR COMPANY

39. Install the following items:
    1. Air cleaner. Refer to: Air Cleaner .
    2. Air cleaner outlet pipe. Refer to: Air Cleaner Outlet Pipe .

40. Fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .
41. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
42. Fill and bleed the engine cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
43. Start engine and check exhaust system for leaks.
