Oil Cooler: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Drain the engine oil and remove and discard the engine oil filter. Refer to: Engine Oil Draining and Filling .
-

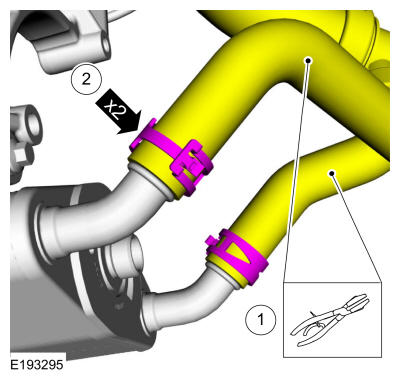

- Using hose locking pliers, clamp the oil cooler coolant hoses. Use the General Equipment: Locking Pliers
- Disconnect the coolant hoses.
- Remove the retainer and the oil cooler.
-
NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE SYSTEM - GENERAL INFORMATION .

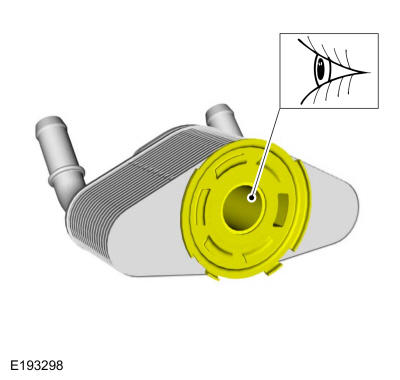

Inspect the oil cooler.
