Removal And Installation: Transmission: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Depower the high voltage battery. Refer to: High Voltage System De-energizing .
  3. Remove the starter motor assembly. Refer to: Starter Motor .
  4. Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .

    Four-Wheel Drive (4WD) vehicles

  5. Remove the front driveshaft assembly. Refer to: Front Driveshaft .

    Rear Wheel Drive (RWD) vehicles

  6. Remove and discard the stabilizer bar bracket nuts and allow the stabilizer bar to swing downward.
    GFD559619Courtesy of FORD MOTOR COMPANY

    All vehicles

  7. Remove the transmission fluid heat exchanger. Refer to: Transmission Fluid Heat Exchanger .
  8. Disconnect the engine clutch pressure sensor and detach the wiring harness from the transmission.
    GFD559620Courtesy of FORD MOTOR COMPANY
  9. Remove the retainers and heat shield.
    GFD559621Courtesy of FORD MOTOR COMPANY
  10. Remove the retainers from the NVH cover.
    GFD559622Courtesy of FORD MOTOR COMPANY
  11. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.
    NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the bolts, studbolts and the transmission fluid pan.

    GFD559623Courtesy of FORD MOTOR COMPANY
  12. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    GFD559623Courtesy of FORD MOTOR COMPANY
  13. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission. Use the General Equipment: Transmission JackUse the General Equipment: Retaining Strap

    GFD559624Courtesy of FORD MOTOR COMPANY
  14. Remove the LH catalytic converter. Refer to: Catalytic Converter LH .
  15. Remove the transmission support insulator. Refer to: Transmission Support Insulator .
  16. Disconnect the RH catalyst monitor sensor and the RHHO2S electrical connectors.
    GFD559625Courtesy of FORD MOTOR COMPANY
  17. Remove the bolts from the catalytic converter flange to the muffler inlet pipe.
    GFD559626Courtesy of FORD MOTOR COMPANY
  18. NOTE: Clean all exhaust connections before reassembly.

    Remove and discard the catalytic converter nuts and remove the catalytic converter.

    GFD559627Courtesy of FORD MOTOR COMPANY
  19. Remove and discard the gasket.
    GFD559628Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  20. Remove the fuel line bracket bolt.
    GFD559629Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  21. Remove the fuel line bracket bolt and disconnect the transfer case vent tube.
    GFD559630Courtesy of FORD MOTOR COMPANY
    1. Disconnect the transfer case electrical connector.
    2. Disconnect the transfer case electrical harness retainer.
    GFD559631Courtesy of FORD MOTOR COMPANY

    All vehicles

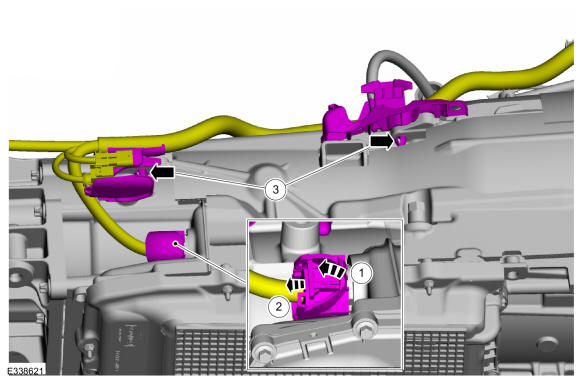

  23. NOTE: Do not pull on the wire harness to disconnect the electrical connector or damage to the electrical connector will occur.

    1. Slide the lock tab up and disconnect the transmission electrical connector.
    2. Pull the transmission electrical connector out to disconnect.
    3. Detach the retainers from the transmission and position the wiring harness aside.

    GFD559632Courtesy of FORD MOTOR COMPANY
  24. NOTE: If equipped with a self-adhesive heat shield, covering the transmission bolts, position aside the shield to access the bolts.

    Remove the LH bellhousing bolts and the heat shield.

    GFD559633Courtesy of FORD MOTOR COMPANY
  25. Remove the bolts and position aside the high voltage wiring harness.
    GFD559634Courtesy of FORD MOTOR COMPANY
  26. Remove the top bellhousing bolts and position aside the bracket.
    GFD559635Courtesy of FORD MOTOR COMPANY
  27. Remove the bolt and the heat shield.
    GFD559636Courtesy of FORD MOTOR COMPANY
  28. Remove the RH bellhousing bolt.
    GFD559637Courtesy of FORD MOTOR COMPANY
  29. Remove the RH bellhousing bolts.
    GFD559638Courtesy of FORD MOTOR COMPANY
  30. Remove the lower bellhousing bolt.
    GFD559639Courtesy of FORD MOTOR COMPANY
  31. Disconnect the hybrid drive unit low voltage connector.

    1. Slide the safety lock out.
    2. Press the connector tab in.
    3. Rotate the locking arm up and disconnect the low voltage connector.

    GFD559640Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  32. Using the high-lift transmission jack, remove the transmission from the vehicle. Use the General Equipment: Transmission Jack
    GFD559641Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

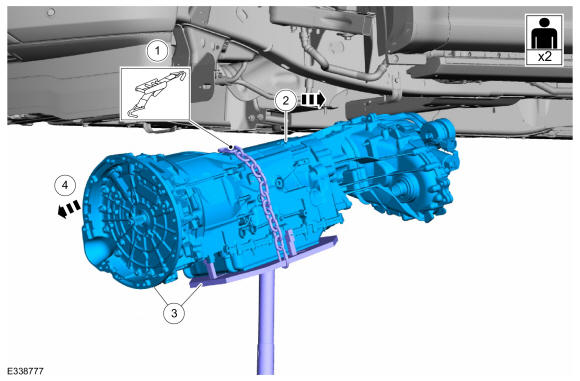

    1. Make sure the transmission is securely fastened to the transmission jack.
    2. Slide the transmission towards the rear of the vehicle.
    3. Tilt the front of the transmission down.
    4. Remove the transmission from the vehicle.
    GFD559642Courtesy of FORD MOTOR COMPANY

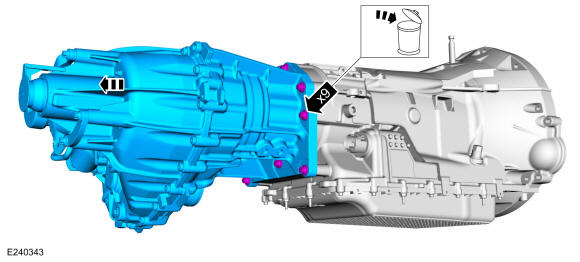

  34. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts and separate the transfer case from the transmission.
    GFD559643Courtesy of FORD MOTOR COMPANY

    All vehicles

  35. NOTE: Failure to clean the transmission fluid cooler tubes can result in transmission failure.

    If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the transmission fluid cooler backflushing and cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
