Removal And Installation: Transmission: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Prior to installing a new transmission or an overhauled transmission with a new main control, record the solenoid strategy identification tag. If a new main control was installed, install the replacement solenoid body tag over the original identification tag.
  1. NOTE: If a new hybrid drive unit was installed, the barcode must be recorded, prior to installation of the transmission.

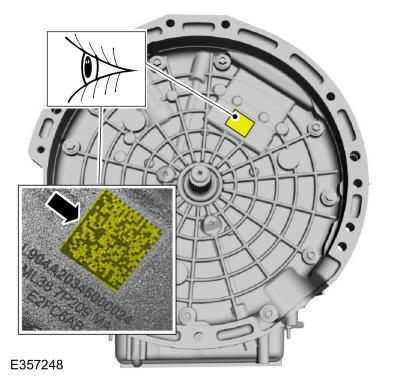

    If a new hybrid drive unit was installed, scan the 2D barcode on the new hybrid drive unit using a QR or 2D barcode reader app and record the last 7 digits of the barcode.

    GFD559644Courtesy of FORD MOTOR COMPANY

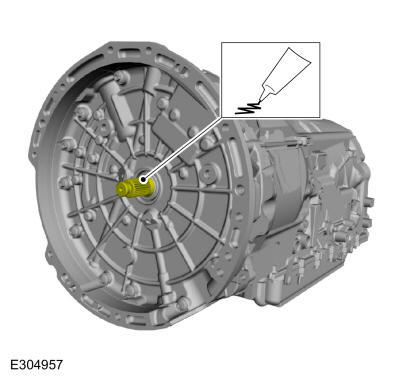

  2. NOTE: Prior to installation of the transmission, lubricate the hybrid drive unit input shaft or damage to the hybrid drive unit or the engine crankshaft can occur.

    Lubricate the hybrid drive unit input shaft with multi-purpose grease.

    Material

    : Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

    GFD559645Courtesy of FORD MOTOR COMPANY

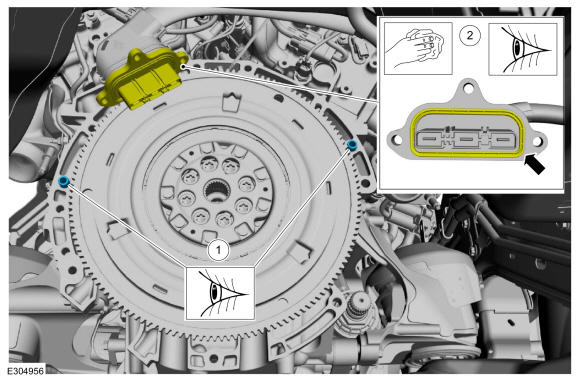

  3. NOTE: If the transmission is not positioned on the dowel pins, damage to the transmission may occur.

    • If the dowel pins were pulled out of the engine block during removal, install new dowel pins in the engine block.

    • Clean and inspect the high voltage electrical connector gasket.

    GFD559646Courtesy of FORD MOTOR COMPANY

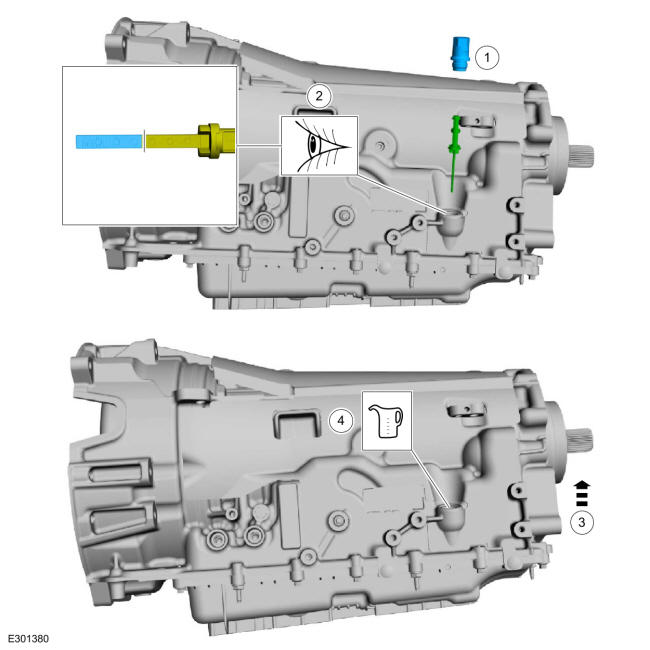

  4. NOTE: If transmission is being replaced, remove the transmission fluid fill plug and verify that the transmission is filled with transmission fluid.
    NOTE: If transmission was disassembled, add transmission fluid to the transmission.
    NOTE: Rear Wheel Drive (RWD) shown, Four-Wheel Drive (4WD) similar.

    1. Remove the transmission fluid fill plug transmission fluid level indicator assembly.
    2. Verify transmission is filled with transmission fluid.
    3. Slightly tilt the transmission rearward.
    4. If the transmission was disassembled, add 13 L (13.7 qt) of transmission fluid to the transmission through the transmission fluid fill hole.

      Material

      : Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    • Loosely install the transmission fluid fill plug when finished.

    GFD559647Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

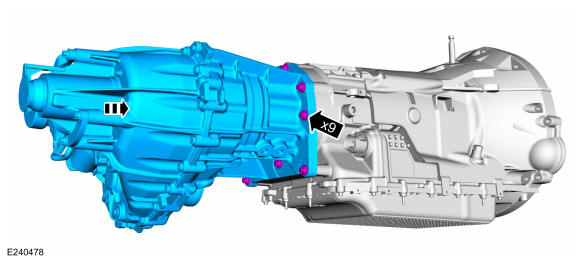

  5. If removed, install the transfer case and the new bolts.

    • Tighten the bolts evenly in a star pattern.

      Torque: 150 lb.in (17 Nm)

    GFD559648Courtesy of FORD MOTOR COMPANY

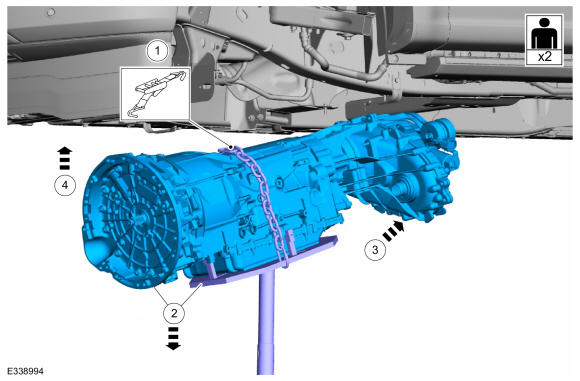

  6. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, support the transmission.

    1. Make sure the transmission is securely fastened to the transmission jack. Use the General Equipment: Transmission JackUse the General Equipment: Retaining Strap
    2. Tilt the front of the transmission down.
    3. Slide the transmission towards the rear of the vehicle.
    4. Raise the front of the transmission into a horizontal position.

    GFD559649Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  7. NOTE: Secure the transmission to the transmission jack with a safety strap.
    NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

    Using a high-lift transmission jack, position the transmission in the vehicle. Use the General Equipment: Transmission JackUse the General Equipment: Retaining Strap

    GFD559641Courtesy of FORD MOTOR COMPANY

    All vehicles

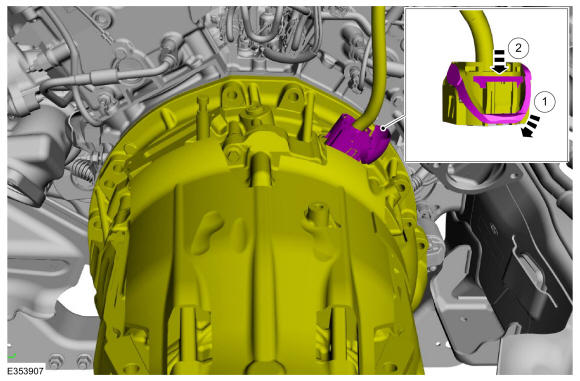

  8. Connect the hybrid drive unit low voltage connector.

    1. Rotate the locking arm to connect the low voltage connector.
    2. Slide the safety lock in.

    GFD559650Courtesy of FORD MOTOR COMPANY

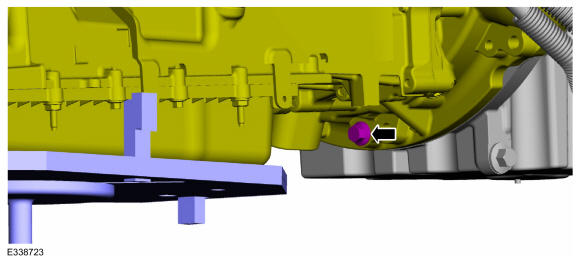

  9. NOTE: With the transmission in a horizontal position, move it toward the engine and position it on the dowel pins.

    Install the lower bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD559639Courtesy of FORD MOTOR COMPANY

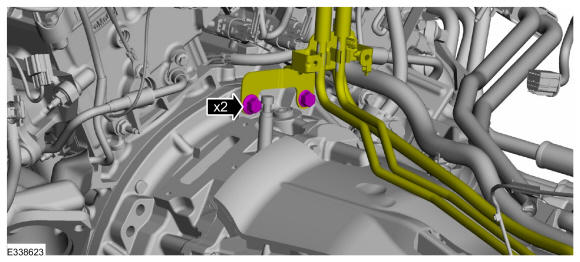

  10. Position the bracket and install the top bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD559635Courtesy of FORD MOTOR COMPANY

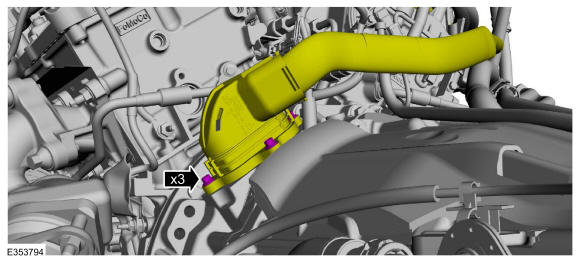

  11. Position back the high voltage wiring harness and install the bolts.

    Torque: 97 lb.in (11 Nm)

    GFD559634Courtesy of FORD MOTOR COMPANY

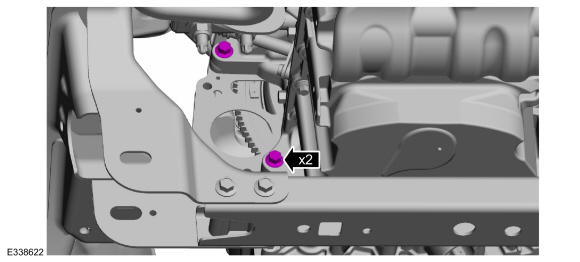

  12. Install the RH bellhousing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD559638Courtesy of FORD MOTOR COMPANY

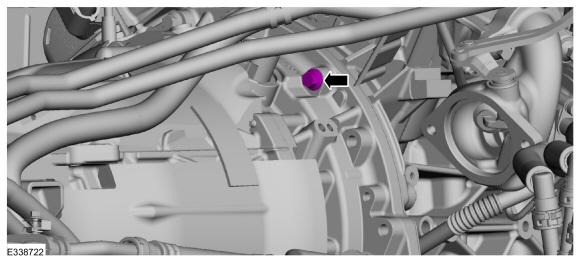

  13. Install the RH bellhousing bolt.

    Torque: 35 lb.ft (48 Nm)

    GFD559637Courtesy of FORD MOTOR COMPANY

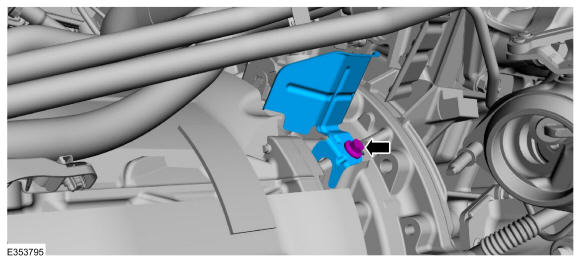

  14. Install the heat shield and the bolt.

    Torque: 89 lb.in (10 Nm)

    GFD559636Courtesy of FORD MOTOR COMPANY
  15. NOTE: If equipped, position back the self-adhesive heat shield.

    Install the heat shield and the LH bell housing bolts.

    Torque: 35 lb.ft (48 Nm)

    GFD559633Courtesy of FORD MOTOR COMPANY

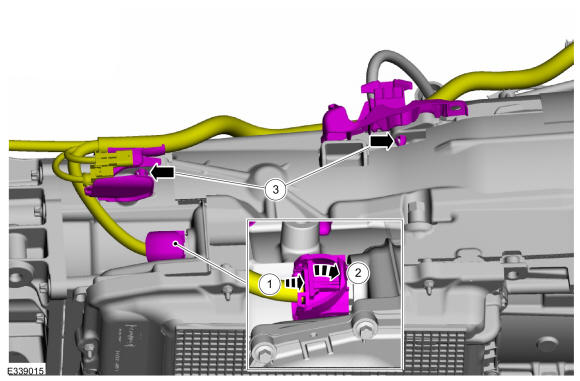

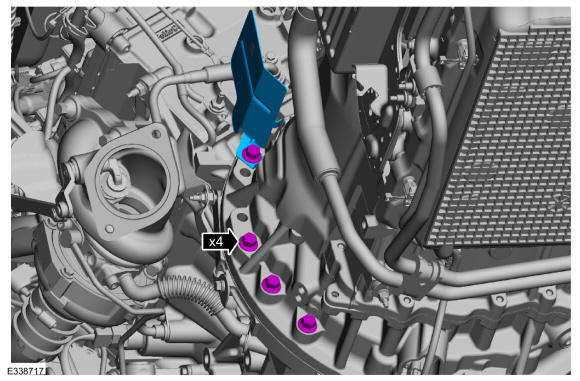

    1. Push the transmission electrical connector in.
    2. Lock the tab to connect the transmission electrical connector.
    3. Attach the wiring harness retainers to the transmission.
    GFD559651Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

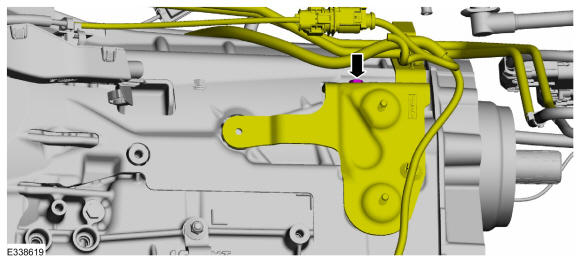

  17. Position the fuel line bracket and install the bolt.

    Torque: 30 lb.ft (40 Nm)

    GFD559629Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

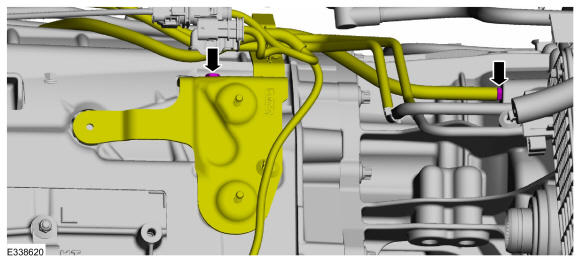

  18. Position the fuel line bracket and install the bolt. Connect the transfer case vent tube.

    Torque: 30 lb.ft (40 Nm)

    GFD559630Courtesy of FORD MOTOR COMPANY

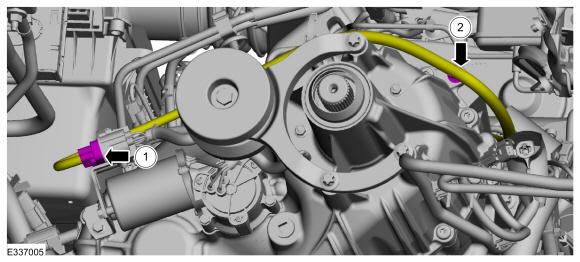

    1. Connect the transfer case electrical connector.
    2. Connect the transfer case electrical harness retainer.
    GFD559631Courtesy of FORD MOTOR COMPANY

    All vehicles

  20. NOTE: Make sure that new gasket is installed.

    Install the new gasket.

    GFD558907Courtesy of FORD MOTOR COMPANY
  21. NOTE: Loosely install the new RH catalytic converter nuts. Do not tighten at this time.

    Position the RH catalytic converter in the vehicle. Loosely install the new RH catalytic converter nuts.

    GFD559652Courtesy of FORD MOTOR COMPANY
  22. Install the transmission support insulator. Refer to: Transmission Support Insulator .
  23. Install the LH catalytic converter. Refer to: Catalytic Converter LH .
  24. NOTE: Evenly tighten the catalytic converter nuts.

    Tighten the RH catalytic converter nuts.

    Torque: 30 lb.ft (40 Nm)

    GFD559653Courtesy of FORD MOTOR COMPANY

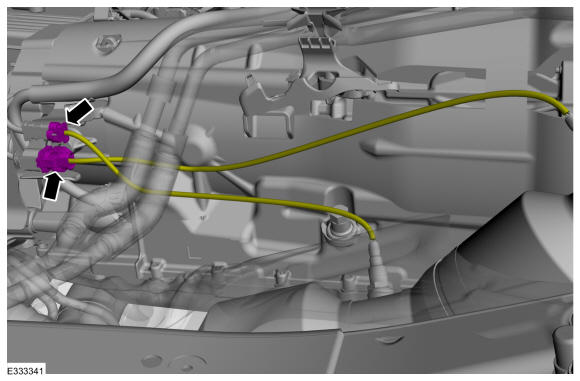

  25. Connect the RH catalyst monitor sensor and the RHHO2S electrical connectors.
    GFD559625Courtesy of FORD MOTOR COMPANY

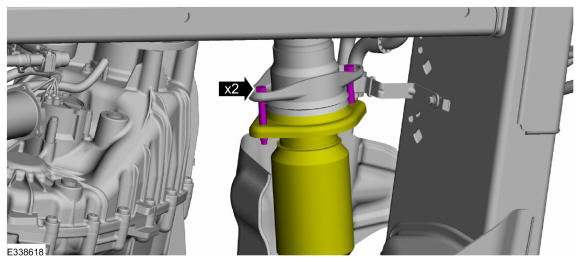

  26. Install the catalytic converter flange to the muffler inlet pipe bolts.

    Torque: 30 lb.ft (40 Nm)

    GFD559626Courtesy of FORD MOTOR COMPANY

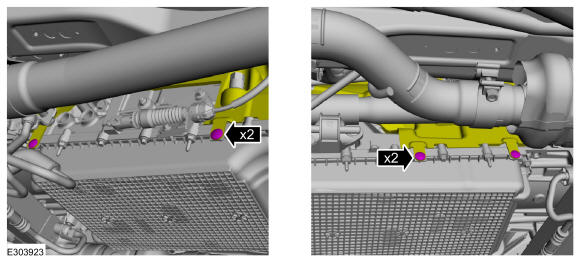

  27. Install the NVH (noise, vibration and harshness) cover and retainers.
    GFD559622Courtesy of FORD MOTOR COMPANY
  28. Install the retainers and heat shield.

    Torque: 80 lb.in (9 Nm)

    GFD559621Courtesy of FORD MOTOR COMPANY

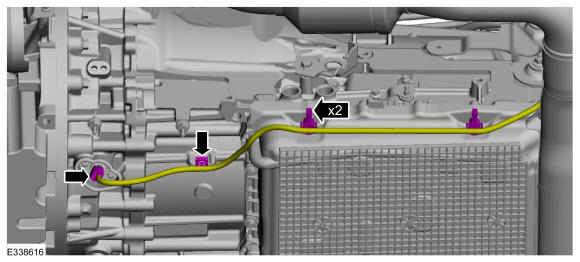

  29. Connect the engine clutch pressure sensor and attach the wiring harness to the transmission.
    GFD559620Courtesy of FORD MOTOR COMPANY

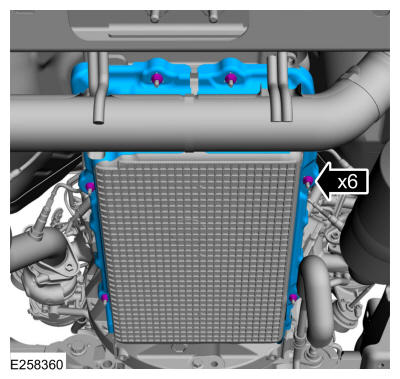

  30. Install the transmission fluid heat exchanger. Refer to: Transmission Fluid Heat Exchanger .
  31. Install the rear driveshaft assembly. Refer to: Rear Driveshaft .

    Four-Wheel Drive (4WD) vehicles

  32. Install the front driveshaft assembly. Refer to: Front Driveshaft .
  33. Check the transfer case fluid level. Refer to: Transfer Case Draining and Filling .

    Rear Wheel Drive (RWD) vehicles

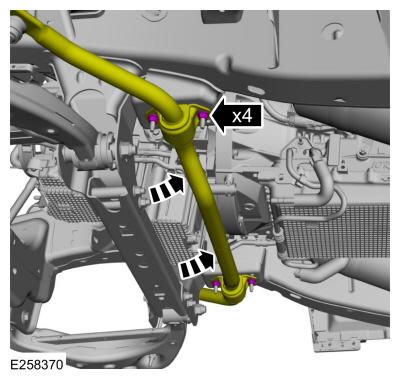

  34. Install the new stabilizer bar bracket nuts.

    Torque: 41 lb.ft (55 Nm)

    GFD559654Courtesy of FORD MOTOR COMPANY

    All vehicles

  35. NOTE: If equipped with a underbody splash shield, do not install the splash shield at this time.

    Install the starter motor assembly. Refer to: Starter Motor .

  36. Repower the high voltage battery. Refer to: High Voltage System De-energizing .
  37. After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure using a diagnostic scan tool.
  38. If a new transmission, main control, hybrid drive unit, and/or transmission fluid auxiliary pump was installed, the transmission identification (TRID) file in the PCM must be updated with the component characterization data. Refer to: Transmission Strategy Download .
  39. If the transmission was overhauled, the adaptive drive cycle must be updated. Refer to: Adaptive Learning Drive Cycle .
  40. While driving the vehicle, use the scan tool to verify that the TFT has reached a temperature of 96 deg.-101 deg.C (206 deg.-215 deg.F). This will circulate the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system.
  41. Check the transmission fluid level. Refer to: Transmission Fluid Level Check .
  42. NOTE: If the transmission was overhauled or the transmission fluid auxiliary pump was replaced the pump must be primed or damage to the pump can occur.
    NOTE: TFT must be greater than 38 deg.C (100 deg.F) for the PCM to command the pump on.

    Using the scan tool verify the TFT is above 38 deg.C (100 deg.F)

    • If TFT is below 38 deg.C (100 deg.F), run engine at 3000 RPM until specified temperature is achieved (approximately 2-4 minutes).

  43. Prime the Transmission Fluid Auxiliary Pump.

    1. Key ON, Engine OFF.
    2. Using the scan tool, command the pump on for 30 seconds. If the pump cannot be commanded on, verify TFT is above 38 deg.C (100 deg.F).
    3. Clear DTCs.

  44. Carry out a road test until there is a stop / start event. If the restart is harsh, repeat the Transmission Fluid Pump prime procedure.
  45. Continue road test and evaluate each stop / start event. Repeat prime procedure until three consecutive normal stop / start events are achieved.
