Transmission Fluid Pump Idler Gear: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission assembly. Refer to: Transmission .
    1. Using a floor crane, mount the transmission to a mounting stand. Use the General Equipment: Mounting StandUse the General Equipment: Adjustable Mounting ArmUse the General Equipment: Floor Crane
    2. Rotate the transmission to the upright position.
    GFD559518Courtesy of FORD MOTOR COMPANY
  3. Remove the transmission fluid level indicator and plug assembly.
    GFD558991Courtesy of FORD MOTOR COMPANY
  4. Remove the rear hybrid unit bolts.
    GFD559519Courtesy of FORD MOTOR COMPANY
  5. Remove the short hybrid drive unit bolt.
    GFD559520Courtesy of FORD MOTOR COMPANY
  6. Remove the hybrid drive unit bolts.
    GFD559521Courtesy of FORD MOTOR COMPANY
  7. Install the special tools on the hybrid drive unit. Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer., 307-651-03 Lift Fixture Adapter (MHT).
    GFD559522Courtesy of FORD MOTOR COMPANY
  8. Using a floor crane and the special tools, remove the hybrid drive unit. Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer., 307-651-03 Lift Fixture Adapter (MHT).Use the General Equipment: Floor Crane
    GFD559523Courtesy of FORD MOTOR COMPANY
  9. NOTE: The hybrid drive unit gasket can be reused if not damaged.

    Remove the hybrid drive unit gasket. Replace if necessary.

    GFD559525Courtesy of FORD MOTOR COMPANY
  10. NOTE: Note the location of the bolts and studbolts for assembly.

    Remove the bolts and studbolts and the transmission fluid pan.

    1. Studbolts
    2. Bolts

    GFD559528Courtesy of FORD MOTOR COMPANY
  11. Remove and discard the hybrid drive unit feed tube seals (7J135).
    GFD559529Courtesy of FORD MOTOR COMPANY
  12. NOTE: The transmission fluid pan gasket can be reused if not damaged.

    Clean and inspect the pan, magnet, the gasket and seals.

    1. Transmission fluid pan gasket
    2. Transmission fluid pan to transmission case seals
    3. Magnet

    GFD559530Courtesy of FORD MOTOR COMPANY

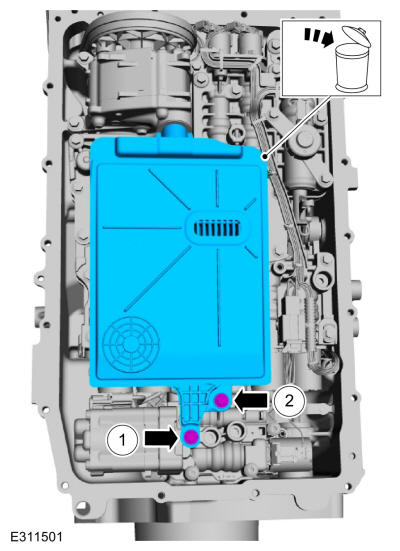

  13. NOTE: Use a 10ep Torx Plus® socket to remove the bolts

    Remove the bolts and discard the transmission fluid filter (7G186).

    1. 73 mm bolt
    2. 25 mm bolt

    GFD559677Courtesy of FORD MOTOR COMPANY
  14. NOTE: The transmission fluid filter seal will either come off with the transmission fluid filter or it will be stuck in the pump.

    Remove and discard the transmission fluid filter seal (7Z302).

    GFD558996Courtesy of FORD MOTOR COMPANY

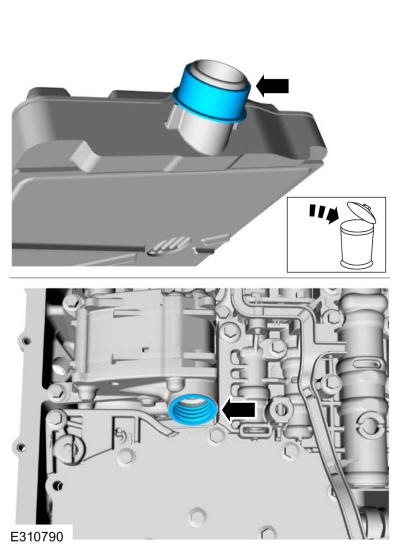

  15. Remove and discard the transmission fluid auxiliary pump filter seal (G646).
    GFD559532Courtesy of FORD MOTOR COMPANY
  16. Disconnect the main control main electrical connector.
    GFD559535Courtesy of FORD MOTOR COMPANY
  17. NOTE: Use a 8 x 1.25 mm bolt to hold the park override lever into position.

    Rotate the park override lever to the park override position and loosely install the bolt.

    GFD558998Courtesy of FORD MOTOR COMPANY
    1. Remove the 68 mm bolts and the main control assembly.
    2. Check to see if the main control-to-transmission fluid pump seal is attached to the main control.
    GFD559536Courtesy of FORD MOTOR COMPANY
  19. Remove the bolts and the transmission fluid pump.
    GFD558978Courtesy of FORD MOTOR COMPANY

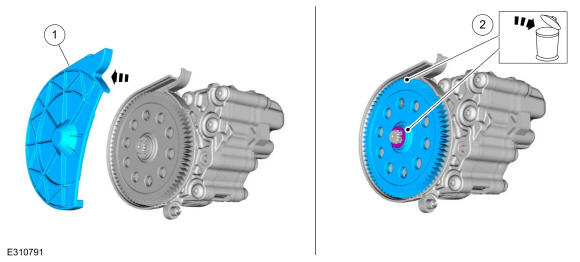

    1. Remove the transmission fluid pump driven gear outer cover.
    2. Remove and discard the retaining ring (W718158) and the transmission fluid pump driven gear (7J048).
    GFD559000Courtesy of FORD MOTOR COMPANY
  21. Remove the front support cover bolt and the front support cover snap ring.
    GFD559678Courtesy of FORD MOTOR COMPANY

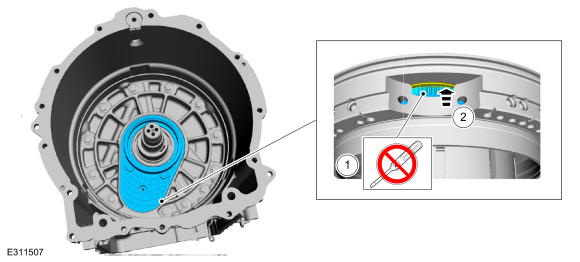

    1. NOTE: Do not pry on the transmission fluid pump drive gear to remove the front support cover or damage to the transmission fluid pump drive gear can occur.
    2. Push up on the back of the front support cover and remove the front support cover from the front support.
    GFD559679Courtesy of FORD MOTOR COMPANY

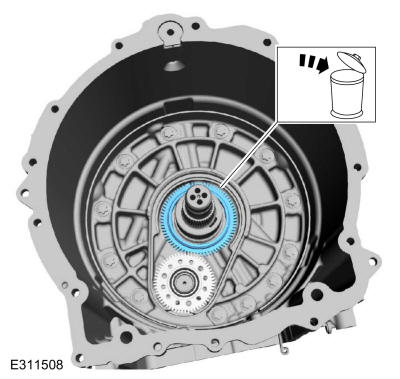

  23. Remove and discard the transmission fluid pump drive gear (7177).
    GFD559680Courtesy of FORD MOTOR COMPANY

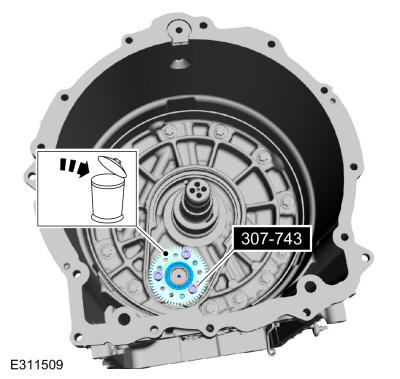

  24. NOTE: Tighten the special tools evenly to remove the transmission fluid pump idler gear.

    Using the special tools, remove and discard the transmission fluid pump idler gear (6652) and bearing (7025). Use Special Service Tool: 307-743 Remover, Pump Drive Gear.

    GFD559681Courtesy of FORD MOTOR COMPANY

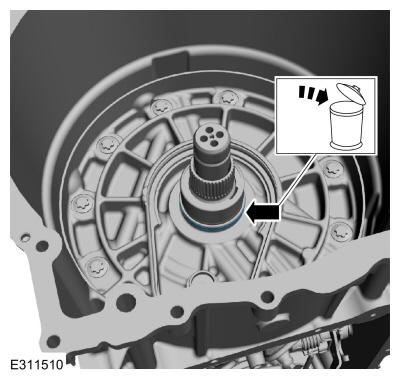

  25. Remove and discard the stator support seal (7G090).
    GFD559682Courtesy of FORD MOTOR COMPANY

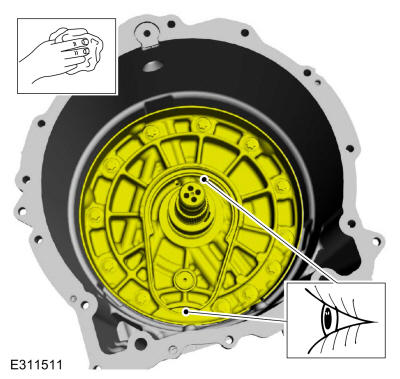

  26. Clean all debris from the front support.
GFD559683Courtesy of FORD MOTOR COMPANY
