Transmission Fluid Pump Idler Gear: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

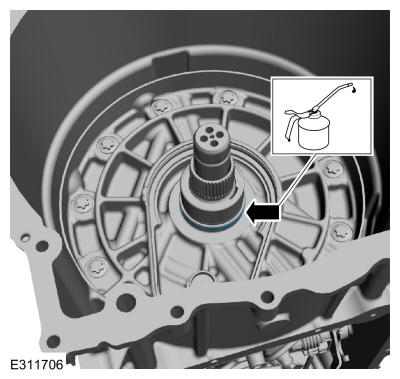

  1. Install the new stator support seal on the front support. Lubricate the stator support seal with petroleum jelly.
    GFD559684Courtesy of FORD MOTOR COMPANY
  2. Using the special tool and a press, install the new transmission fluid pump idler gear bearing. Use Special Service Tool: 307-736 Installer, Pump Drive Gear Bearing.Use the General Equipment: Hydraulic Press
    GFD559009Courtesy of FORD MOTOR COMPANY

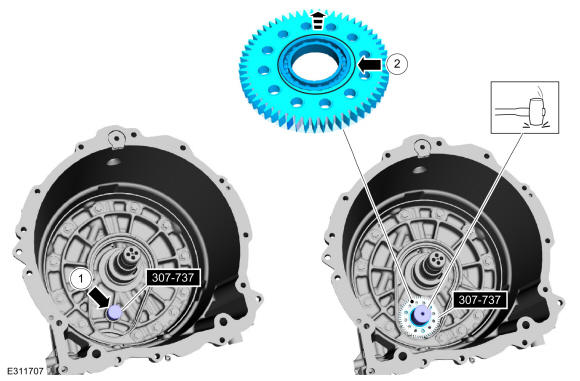

    1. Position the special tool on the front support. Use Special Service Tool: 307-737 Press Tool, Oil Pump Drive Idler Gear.
    2. NOTE: Install the transmission fluid pump idler gear with the grooved side up.
    3. Using the special tools and a dead blow hammer, install the new transmission fluid pump idler gear and bearing.
    GFD559685Courtesy of FORD MOTOR COMPANY
  4. Install the new transmission fluid pump drive gear with the flat side down.
    GFD559686Courtesy of FORD MOTOR COMPANY
  5. Install the front support cover by pressing down evenly by hand.
    GFD559687Courtesy of FORD MOTOR COMPANY
  6. NOTE: The front support cover snap ring ends are located in the cover alignment features.

    Install the front support cover bolt and the front support cover snap ring.

    Torque: 62 lb.in (7 Nm)

    GFD559678Courtesy of FORD MOTOR COMPANY
    1. Install the new transmission fluid pump driven gear and the retaining ring.
    2. Install the transmission fluid pump driven gear outer cover.
    GFD559017Courtesy of FORD MOTOR COMPANY
  8. Install the transmission fluid pump and the bolts.

    Torque: 71 lb.in (8 Nm)

    GFD558978Courtesy of FORD MOTOR COMPANY
  9. NOTE: Only install 68 mm length bolts or the transmission clutch and planetary container can be damaged and result in transmission failure.

    Loosely install the main control valve body.

    1. NOTE: Be sure the main control-to-case seal is attached to the main control.
    2. Align the guide pins on the main control valve body with the alignment holes in the transmission case.
    3. Align the TR sensor with the park pawl lock valve.
    4. Loosely install the 68 mm length main control-to-transmission case bolts.

    GFD559560Courtesy of FORD MOTOR COMPANY
  10. Tighten the bolts in the sequence shown.

    Torque: 89 lb.in (10 Nm)

    GFD559561Courtesy of FORD MOTOR COMPANY
  11. Remove the bolt and allow the park override lever to return to the normal operating position.
    GFD559020Courtesy of FORD MOTOR COMPANY
  12. Connect the main control main electrical connector.
    GFD559535Courtesy of FORD MOTOR COMPANY
  13. Install the new transmission fluid auxiliary pump filter seal.
    GFD559563Courtesy of FORD MOTOR COMPANY
  14. Install the new filter seal in the pump.
    GFD559021Courtesy of FORD MOTOR COMPANY
  15. NOTE: If the bolts are installed in the wrong locations, transmission damage will occur.
    NOTE: Use a 10ep Torx Plus® socket to install the bolts.

    Install the new filter and the bolts in the correct locations.

    1. 73 mm bolt
    2. 25 mm bolt

    • Torq: 97 lb.in (11 Nm)ue

    GFD559531Courtesy of FORD MOTOR COMPANY
  16. Install the new hybrid drive unit feed tube seals.
    GFD559564Courtesy of FORD MOTOR COMPANY
  17. NOTE: The transmission fluid pan gasket can be reused if not damaged.

    Install the fluid pan gasket and seals.

    1. Transmission fluid pan gasket
    2. Transmission fluid pan to transmission case seals

    GFD559565Courtesy of FORD MOTOR COMPANY
  18. Install the transmission fluid pan and tighten the bolts in a crisscross pattern.

    1. Studbolts

      Torque: 106 lb.in (12 Nm)

    2. Bolts

      Torque: 89 lb.in (10 Nm)

    GFD559528Courtesy of FORD MOTOR COMPANY
  19. Install the transmission fluid level indicator.
    GFD558991Courtesy of FORD MOTOR COMPANY
  20. Install the hybrid drive unit gasket.
    GFD559525Courtesy of FORD MOTOR COMPANY
  21. If necessary, position the dowl pins flush with the housing.
    GFD559558Courtesy of FORD MOTOR COMPANY
  22. Using a floor crane and the special tools, install the hybrid drive unit. Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer., 307-651-03 Lift Fixture Adapter (MHT).Use the General Equipment: Floor Crane
    GFD559523Courtesy of FORD MOTOR COMPANY
  23. Install the long hybrid drive unit bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD559521Courtesy of FORD MOTOR COMPANY
  24. Install the short hybrid drive unit bolt.

    Torque: 18 lb.ft (25 Nm)

    GFD559520Courtesy of FORD MOTOR COMPANY
  25. Install the rear hybrid drive unit bolts.

    Torque: 18 lb.ft (25 Nm)

    GFD559519Courtesy of FORD MOTOR COMPANY
  26. Install the transmission assembly. Refer to: Transmission .
