Transmission Fluid Auxiliary Pump: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the main control valve body. Refer to: Main Control Valve Body .
-
NOTE: The hybrid drive unit feed tube seals and the transmission fluid auxiliary pump filter seal can be reused if not damaged.
Remove the hybrid drive unit feed tube seals and the transmission fluid auxiliary pump filter seal.

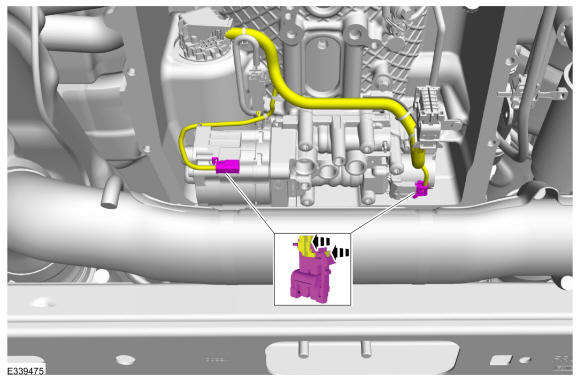

- Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connectors.
- Remove the bolts and the transmission fluid auxiliary pump.
- Remove the transmission fluid auxiliary pump gasket.
- Clean and inspect the transmission fluid auxiliary pump mounting surface.
