Shift Solenoids (SS): Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All Solenoids

Remove the transmission fluid pan gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .
LPC (line pressure control) and TCC (torque converter clutch) Solenoids
1. Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.
2. Disconnect the internal wiring harness retainer.
Courtesy of FORD MOTOR COMPANY

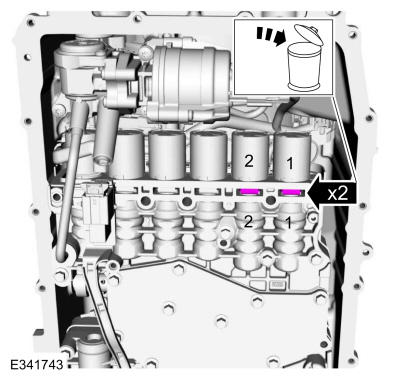

Remove and discard the bolts and remove the solenoid retaining plate.

Courtesy of FORD MOTOR COMPANY
Remove the solenoid(s) from the main control valve body.
1. LPC solenoid (7G383)
2. TCC solenoid (7G136)
Courtesy of FORD MOTOR COMPANY

Engine Disconnect Clutch Solenoid
Remove the transmission fluid auxiliary pump. Refer to: Transmission Fluid Auxiliary Pump .
Remove the transmission fluid auxiliary pump gasket.

Courtesy of FORD MOTOR COMPANY
Remove the engine disconnect clutch solenoid retainer.

Courtesy of FORD MOTOR COMPANY
Remove the engine disconnect clutch solenoid.

Courtesy of FORD MOTOR COMPANY

Solenoids A through F
Remove the main control valve body. Refer to: Main Control Valve Body .
Remove the bolts and the shift solenoid retaining plate.

Courtesy of FORD MOTOR COMPANY
If replacing more then one solenoid, number the solenoids and number the main control valve body solenoid ports to correspond to the solenoid.

Courtesy of FORD MOTOR COMPANY
Remove and discard the shift solenoid retainer(s).

Courtesy of FORD MOTOR COMPANY
Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector(s).

Courtesy of FORD MOTOR COMPANY
Remove the solenoid(s) from the main control valve body.
1. SSA (7J136)
2. SSF (7J136)
3. SSC (7J136)
4. SSB (7J136)
5. SSE (7J136)
6. SSD (7J136)

Courtesy of FORD MOTOR COMPANY
