Park Lock Pawl Solenoid: Removal
WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the transmission fluid pan, gasket and filter. Refer to: Transmission Fluid Pan, Gasket and Filter .

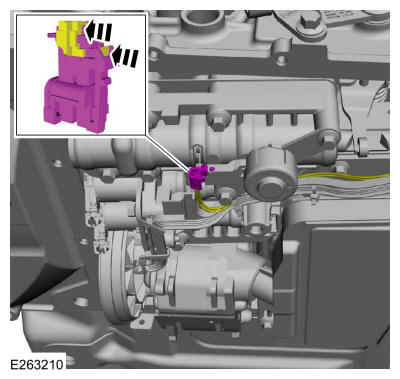

- Slide the plastic lock to the unlock position. While pressing the plastic tab, disconnect the electrical connector.
- Remove the bolts and the park lock pawl solenoid.
