Output Shaft Speed (OSS) Sensor: Removal

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following items:

    1. Refer to: Main Control Valve Body .
    2. Refer to: Transmission Fluid Auxiliary Pump .

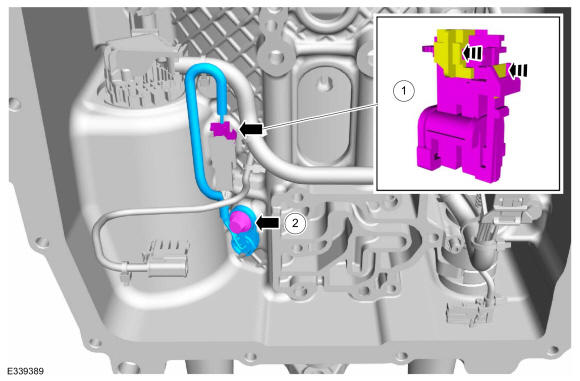

  2. Remove the OSS sensor.

    1. Slide the plastic lock to the unlocked position. While pressing the plastic tab, disconnect the electrical connector.
    2. Remove the bolt and the OSS sensor.

GFD559588Courtesy of FORD MOTOR COMPANY
