Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different car, the 2021 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

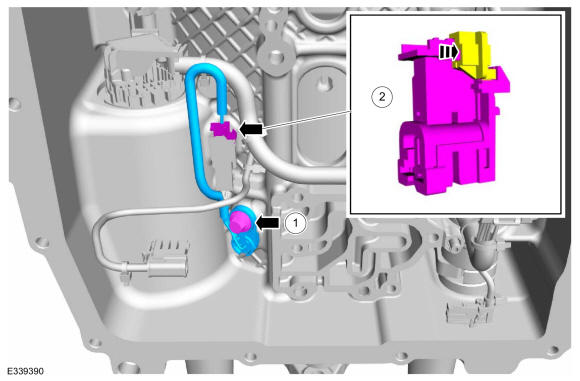

  1. Install the OSS sensor.

    1. Install the OSS sensor bolt.

      Torque: 62 lb.in (7 Nm)

    2. Connect the electrical connector. Slide the plastic lock to the locked position.

    GFD559589Courtesy of FORD MOTOR COMPANY
  2. Install the following items:

    1. Refer to: Transmission Fluid Auxiliary Pump .
    2. Refer to: Main Control Valve Body .
